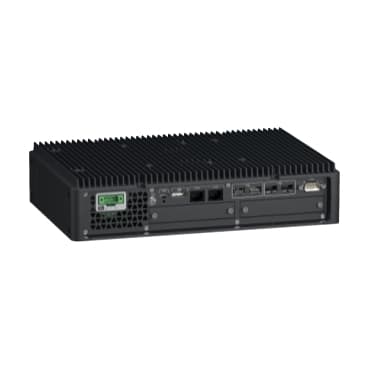

Product Model
HMIP65BCTO
Selling Points
- 1Advanced Industrial Design: Optimized for automation engineers with a smart design that shortens implementation time and enhances ease of maintenance.
- 2Robust Connectivity: Equipped with 2 RJ45 Ethernet ports, 1 DisplayPort, 1 COM1 serial link, and multiple USB ports for seamless integration.
- 3High-Performance Processor: Intel Core i5-8365UE processor with turbo boost at 4.1 GHz, providing efficient performance for demanding tasks.
- 4Enhanced Security: Pre-installed TPM2.0 module and secure password boot via UEFI for robust cybersecurity measures.
- 5Modular Expansion Slots: Supports up to 2 M.2 SSDs, 2 2.5-inch HDD/SSDs, and optional PCI/PCIe slots for flexible expansion options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony P6 | Product or Component Type | Modular box PC |
Device short name | HMP65 | Operating system | Windows 10 IoT Enterprise 64 bitmulti-language |
Video controller type | Intel UHD Graphics 620 | Range compatibility | FP5000<br />PS6000<br />FP6000 |
Number of slots | 2 slot(s) for optional interfaceslot-IN | Inrush current | 30 A |
Type of cooling | Fanless<br />Fan with HDD | Width | 11.4 in (290 mm) |
Height | 7.7 in (195 mm) | Net Weight | 7.7 lb(US) (3.5 kg) |
Product certifications | CE<br />CULus<br />CSA<br />UL 61010-2-201<br />RCM<br />UKCA<br />DNV (DC model without HDD/fan/ EtherCAT card/22" wide display with expansion slot)<br />ATEX zone 22 dust<br />ATEX zone 2<br />CULus Class 1 Division 2 (without DIO option)<br />IECEx zone 2 (DC model, front USB cover must be locked with screw)<br />IECEx zone 22 (DC model, front USB cover must be locked with screw) | NEMA degree of protection | NEMA 4X/13 |
Ambient air temperature for operation | 32…131 °F (0…55 °C) wall mounting without HDD) side EN/IEC 60068-2-2<br />32…131 °F (0…55 °C) book mounting without HDD) side<br />32…122 °F (0…50 °C) flat mounting without HDD) top<br />32…122 °F (0…50 °C) book mounting without HDD) top<br />32…113 °F (0…45 °C) wall mounting with HDD and fan kit) side<br />32…113 °F (0…45 °C) book mounting with HDD and fan kit) side<br />32…113 °F (0…45 °C) flat mounting with HDD and fan kit) top<br />32…113 °F (0…45 °C) book mounting with HDD and fan kit) top<br />32…131 °F (0…55 °C) panel without HDD) landscape<br />32…122 °F (0…50 °C) panel without HDD) portrait<br />32…113 °F (0…45 °C) panel with HDD and fan kit) landscape<br />32…113 °F (0…45 °C) panel with HDD and fan kit) portrait | Pollution degree | 2 |
Operating altitude | 6561.68 ft (2000 m) | Shock resistance | 147 m/s² X, Y, Z directions for 3 times IEC 61131-2 |
Specifications may be subject to change without notice
