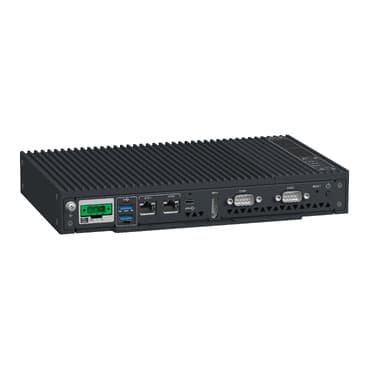

Product Model
HMIP6ABB0NA0DNAN00
Selling Points
- 1Industrial-grade performance: Equipped with Intel Atom x6211E processor for robust industrial use.
- 2Multiple I/O interfaces: Includes 2 Industrial Ethernet, 2 RS-232, 2 RS-422, 2 RS-485, and 2 USB ports.
- 3Compact design: Measures 250mm wide, 165mm high, and 37mm deep for easy integration.
- 4IP20 protection: Offers IP20 protection for safe operation in various environments.
- 5Versatile mounting options: Supports wall and direct mounting for flexible installation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony P6 | Product or Component Type | Modular box PC |
Device short name | HMIP6A | Operating system | Windows 10 IoT Enterprise 64 bitmulti-language |
Software package | Node-RED preinstalled<br />EcoStruxure Machine SCADA Expert run time (on configured offer)<br />EcoStruxure Operator Terminal Expert run time (on configured offer)<br />AVEVA system platform installer (on configured offer)<br />EcoStruxure secure connect (license to be purchased seperately)<br />Stratus EverRun (exchange partner) (license to be purchased seperately)<br />Trellix (license to be purchased seperately) | Video controller type | Intel UHD Graphics for 10th Gen |
Backlight lifespan | 50000 hours at 77 °F (25 °C) | Number of slots | 1 slot(s) for optional interface |
[Us] rated supply voltage | 12...24 V DC power supply | Supply voltage limits | 9…36 V |
Power consumption in W | 45 W | Inrush current | 30 A |
Type of cooling | Fanless | Device mounting | Panel mounting |
Width | 9.8 in (250 mm) | Depth | 1.5 in (37 mm) |
Height | 6.5 in (165 mm) | Net Weight | 3.7 lb(US) (1.7 kg) |
Standards | EN/IEC 61000-4-2<br />IEC 61000-4-4<br />FCC part 15<br />UL 61010-2-201 | Product certifications | CE<br />CULus<br />CSA<br />UL 61010-2-201<br />RCM<br />UKCA |
IP degree of protection | IP20 conforming to IEC 61131-2 | NEMA degree of protection | NEMA 4X/13 |
Ambient air temperature for operation | 32…131 °F (0…55 °C) wall mounting side<br />32…131 °F (0…55 °C) book mounting side<br />32…131 °F (0…55 °C) flat mounting top | Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
Relative humidity | 10…90 % non-condensing | Pollution degree | 2 |
Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 9.8 m/s² 9…150 Hz) - M.2 SSD - IEC 61131-2 |
Shock resistance | 147 m/s² X, Y, Z directions for 3 times | Electromagnetic compatibility | Electrostatic discharge immunity test 6 kV contact discharge IEC 61000-4-2 level 3 |
Display resolution | 4096 x 2304 pixels at 60 Hz | Integrated connection type | Display port 1 DP bottom DP++<br />Ethernet 2 RJ45 10 BASE-T/100 BASE-TX/1000 BASE-T 10/100/1000 Mbps bottom IEEE 1588 supported<br />COM serial link 2 plug SUB-D 9 RS232C/RS422/RS485 2400...115200 bps bottom non-isolated<br />USB 3.1 port 2 USB type A 5 Gbit/s bottom<br />USB 3.0 port 1 USB type C 5 Gbit/s bottom<br />TPM (Trusted Platform Module version 2) cyber security - hardware encryption TPM module by default motherboard |
Processor name | Intel Atom x6211E 1.3 GHz turbo boost at 3.0 GHz |
Specifications may be subject to change without notice
