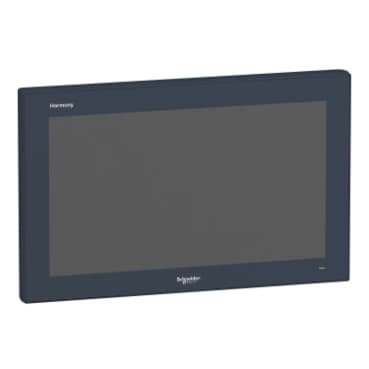

Product Model
HMIPEPS952D1801
Selling Points
- 1Multi-Touch Screen: Enjoy intuitive interaction with the 18.5-inch multi-touch screen.
- 2High-Performance SSD: Equipped with a 128 GB SSD for fast data access and reliability.
- 3Industrial-Grade Design: Built with IP65 protection and 7H hardness for durability in harsh environments.
- 4Windows 10 Compatibility: Run Windows 10 IoT Enterprise for seamless integration and advanced functionality.
- 5Configurable Connectivity: Features 1 RS232, 1 USB 2.0, and 2 Ethernet ports for versatile connectivity options.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Multi-touch screen |
Processor name | Intel Core i3 4010U 1.7 GHz | Free slots | 1 Internal SATA HDD/SSD |
Display size | 18.5 inch | Display colour | 16777216 colors |
Luminance | 27.9 fc (300 cd/m²) | Pixel resolution | 4096 x 4096 |
Operating system | Windows 10 IoT Enterprise 64 bitmulti-language | Software package | EcoStruxture secure connect advisor annual subscription cyber security license not included<br />EcoStruxure Operator Terminal Expert run time HMI license not included<br />EcoStruxure machine SCADA expert run time HMI/SCADA on configured offer only<br />EcoStruxure augmented operator advisor server augmented operator license not included<br />Vijeo Citect DVD SCADA license not included |
Number of points | 5 | Terminal type | Touchscreen display |
Data storage equipment | 128 GB back side SSD 1500000 h | Aspect ratio | 16:9 |
Display Type | LED<br />Colour TFT LCD | Display Resolution | 1366 x 768 pixels WXGA |
Backlight lifespan | 50000 hours | View angle horizontal x vertical | 160 x 170° |
Touch panel | Multi-touch projected capactive technology (PCT) | Memory type | 8 GB RAM DDR3 internal |
Type of cooling | Fanless<br />Passive | Watchdog timer | 1…255 ms |
Integrated connection type | 1 RS232 - M12 male <= 115.2 kbits/s)<br />1 USB 2.0 type A - M12 female 1.5/12/480 Mbit/s)<br />2 Ethernet port - M12 female 10/100/1000 Mbit/s) | Number of slots | 1 mini PCI Express full-size |
[Us] rated supply voltage | 24 V DC +/- 20 % power supply | Power consumption in W | 28…60 W |
Mechanical robustness | Hardness anti-scratch 7H | Local signalling | buzzer<br /> for on LED (green)<br /> for stand-by LED (orange) |
Function Available | Operate with water on screen | Width | 19.2 in (488 mm) |
Height | 12.2 in (309 mm) | Depth | 2.6 in (65 mm) |
Net Weight | 17.6 lb(US) (8 kg) | Main type | Performance |
IP degree of protection | IP65 all sides: | Product certifications | CE<br />C-tick<br />AS/NZS<br />CCC<br />EAC<br />RCM |
Standards | CISPR 11<br />CSA C22.2 No. 60950<br />FCC Part 15 class A<br />IEC 60950<br />IEC 61000-6-2<br />IEC 61000-6-4<br />UL 60950 | Directives | 2004/108/EC - electromagnetic compatibility<br />2006/95/EC - low voltage directive |
Pollution degree | 2 | Ambient air temperature for operation | 32…131 °F (0…55 °C) SSD<br />32…113 °F (0…45 °C) HDD |
Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative Humidity | 10…95 % non-condensing |
Operating altitude | 6561.68 ft (2000 m) | Vibration resistance | 1 gn 5…500 Hz) HDD<br />2 gn 5…500 Hz) SSD |
Specifications may be subject to change without notice
