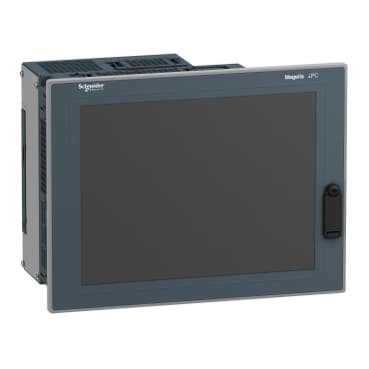

schneider HMIPPF6A2701

Selling Points

  • 1High-Performance Panel PC: Equipped with an Intel i3 dual-core processor for efficient operation.
  • 2Fanless Design: Ensures reliable performance in harsh environments without the need for cooling fans.
  • 3Robust Connectivity: Includes 2 Ethernet ports, 2 USB 3.0 ports, and 1 HDMI port for seamless integration.
  • 4Long-Lasting Storage: Features an SSD flash disk with a 5-year warranty and 2 million hours MTBF.
  • 5Durable Construction: Built with die-cast aluminum and IP65 front panel protection for enhanced durability.
Product Details
HMIPPF6A2701
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony iPC
Product or Component Type
PC panel
Processor name
Intel i3 dual core 3rd generation 3217UE cache 3 MB
Chipset type
Intel BD82QM77
Display size
12 inch
Display colour
16 million colours
Luminance
34.8 fc (375 cd/m²)
Drive type
DVD-RW
Video controller type
Intel HD Graphics 4000
Operating system
Windows 7 64 bits Ultimatemulti-language
Software package
Vijeo Designer run time demo
Bezel material
Aluminium alloy
Terminal type
Touchscreen display
Data storage equipment
>= 60 GB Flash disk SSD MLC 2000000 h
Display Type
Active matrix colour TFT LCD with LED backlight
Display Resolution
1024 x 768 pixels XGA
Backlight lifespan
50000 hours 77 °F (25 °C)
View angle horizontal x vertical
80 x 80°
Touch panel
Analogue resistive
Memory type
4 GB, expandable to 16 GB RAM DDR3
Type of cooling
Fanless
Integrated connection type
2 Ethernet port - RJ45<br /> COM1 serial link - male SUB-D 9 - RS232C 115 kbit/s)bottom<br /> COM2 serial link - male SUB-D 9 - RS232C 115 kbit/s)bottom<br /> DVI video portbottom<br /> audio output - mini-jack<br /> USB 2.0 type A 480 Mbit/s)front panel<br />4 USB 3.0 type A 5 Gbit/s)bottom
Port Ethernet
10BASE-T/100BASE-T/1000BASE-T
Number of slots
1 PCI 33 MHz<br />1 PCI express 2 Gbit/s
[Us] rated supply voltage
100...240 V AC power supply
Network frequency
45...65 Hz
Line Rated Current
0.6…2 A
Inrush current
20 A
Material
Die cast aluminium
Display material
Polyethylene sheet
Fixing mode
Enclosure door by fixing kit fasteners included)
Type of Installation
Indoor
Control type
ON/OFF push-button equipment ON and OFF)<br />Push-button reset)
Local signalling
for power LED (multi-colour)<br /> for accessing Flash disk SSD (DISK) LED (orange)<br /> for link status LED<br /> for RUN LED
Function Available
RAID (Redundant Array of Independent Disks)
Width
12.3 in (313 mm)
Height
9.4 in (239 mm)
Depth
5.3 in (135 mm)
cut-out dimensions
301.5 (+ 1/- 0) x 227.5 (+ 1/- 0) x 1.6...9 mm
Net Weight
9.3 lb(US) (4.2 kg)
Main type
Performance
IP degree of protection
IP65 front panel: conforming to EN/IEC 60529
NEMA degree of protection
NEMA 4X front panel
Product certifications
CULus 508<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 UL 1604<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />GOST<br />CE<br />C-tick
Pollution degree
2 EN/IEC 61131-2
Electromagnetic compatibility
Immunity to electromagnetic emissions, class A EN 55022<br />Immunity to electromagnetic emissions, class A EN 55011<br />Immunity to high frequency interference EN/IEC 61131-2<br />Immunity to high frequency interference EN/IEC 61000-4-x
Ambient air temperature for operation
32…122 °F (0…50 °C) vertical installation UL 508<br />32…113 °F (0…45 °C) vertical installation when using Gigabit Ethernet with HDD storage device UL 508<br />32…122 °F (0…50 °C) vertical installation IEC 61132-2<br />32…113 °F (0…45 °C) vertical installation when using Gigabit Ethernet with HDD storage device IEC 61132-2
Ambient air temperature for storage
-4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na
Relative Humidity
10…85 % non-condensing EN/IEC 60068-2-78<br />10…85 % non-condensing EN/IEC 60068-2-30
Operating altitude
6561.68 ft (2000 m) EN/IEC 61131-2
Vibration resistance
1.75 mm 2…9 Hz) continuous EN/IEC 60068-2-6 Fc<br />3.5 mm 2…9 Hz) intermittently EN/IEC 60068-2-6 Fc<br />0.5 gn 9…200 Hz) continuous EN/IEC 60068-2-6 Fc<br />1 gn 9…200 Hz) intermittently EN/IEC 60068-2-6 Fc<br />1 mm 3…13.2 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.7 gn 13.2…100 Hz) continuous EN/IEC 60068-2-6 Fc
Shock resistance
15 gn 11 ms IEC 60068-2-27, Ea tests

Specifications may be subject to change without notice
