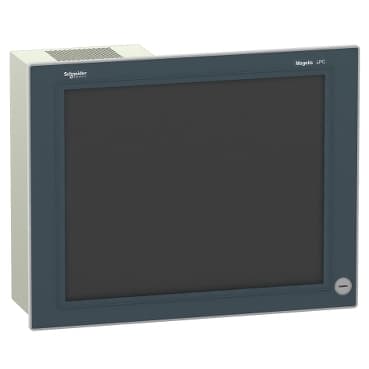

Product Model
HMIPPF9A2701
Selling Points
- 1High-Performance Processor: Equipped with a Core 2 Duo P8400 processor at 2.26 GHz.
- 2Advanced Display: 19'' active matrix color TFT LCD with LED backlight and 16 million colors.
- 3Robust Storage: Includes a >=60 GB SSD MLC with 2,000,000 hours MTBF.
- 4Versatile Connectivity: 2 Ethernet ports, DVI-I video port, and 2x RS232C serial links.
- 5Durable Design: IP65 front panel and NEMA 4X indoor protection for harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | PC panel |
Processor name | Core 2 Duo P8400 2.26 GHz cache 6 MB | Chipset type | Intel GM45 1.066 GHz |
Display size | 19 inch | Display colour | 16 million colours |
Luminance | 27.9 fc (300 cd/m²) | Drive type | DVD-RW |
Video controller type | Intel Graphics Media Accelerator (GMA) 4500MHD, 384 MB | Operating system | Windows 7 64 bits Ultimatemulti-language |
Software package | Vijeo Designer run time demo | Bezel material | Aluminium alloy |
Terminal type | Touchscreen display | Data storage equipment | >= 60 GB Flash disk SSD MLC 2000000 h |
Display Type | Active matrix colour TFT LCD with LED backlight | Display Resolution | 1280 x 1024 pixels SXGA |
View angle horizontal x vertical | 160 x 100° | Touch panel | Analogue resistive |
Memory type | 512 KB SRAM<br />4 GB RAM DDR3 | Type of cooling | Fan |
Integrated connection type | 2 Ethernet TCP/IP - RJ45<br /> DVI-I video port - DVI-I<br /> COM1 serial link - male SUB-D 9 - RS232C 115 kbit/s)<br /> COM2 serial link - male SUB-D 9 - RS232C 115 kbit/s)<br /> USB 2.0 type A 480 Mbit/s)front panel<br /> USB 2.0 type A 480 Mbit/s)top panel | Port Ethernet | 10BASE-T/100BASE-T/1000BASE-T |
Number of slots | 1 PCI<br />1 PCI express 4x | [Us] rated supply voltage | 100...240 V AC power supply |
Supply voltage limits | 85…265 V | Network frequency | 50-60 Hz<br />47...63 Hz |
Line Rated Current | 1.6 A | Inrush current | 40 A |
Power consumption in W | 130 W | Material | Treated steel |
Display material | Polyethylene sheet | Fixing mode | Enclosure door by fixing kit fasteners included)<br />Panel by fixing kit fasteners included) |
Type of Installation | Indoor | Control type | ON/OFF push-button equipment ON and OFF)<br />Push-button reset) |
Local signalling | for power LED (multi-colour)<br /> for accessing Flash disk SSD (DISK) LED (yellow) | Width | 18.9 in (480 mm) |
Height | 15.0 in (380 mm) | Depth | 6.6 in (168 mm) |
cut-out dimensions | 459.5 (+/- 0.5) x 359.5 (+/- 0.5) x 1.6...10 mm | Net Weight | 36.51 lb(US) (16.56 kg) |
Main type | Performance | IP degree of protection | IP65 front panel: conforming to EN/IEC 60529 |
NEMA degree of protection | NEMA 4X front panel | Product certifications | CULus 508<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 UL 1604<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />GOST<br />CE<br />C-tick |
Pollution degree | 2 EN/IEC 61131-2 | Electromagnetic compatibility | Immunity to electromagnetic emissions, class A EN 55022<br />Immunity to electromagnetic emissions, class A EN 55011<br />Immunity to high frequency interference EN/IEC 61131-2<br />Immunity to high frequency interference EN/IEC 61000-4-x |
Ambient air temperature for operation | 32…122 °F (0…50 °C) vertical installation UL 508<br />32…122 °F (0…50 °C) vertical installation EN/IEC 61131-2<br />32.0000000000…113.0000000000 °F (0…45 °C) vertical installation when using RAID option EN/IEC 61131-2<br />32.0000000000…113.0000000000 °F (0…45 °C) vertical installation when using RAID option UL 508<br />41.0000000000…113.0000000000 °F (5…45 °C) vertical installation when using DVD writer EN/IEC 61131-2<br />41.0000000000…113.0000000000 °F (5…45 °C) vertical installation when using DVD writer UL 508 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na |
Relative Humidity | 10…85 % EN/IEC 60068-2-78<br />10…85 % EN/IEC 60068-2-30 | Operating altitude | 6561.68 ft (2000 m) EN/IEC 61131-2 |
Vibration resistance | 1.75 mm 2…9 Hz) continuous EN/IEC 60068-2-6 Fc<br />3.5 mm 2…9 Hz) intermittently EN/IEC 60068-2-6 Fc<br />0.5 gn 9…200 Hz) continuous EN/IEC 60068-2-6 Fc<br />1 gn 9…200 Hz) intermittently EN/IEC 60068-2-6 Fc<br />1 mm 3…13.2 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.7 gn 13.2…100 Hz) continuous EN/IEC 60068-2-6 Fc | Shock resistance | 15 gn 11 ms IEC 60068-2-27, Ea tests |
Specifications may be subject to change without notice
