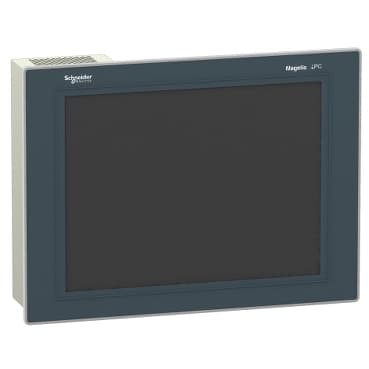

schneider HMIPPH7A0701

Selling Points

  • 1High-Performance Panel PC: Equipped with a 15'' display and Intel Core 2 Duo P8400 processor.
  • 2Robust Storage: Features a 500 GB enterprise hard disk for reliable data storage.
  • 3Touchscreen Interface: Includes an active matrix color TFT LCD with LED backlight and analog resistive touch panel.
  • 4Versatile Connectivity: Offers DVI-I video port, Ethernet TCP/IP, and USB 2.0 ports for seamless integration.
  • 5Durable Design: Built with aluminum alloy bezel and designed to withstand temperatures from -20°C to 60°C.
Product Details
HMIPPH7A0701
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony iPC
Product or Component Type
PC panel
Processor name
Core 2 Duo P8400 2.26 GHz cache 6 MB
Chipset type
Intel GM45 1.066 GHz
Display size
15 inch
Display colour
16 million colours
Luminance
32.5 fc (350 cd/m²)
Video controller type
Intel Graphics Media Accelerator (GMA) 4500MHD, 384 MB
Operating system
Windows 7 64 bits Ultimatemulti-language
Software package
Vijeo Designer run time demo
Bezel material
Aluminium alloy
Terminal type
Touchscreen display
Data storage equipment
500 GB enterprise hard disk
Display Type
Active matrix colour TFT LCD with LED backlight
Display Resolution
1024 x 768 pixels XGA
View angle horizontal x vertical
160 x 100°
Touch panel
Analogue resistive
Memory type
512 KB SRAM<br />4 GB RAM DDR3
Type of cooling
Fan
Integrated connection type
2 Ethernet TCP/IP - RJ45<br /> DVI-I video port - DVI-I<br /> COM1 serial link - male SUB-D 9 - RS232C 115 kbauds)<br /> COM2 serial link - male SUB-D 9 - RS232C 115 kbauds)<br /> USB 2.0 type A 480 Mbit/s)front panel<br />4 USB 2.0 type A 480 Mbit/s)top panel
[Us] rated supply voltage
100...240 V AC power supply
Supply voltage limits
85…265 V
Network frequency
50-60 Hz<br />47...63 Hz
Line Rated Current
1.6 A
Inrush current
40 A
Power consumption in W
130 W
Display material
Polyethylene sheet
Fixing mode
Enclosure door by fixing kit fasteners included)<br />Panel by fixing kit fasteners included)
Control type
ON/OFF push-button equipment ON and OFF)<br />Push-button reset)
Local signalling
for power multi-colour LED<br /> for accessing hard disk (DISK) LED
Width
15.8 in (402 mm)
Height
11.9 in (301 mm)
Depth
4.6 in (118 mm)
Net Weight
23.28 lb(US) (10.56 kg)
Main type
Performance
IP degree of protection
IP65 conforming to EN/IEC 61131-2
NEMA degree of protection
NEMA 4X
Product certifications
CULus 508<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 UL 1604<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />GOST<br />CE<br />C-tick
Pollution degree
2 EN/IEC 61131-2
Electromagnetic compatibility
Immunity to high frequency interference EN/IEC 61131-2<br />Immunity to high frequency interference EN/IEC 61000-4-x<br />Immunity to electromagnetic emissions EN 55022 Class A<br />Immunity to electromagnetic emissions EN 55011 class A
Ambient air temperature for operation
32…122 °F (0…50 °C) vertical installation UL 508<br />32…113 °F (0…45 °C) vertical installation when using Gigabit Ethernet with HDD storage device UL 508<br />32…122 °F (0…50 °C) vertical installation EN/IEC 61131-2<br />32…113 °F (0…45 °C) vertical installation when using Gigabit Ethernet with HDD storage device EN/IEC 61131-2
Ambient air temperature for storage
-4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na
Relative Humidity
10…85 % EN/IEC 60068-2-78<br />10…85 % EN/IEC 60068-2-30 Db
Operating altitude
6561.68 ft (2000 m) EN/IEC 61131-2
Vibration resistance
1 mm 3…13.2 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.7 gn 13.2…100 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.125 gn 5…100 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.250 gn 5…100 Hz) intermittently EN/IEC 60068-2-6 Fc
Shock resistance
15 gn 11 ms IEC 60068-2-27, Ea tests

Specifications may be subject to change without notice
