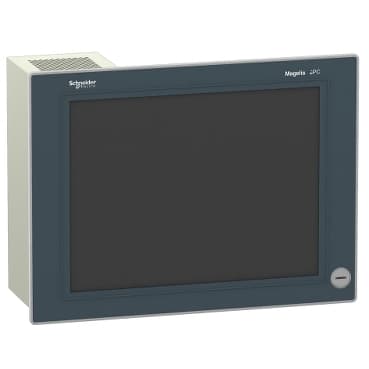

Product Model
HMIPPH7A2701
Selling Points
- 1High-Performance Core 2 Duo Processor: Equipped with a 2.26 GHz Core 2 Duo P8400 processor for efficient performance.
- 2Large Storage Capacity: Includes a 500 GB enterprise hard disk for ample storage needs.
- 3Touchscreen Display: Features an active matrix color TFT LCD with LED backlight and a touch panel for intuitive interaction.
- 4Multiple I/O Ports: Offers 2 Ethernet TCP/IP ports, DVI-I video port, and 4 USB 2.0 ports for versatile connectivity.
- 5Durable Design: Built with an aluminum alloy bezel and IP65 protection, ensuring reliability in harsh environments.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | PC panel |
Processor name | Core 2 Duo P8400 2.26 GHz cache 6 MB | Chipset type | Intel GM45 1.066 GHz |
Display size | 15 inch | Display colour | 16 million colours |
Luminance | 32.5 fc (350 cd/m²) | Drive type | DVD-RW |
Video controller type | Intel Graphics Media Accelerator (GMA) 4500MHD, 384 MB | Operating system | Windows 7 64 bits Ultimatemulti-language |
Software package | Vijeo Designer run time demo | Bezel material | Aluminium alloy |
Terminal type | Touchscreen display | Data storage equipment | 500 GB enterprise hard disk |
Display Type | Active matrix colour TFT LCD with LED backlight | Display Resolution | 1024 x 768 pixels XGA |
View angle horizontal x vertical | 160 x 100° | Touch panel | Analogue resistive |
Memory type | 512 KB SRAM<br />4 GB RAM DDR3 | Type of cooling | Fan |
Integrated connection type | 2 Ethernet TCP/IP - RJ45<br /> DVI-I video port - DVI-I<br /> COM1 serial link - male SUB-D 9 - RS232C 115 kbauds)<br /> COM2 serial link - male SUB-D 9 - RS232C 115 kbauds)<br /> USB 2.0 type A 480 Mbit/s)front panel<br />4 USB 2.0 type A 480 Mbit/s)top panel | Number of slots | 1 PCI<br />1 PCI express 4x |
[Us] rated supply voltage | 100...240 V AC power supply | Supply voltage limits | 85…265 V |
Network frequency | 50-60 Hz<br />47...63 Hz | Line Rated Current | 1.6 A |
Inrush current | 40 A | Power consumption in W | 130 W |
Display material | Polyethylene sheet | Fixing mode | Enclosure door by fixing kit fasteners included)<br />Panel by fixing kit fasteners included) |
Control type | ON/OFF push-button equipment ON and OFF)<br />Push-button reset) | Local signalling | for power multi-colour LED<br /> for accessing hard disk (DISK) LED |
Width | 15.8 in (402 mm) | Height | 11.9 in (301 mm) |
Depth | 6.6 in (168 mm) | Net Weight | 26.28 lb(US) (11.92 kg) |
Main type | Performance | IP degree of protection | IP65 conforming to EN/IEC 61131-2 |
NEMA degree of protection | NEMA 4X | Product certifications | CULus 508<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 UL 1604<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />GOST<br />CE<br />C-tick |
Pollution degree | 2 EN/IEC 61131-2 | Electromagnetic compatibility | Immunity to high frequency interference EN/IEC 61131-2<br />Immunity to high frequency interference EN/IEC 61000-4-x<br />Immunity to electromagnetic emissions EN 55022 Class A<br />Immunity to electromagnetic emissions EN 55011 class A |
Ambient air temperature for operation | 32…122 °F (0…50 °C) vertical installation UL 508<br />32…113 °F (0…45 °C) vertical installation when using Gigabit Ethernet with HDD storage device UL 508<br />32…122 °F (0…50 °C) vertical installation EN/IEC 61131-2<br />32.0000000000…113.0000000000 °F (0…45 °C) vertical installation when using RAID option EN/IEC 61131-2<br />32.0000000000…113.0000000000 °F (0…45 °C) vertical installation when using RAID option UL 508<br />41.0000000000…113.0000000000 °F (5…45 °C) vertical installation when using DVD writer EN/IEC 61131-2<br />41.0000000000…113.0000000000 °F (5…45 °C) vertical installation when using DVD writer UL 508<br />32…113 °F (0…45 °C) vertical installation when using Gigabit Ethernet with HDD storage device EN/IEC 61131-2 | Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na |
Relative Humidity | 10…85 % EN/IEC 60068-2-78<br />10…85 % EN/IEC 60068-2-30 Db | Operating altitude | 6561.68 ft (2000 m) EN/IEC 61131-2 |
Vibration resistance | 1 mm 3…13.2 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.7 gn 13.2…100 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.125 gn 5…100 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.250 gn 5…100 Hz) intermittently EN/IEC 60068-2-6 Fc | Shock resistance | 15 gn 11 ms IEC 60068-2-27, Ea tests |
Specifications may be subject to change without notice
