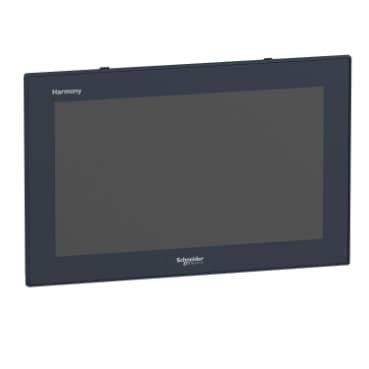

Product Model
HMIPSOH752D1801
Selling Points
- 1Multi-Touch Screen: Enjoy precise and intuitive control with a 15.6-inch multi-touch screen.
- 2High-Resolution Display: Experience vibrant visuals with 16777216 colors and a pixel resolution of 4096 x 4096.
- 3Robust Design: Built with IP66 protection and 7H hardness anti-scratch front for durability.
- 4Operational Flexibility: Supports operation up to +55 °C/131 °F and is suitable for various environments.
- 5Integration Capabilities: Seamlessly integrates with software applications like HMI EcoStruxure Operator Terminal Expert and third-party Windows software.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Multi-touch screen |
Processor Name | Intel Atom E3827 dual core at 1.75 GHz | Chipset type | Intel Atom SoC |
Free slots | 1 Internal SATA HDD/SSD<br />1 CFast | Display size | 15" wide multi-touch |
Display colour | 16777216 colors | Luminance | 27.9 fc (300 cd/m²) |
Pixel resolution | 4096 x 4096 | Video controller type | Intel HD Graphics |
Operating system | Windows 10 IoT Enterprise 64 bitmulti-language | Software package | EcoStruxture secure connect advisor annual subscription cyber security license not included<br />EcoStruxure Operator Terminal Expert run time HMI license not included<br />EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only<br />EcoStruxure augmented operator advisor server augmented operator license not included |
Number of points | 5 | Terminal type | Touchscreen display |
Memory type | 4 GB RAM DDR3 internal | Data storage equipment | 500 GB extension back side enterprise hard disk |
Aspect ratio | 16:9 | Display Type | LED<br />Colour TFT LCD |
Display Resolution | 1366 x 768 pixels WXGA | Backlight lifespan | 50000 hours |
View angle horizontal x vertical | 150 x 140° | Touch panel | Projected capacitive technology (PCT) |
Type of cooling | Passive<br />Fanless | Watchdog timer | 1…255 ms |
Number of slots | 1 mini PCI Express full-size | [Us] rated supply voltage | 24 V DC +/- 20 %<br />100...240 V AC with additional adaptor HMIYPSOMAC1 |
Line Rated Current | 1.7 A | Mechanical robustness | Hardness anti-scratch 7H |
Local signalling | buzzer<br /> for on LED (green)<br /> for stand-by LED (orange) | Function Available | Operate with water on screen |
Width | 16.5 in (419.7 mm) | Height | 10.6 in (269 mm) |
Depth | 3.4 in (86 mm) | cut-out dimensions | 412.4 (+/- 0.7) x 261.7 (+/- 0.4) |
Net Weight | 8.6 lb(US) (3.9 kg) | Main type | Optimised |
IP degree of protection | IP66 front panel: | Product Certifications | AS/NZS<br />C-tick<br />EAC<br />CE<br />RCM<br />CCC |
Standards | FCC Part 15 class A<br />CISPR 11<br />IEC 60950<br />CSA C22.2 No. 60950<br />IEC 61000-6-4<br />UL 60950<br />IEC 61000-6-2 | Directives | 2006/95/EC - low voltage directive<br />2004/108/EC - electromagnetic compatibility |
Pollution degree | 2 | Ambient air temperature for operation | 32…131 °F (0…55 °C) SSD<br />32…131 °F (0…55 °C) Cfast card<br />32…113 °F (0…45 °C) HDD<br />32…113 °F (0…45 °C) Mini PCIe |
Ambient air temperature for storage | -4…140 °F (-20…60 °C) | Relative Humidity | 10…95 % non-condensing |
Operating altitude | 2000 | Vibration resistance | 1 gn 5…500 Hz)HDD<br />2 gn 5…500 Hz)SSD<br />2 gn 5…500 Hz)Cfast card |
Specifications may be subject to change without notice
