Product Model

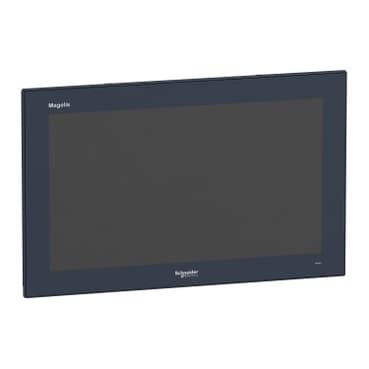

HMIPSPS952D1801
Selling Points
- 1High-Performance Intel Core i3 Processor: Equipped with an Intel Core i3 4010U processor at 1.7 GHz for efficient and reliable operation.
- 218.5-Inch Multi-Touch Display: Features a vibrant 18.5-inch display with 16777216 colors and 300 cd/m² luminance for clear visibility.
- 3Robust Industrial Design: Built with a durable 7H anti-scratch hardness and IP66 front panel protection, ensuring longevity in harsh environments.
- 4Windows 10 IoT Enterprise: Runs on Windows 10 IoT Enterprise 64-bit multi-language, providing a secure and efficient operating system.
- 5Configurable Storage Options: Supports up to 128 GB SSD with 1.5 million hours MTBF, offering flexible storage solutions for various applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | Multi-touch screen |
Processor Name | Intel Core i3 4010U at 1.7 GHz | Chipset type | Intel QM87 |
Free slots | 1 Internal SATA HDD/SSD<br />1 CFast | Display size | 19" wide multi-touch |
Display colour | 16777216 colors | Luminance | 27.9 fc (300 cd/m²) |
Pixel resolution | 4096 x 4096 | Video controller type | Intel HD Graphics 4400 |
Operating system | Windows 10 IoT Enterprise 64 bitmulti-language | Software package | EcoStruxture secure connect advisor annual subscription cyber security license not included<br />EcoStruxure Operator Terminal Expert run time HMI license not included<br />EcoStruxure Machine SCADA Expert run time HMI/SCADA on configured offer only<br />EcoStruxure augmented operator advisor server augmented operator license not included<br />Vijeo Citect DVD SCADA license not included |
Number of points | 5 | Terminal type | Touchscreen display |
Memory type | 8 GB RAM DDR3 internal | Data storage equipment | 128 GB back side SSD 1500000 h |
Aspect ratio | 16:9 | Display Type | Colour TFT LCD<br />LED |
Display Resolution | 1366 x 768 pixels WXGA | Backlight lifespan | 50000 hours |
View angle horizontal x vertical | 160 x 170° | Touch panel | Projected capacitive technology (PCT) |
Type of cooling | Passive<br />Fanless | Watchdog timer | 1…255 ms |
Number of slots | 1 mini PCI Express full-size | [Us] rated supply voltage | 24 V DC +/- 20 %<br />100...240 V AC with additional adaptor HMIYPSPMAC1 |
Power consumption in W | 28…60 W | Mechanical robustness | Hardness anti-scratch 7H |
Function Available | Operate with water on screen | Width | 19.2 in (488 mm) |
Height | 12.2 in (309 mm) | Depth | 2.2 in (56.7 mm) |
cut-out dimensions | 479.3 (+/- 1) x 300.3 (+/- 0.7) | Net Weight | 15.4 lb(US) (7 kg) |
Main type | Performance | IP degree of protection | IP66 front panel: |
Product Certifications | RCM<br />EAC<br />CCC<br />C-tick<br />CE<br />AS/NZS | Standards | UL 60950<br />CSA C22.2 No. 60950<br />IEC 61000-6-2<br />CISPR 11<br />FCC Part 15 class A<br />IEC 61000-6-4<br />IEC 60950 |
Directives | 2004/108/EC - electromagnetic compatibility<br />2006/95/EC - low voltage directive | Pollution degree | 2 |
Ambient air temperature for operation | 32…131 °F (0…55 °C) SSD<br />32…131 °F (0…55 °C) Cfast card<br />32…113 °F (0…45 °C) HDD | Ambient air temperature for storage | -4…140 °F (-20…60 °C) |
Relative Humidity | 10…95 % non-condensing | Operating altitude | 2000 |
Vibration resistance | 1 gn 5…500 Hz)HDD |
Specifications may be subject to change without notice
