Product Model

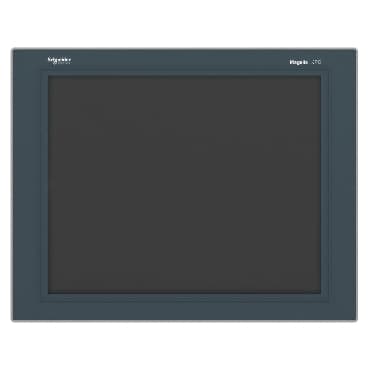

HMIPUC9D0E01
Selling Points
- 1Compact design with a 19-inch display for efficient use in industrial settings.
- 2Equipped with an Intel Atom N270 processor at 1.66 GHz for reliable performance.
- 3Fanless operation ensures quiet and reliable operation in control rooms.
- 4Robust IP65 protection against dust and water for harsh environments.
- 5Supports Windows Embedded Standard WES2009 for seamless integration into IT structures.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony iPC | Product or Component Type | PC panel |
Processor name | Atom N270 1.66 GHz L2 cache 512 KB | Chipset type | Intel 945GME 533 MHz |
Display size | 19 inch | Display colour | 16 million colours |
Luminance | 27.9 fc (300 cd/m²) | Video controller type | Intel Graphics Media Accelerator (GMA) 950, 224 MB |
Operating system | Windows Embedded Standard WES2009English<br />Windows Embedded Standard WES2009French<br />Windows Embedded Standard WES2009German<br />Windows Embedded Standard WES2009Italian<br />Windows Embedded Standard WES2009Spanish<br />Windows Embedded Standard WES2009Swedish<br />Windows Embedded Standard WES2009Chinese<br />Windows Embedded Standard WES2009Portuguese<br />Windows Embedded Standard WES2009Russian | Software package | Vijeo Designer run time demo<br />.NET Framework 3.5<br />Acrobat Reader<br />Internet Explorer<br />Viewer Word/Excel/Power Point<br />Vijeo Citect web client |
Bezel material | Aluminium alloy | Terminal type | Touchscreen display |
Data storage equipment | 4 GB Compact Flash card | Display Type | Active matrix colour TFT LCD with LED backlight |
Display Resolution | 1280 x 1024 pixels SXGA | View angle horizontal x vertical | 160 x 100° |
Touch panel | Analogue resistive | Memory type | 512 KB SRAM<br />2 GB RAM DDR3 |
Type of cooling | Fanless | Integrated connection type | 2 Ethernet TCP/IP - RJ45<br /> DVI-I video port - DVI-I<br /> COM1 serial link - male SUB-D 9 - RS232C 115 kbit/s)<br /> COM2 serial link - male SUB-D 9 - RS232C 115 kbit/s)<br /> USB 2.0 type A 480 Mbit/s)front panel<br />4 USB 2.0 type A 480 Mbit/s)top panel |
Port Ethernet | 10BASE-T/100BASE-T/1000BASE-T | [Us] rated supply voltage | 24 V DC power supply |
Supply voltage limits | 18…30 V | Line Rated Current | 6.7 A |
Inrush current | 7 A | Power consumption in W | 130 W |
Material | Treated steel | Display material | Polyethylene sheet |
Fixing mode | Enclosure door by fixing kit fasteners included)<br />Panel by fixing kit fasteners included) | Type of Installation | Indoor |
Control type | ON/OFF push-button equipment ON and OFF)<br />Push-button reset) | Local signalling | for power LED (multi-colour)<br /> for accessing Compact Flash card (HDD) LED (yellow) |
Width | 18.9 in (480 mm) | Height | 15.0 in (380 mm) |
Depth | 4.5 in (114 mm) | cut-out dimensions | 459.5 (+/- 0.5) x 359.5 (+/- 0.5) x 1.6...10 mm |
Net Weight | 29.92 lb(US) (13.57 kg) | Main type | Universal |
IP degree of protection | IP65 front panel: conforming to EN/IEC 60529 | NEMA degree of protection | NEMA 4X front panel |
Product certifications | Marine GL Bridge with line filter HMIYLFIMAR11<br />CULus 508<br />CULus CSA 22-2 No 142<br />CULus HazLoc Class I Division 2 UL 1604<br />CULus HazLoc Class I Division 2 ANSI/ISA 12-12-01<br />CULus HazLoc Class I Division 2 CSA 22-2 No 213<br />GOST<br />CE<br />C-tick | Pollution degree | 2 EN/IEC 61131-2 |
Electromagnetic compatibility | Immunity to electromagnetic emissions, class A EN 55022<br />Immunity to electromagnetic emissions, class A EN 55011<br />Immunity to high frequency interference EN/IEC 61131-2<br />Immunity to high frequency interference EN/IEC 61000-4-x | Ambient air temperature for operation | 32…122 °F (0…50 °C) vertical installation UL 508<br />32…122 °F (0…50 °C) vertical installation EN/IEC 61131-2 |
Ambient air temperature for storage | -4…140 °F (-20…60 °C) IEC 60068-2-2 test Bb<br />-4…140 °F (-20…60 °C) IEC 60068-2-14 test Na | Relative Humidity | 10…85 % EN/IEC 60068-2-78<br />10…85 % EN/IEC 60068-2-30 |
Operating altitude | 6561.68 ft (2000 m) EN/IEC 61131-2 | Vibration resistance | 1.75 mm 2…9 Hz) continuous EN/IEC 60068-2-6 Fc<br />3.5 mm 2…9 Hz) intermittently EN/IEC 60068-2-6 Fc<br />0.5 gn 9…200 Hz) continuous EN/IEC 60068-2-6 Fc<br />1 gn 9…200 Hz) intermittently EN/IEC 60068-2-6 Fc<br />1 mm 3…13.2 Hz) continuous EN/IEC 60068-2-6 Fc<br />0.7 gn 13.2…100 Hz) continuous EN/IEC 60068-2-6 Fc |
Shock resistance | 15 gn 11 ms IEC 60068-2-27, Ea tests |
Specifications may be subject to change without notice
