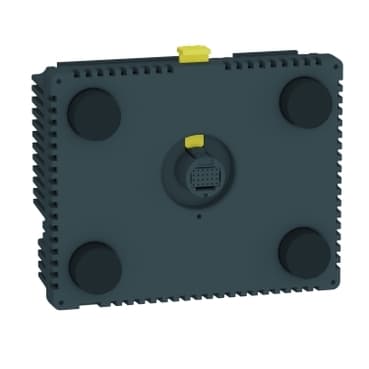

Product Model
HMISBC
Selling Points
- 1Industrial-grade reliability: Built for demanding industrial environments with robust technical specifications.
- 2Compatibility with HMIS65 & HMIS85: Seamlessly integrates with Schneider Electric's HMIS65 and HMIS85 screen modules.
- 3Compliance with industry standards: Meets SVHC and RoHS compliance requirements, ensuring environmental safety.
- 4Advanced control capabilities: Offers precise control and monitoring solutions for industrial processes.
- 5Enhanced user experience: Features a full-color touch screen interface for intuitive operation and real-time monitoring.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony SCU | Product or Component Type | Controller |
Device presentation | Basic element | Supply | External source |
[Us] rated supply voltage | 24 V 20.4…28.8 V)DC | Immunity to microbreaks | 10 ms |
Inrush current | 30 A | Power consumption in W | 15 W |
Local signalling | No indicator | Number of pages | Limited by internal memory capacity |
Software Designation | SoMachine | Operating System | Harmony |
Processor name | CPU RISC | Processor frequency | 333 MHz |
Memory description | Flash NAND, 128 MB<br />Internal data storage FRAM, 128 kB<br />Application run DRAM, 128 MB | Integrated connection type | 1 serial link - RJ45 - RS232/RS485 <= 115.2 kbits/s)<br />1 Ethernet TCP/IP - RJ45<br />1 USB 2.0 type mini B<br />1 USB 2.0 type A<br /> CANopen master bus - SUB-D 9 |
Realtime clock | Built-in | Downloadable protocols | Modbus<br />CANopen<br />Modbus TCP/IP |
Fixing mode | By 1 nut Ø 22 mm 1...6 mm thick panel | Enclosure Material | PC/PBT |
Shock resistance | 147 m/s² 11 ms on DIN rail)IEC 60068-2-27<br />294 m/s² 6 ms on panel mounting)IEC 60068-2-27 | Vibration resistance | +/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6 |
Electromagnetic compatibility | Electrostatic discharge immunity test - test level: 8 kV (air discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2<br />Susceptibility to electromagnetic fields - test level: 10 V/m (80 MHz...3 GHz) conforming to IEC 61000-4-3<br />Electrical fast transient/burst immunity test - test level: 2 kV (power lines) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (between analogue I/O and operating voltage) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 2 kV (relay wires) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (Ethernet line) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (COM line) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (CAN line) conforming to IEC 61000-4-4<br />Surge immunity test - test level: 2 kV (power supply (common mode)) conforming to IEC 61000-4-5<br />Surge immunity test - test level: 1 kV (power supply (differential mode)) conforming to IEC 61000-4-5<br />Surge immunity test - test level: 1 kV common mode (digital I/O) conforming to IEC 61000-4-5<br />Surge immunity test - test level: 0.5 kV differential mode (digital I/O) conforming to IEC 61000-4-5<br />Conducted RF disturbances - test level: 10 V (0.15...80 MHz) conforming to IEC 61000-4-6<br />Conducted emission - test level: 150 kHz...30 MHz conforming to EN 55011<br />Radiated emission - test level: 30 MHz...1 GHz conforming to EN 55011 | Discrete input number | 2 fast input (normal mode) IEC 61131-2 Type 1<br />6 digital input IEC 61131-2 Type 1 |
Discrete input voltage | 24 V DC sink or source (positive/negative) | Number of common point | 1 fast input (HSC mode)<br />1 digital input |
Discrete input current | 7.83 mA fast input<br />5 mA digital | input impedance | 2.81 kOhm<br />4.7 kOhm |
Sensor power supply | 15…28.8 V DC >= 15 V >= 5 mA <= 5 V <= 1.5 mA<br />15…28.8 V DC >= 15 V >= 2.5 mA <= 5 V <= 1 mA | Configurable filtering time | 0 ms no filter none)<br />0.004...0.04 ms bounce filter latch/event and cumulative filter by step Nx0.5ms (64>=N>=2))<br />3...12 ms integrator none/run/stop) |
Maximum input frequency | 100 kHz fast input (encoder mode) A/B<br />100 kHz fast input single phase<br />100 kHz fast input pulse/direction | Maximum cable distance between devices | Shielded cable <32.8 ft (10 m) fast input<br />Shielded cable <328.08 ft (100 m) digital input<br />Unshielded cable <164.04 ft (50 m) digital input |
Connection pitch | 0.1 in (3.5 mm) | Overvoltage protection | With |
Isolation between channels and internal logic | 500 V DC | Isolation between channels | None |
Discrete output number | 2 fast output (normal mode) source<br />6 digital output source | Discrete output voltage | 24 V DC 19.2...28.8 V)transistor<br />24 V DC 5...30 V)relay<br />220 V AC 100...250 V)relay |
Input/output number | 2 fast input FI0...FI1<br />2 fast output FQ0...FQ1<br />6 digital input DI0...DI5<br />6 digital output DQ0...DQ5 | Discrete output current | 2 A 4 A)5 ms opening contact digital output<br />2 A 4 A)2 ms closing contact digital output<br />300 mA2 ms fast output (normal mode)<br />50 mA2 ms fast output (PWM or PTO mode) |
Insulation resistance | > 10 MOhm between the I/O and internal logic<br />> 10 MOhm between power supply and earth | Maximum output frequency | 100 kHz fast output (PTO mode)<br />1 kHz fast output (PWM mode) |
Absolute accuracy error | +/- 0.1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode)<br />1 % of full scale cyclic ratio 1...99% fast output (PWM or PTO mode)<br />+/- 5 % of full scale cyclic ratio 10...90% fast output (PWM or PTO mode)<br />+/- 10 % of full scale cyclic ratio 20...80% fast output (PWM or PTO mode)<br />+/- 15 % of full scale cyclic ratio 30...70% fast output (PWM or PTO mode) | Analogue input number | 2 analog input<br />2 RTDs |
Analogue input range | 0...20 mA/4...20 mA 12 bits 250 Ohm +/- 1 %)<br />-10...+10 V or 0...10 V 12 bits + sign >= 1 MOhm | Analogue input type | RTD - 200...600 °C 16 bitsPt 100/Pt 1000<br />RTD - 50...200 °C 16 bitsNi 100/Ni 1000<br />RTD - 200...760 °C 16 bits thermocouple J)<br />RTD - 240...1370 °C 16 bits thermocouple K)<br />RTD 0...1600 °C 16 bits thermocouple R)<br />RTD 200...1800 °C 16 bits thermocouple B)<br />RTD 0...1600 °C 16 bits thermocouple S)<br />RTD - 200...400 °C 16 bits thermocouple T)<br />RTD - 200...900 °C 16 bits thermocouple E)<br />RTD - 200...1300 °C 16 bits thermocouple N) |
Analogue output number | 2 resistive load 12 bits + sign | Analogue output range | 0...20 mA/4...20 mA > 300 Ohm)open-circuit<br />-10...10 V/0...10 V > 2 kOhm)short-circuit |
Height | 1.99 in (50.65 mm) | Width | 5.04 in (128 mm) |
Depth | 4.02 in (102 mm) | Net Weight | 0.877 lb(US) (0.398 kg) |
Standards | UL 508<br />FCC Class A<br />EN 61131-2<br />CSA C22.2 No 213 Class I Division 2<br />ANSI/ISA 12-12-01<br />IEC 61000-6-2 | Product Certifications | cULus 508<br />cUL 1604 Class 1 Division 2<br />C-tick<br />cULus CSA 22-2 No 142<br />GOST<br />KCC<br />UKCA<br />UKEX |
marking | CE | Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) |
Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) | Relative humidity | 5…85 % without condensation |
Operating altitude | <= 6561.68 ft (2000 m) | Storage altitude | 0.0000000000…32808.4 ft (0…10000 m) |
Maximum pressure | 800...1114 hPa | IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) |
NEMA degree of protection | NEMA 4X front panel | Pollution degree | 2 IEC 60664 |
Environmental characteristic | Corrosive gas free |
