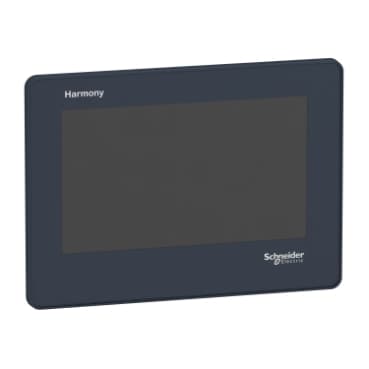

schneider HMISTO715

Selling Points

  • 1Full Color Touch Screen Interface: High-resolution 480x272 pixels display for clear graphics and text.
  • 2Versatile Power Supply: Operates on 12VDC-24VDC, suitable for various industrial power sources.
  • 3Compact Design: Measures 124.9 x 38.8 x 90.4 mm, perfect for space-constrained applications.
  • 4Multiple Communication Ports: Equipped with RJ45, RS232/RS485, and USB (Mini B, Type A) ports for seamless connectivity.
  • 5UL 61010 Certified: Meets safety standards for electrical equipment, ensuring reliability and safety in industrial environments.
Product Details
HMISTO715
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony STO & STU
Product or Component Type
Touch panel screen
Software Designation
EcoStruxure Operator Terminal Expert
Operating System
Harmony
Display size
4.3 inch
Display Type
Colour TFT LCD
Display colour
65536 colours
Display Resolution
480 x 272 pixels
Touch panel
Analogue
Backlight lifespan
50000 hours white
Brightness
16 levels via touch panel
Character font
Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />ASCII (European characters)<br />Taiwanese (traditional Chinese)<br />Korean<br />Cyrillic
[Us] rated supply voltage
12...24 V DC - 10...20 %
Power consumption in W
7.5 W
Number of pages
8999
Memory description
Back up of data 512 KB<br />Application memory 26 MB
Integrated connection type
1 USB 2.0 type mini B<br />1 USB 2.0 type A<br />1 serial link - RJ45 - RS232C/RS485 2400...115200 bps)
Supply
External source
Realtime clock
With RTC-battery set optional
Downloadable protocols
Third party protocols<br />Modbus
Range Compatibility
MitsubishI<br />Omron<br />Siemens<br />Allen-Bradley
Fixing mode
By 2 installation fasteners 1.5 to 6 mm thick panel
Enclosure Material
PPT
Front material
Plastic
Cut-out dimensions
77.5 x 112.5 mm<br />66 x 105 mm with mounting adaptor
Net Weight
0.49 lb(US) (0.22 kg)
Standards
ANSI/ISA 12.12.01<br />CSA C22.2 No 142<br />UL 61010-2-201<br />EN 61000-6-2<br />CSA C22.2 No 213<br />EN 61000-6-4<br />UL 61010-1<br />EN 61131-2
Product Certifications
UL<br />C-tick<br />KCC<br />CE<br />cUL<br />ATEX zone 2/22<br />UKCA
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
10…90 % without condensation
Operating altitude
6561.68 ft (2000 m)
IP degree of protection
IP65f front panel)<br />IP20 rear panel)
NEMA degree of protection
NEMA 4X/13 front panel indoor use)
Shock resistance
15 gn 11 msIEC 61131-2
Vibration resistance
1 gn 5…150 Hz) IEC 61131-2<br />3.5 mm constant amplitude 5…150 Hz) IEC 61131-2
Electromagnetic compatibility
Resistance to radiated electromagnetic fields - test level: 10 V/m (80 MHz...2.7 GHz)<br />Resistance to electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to EN 61000-4-2<br />Resistance to electrostatic discharge - test level: 6 kV level 3 (direct contact) conforming to EN 61000-4-2
