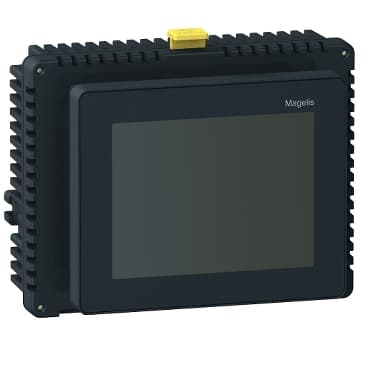

Product Model
HMISTU655S
Selling Points
- 1High-Resolution Display: 320x240 pixels QVGA TFT color touchscreen display.
- 2Industrial Compatibility: Designed for industrial automation systems, including compact machines and pharmaceutical industry.
- 3Versatile Connectivity: Equipped with 1 host + 1 mini-B USB ports, 1 RS232C / RS485 port, and 1 Ethernet TCP/IP port.
- 4Durable Build: PC/PBT enclosure material with a 50000-hour backlight lifespan.
- 5Wide Operating Temperature Range: Operates between 0°C to 50°C, suitable for various environmental conditions.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony STO & STU | Product or Component Type | Touch panel screen |
Software Designation | Vijeo Designer | Operating System | Harmony |
Processor name | CPU ARM9 | Display size | 3.5 inch |
Display Type | QVGA TFT colour touchscreen | Display colour | 65536 colours |
Display Resolution | 320 x 240 pixels QVGA | Touch panel | Analogue |
Backlight lifespan | 50000 hours | Brightness | 16 levels |
Character font | Chinese (simplified Chinese)<br />Japanese (ANK, Kanji)<br />Taiwanese (traditional Chinese)<br />Korean<br />ASCII | [Us] rated supply voltage | 24 V DC |
Supply | External source | Supply voltage limits | 20.4…28.8 V |
Inrush current | 30 A | Power consumption in W | 6.5 W |
Number of pages | Limited by internal memory capacity | Processor frequency | 333 MHz |
Memory description | Application memory 16 MB<br />Back up of data 64 kB | Integrated connection type | 1 USB 2.0 type mini B<br />1 USB 2.0 type A<br /> COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s)<br /> power supply - removable screw terminal block |
Realtime clock | Access to the PLC real-time clock | Downloadable protocols | Third party protocols<br />Modbus TCP/IP<br />Uni-TE<br />Modbus |
Fixing mode | Ø 22 mm hole | Enclosure Material | PC/PBT |
marking | CE | Height | 3.86 in (98.15 mm) |
Width | 4.6 in (118 mm) | Depth | 2.2 in (55.3 mm) |
Net Weight | 1.199 lb(US) (0.544 kg) | Immunity to microbreaks | 10 ms |
Standards | IEC 61000-6-2<br />UL 1604<br />EN 61131-2<br />FCC Class A<br />UL 508 | Product Certifications | C-tick<br />cULus<br />Marine<br />UL class 1 Div2 T4A ou T5 |
Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) | Ambient Air Temperature for Storage | -4…140 °F (-20…60 °C) |
Relative humidity | 0…85 % without condensation | Operating altitude | <= 6561.68 ft (2000 m) |
IP degree of protection | IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel) | NEMA degree of protection | NEMA 4X front panel indoor use) |
Shock resistance | 15 gn 11 msIEC 60068-2-27 | Vibration resistance | +/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6 |
Resistance to electromagnetic fields | 9.1 V/m (10 V/m) IEC 61000-4-3 |
Specifications may be subject to change without notice
