schneiderHMI (Terminals and Industrial PC)
Product Model

HMISTU855W

Manufacturer

schneider

Category

HMI (Terminals and Industrial PC)

Product ID

30150

In Stock
Last updated: 2025/4/18
View Specifications

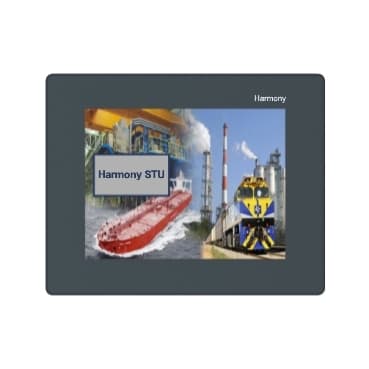

schneider HMISTU855W

Selling Points

  • 1Full Color Touch Interface: Enjoy a vibrant and intuitive display with 65536 colors.
  • 2High Resolution: Features a QVGA display resolution of 320x240 pixels.
  • 3Low Power Consumption: Operates at 6.8W with a rated supply voltage of 24 VDC.
  • 4UL 508 Certified: Meets stringent safety standards for industrial use.
  • 5Harmony STO & STU Compatibility: Seamlessly integrates with Schneider Electric's Harmony STO and STU systems.
Product Details
HMISTU855W
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony STO & STU
Product or Component Type
Touch panel screen
Software Designation
Vijeo Designer
Operating System
Harmony
Processor name
CPU ARM9
Display size
5.7 inch
Display Type
QVGA TFT colour touchscreen
Display colour
65536 colours
Display Resolution
320 x 240 pixels QVGA
Touch panel
Analogue
Backlight lifespan
50000 hours
Brightness
16 levels
Character font
ASCII<br />Japanese (ANK, Kanji)<br />Chinese (simplified Chinese)<br />Taiwanese (traditional Chinese)<br />Korean
[Us] rated supply voltage
24 V DC
Supply
External source
Supply voltage limits
20.4…28.8 V
Inrush current
30 A
Power consumption in W
6.8 W
Number of pages
Limited by internal memory capacity
Processor frequency
333 MHz
Memory description
Application memory 16 MB<br />Back up of data 64 kB
Integrated connection type
1 USB 2.0 type mini B<br />1 USB 2.0 type A<br /> COM1 serial link - female RJ45 - RS232C/RS485 <= 115.2 kbits/s)<br /> power supply - removable screw terminal block<br /> 1 Ethernet - RJ45
Realtime clock
Access to the PLC real-time clock
Downloadable protocols
Third party protocols<br />Uni-TE<br />Modbus<br />Modbus TCP/IP
Fixing mode
Ø 22 mm hole
Enclosure Material
PC/PBT and PAA
marking
CE<br />Without Schneider logo
Height
5.08 in (129.15 mm)
Width
6.4 in (163 mm)
Depth
2.2 in (56.5 mm)
Net Weight
1.920 lb(US) (0.871 kg)
Immunity to microbreaks
7 ms
Standards
IEC 61000-6-2<br />UL 508<br />UL 1604<br />IEC 61131-2<br />FCC Class A
Product Certifications
cULus<br />C-tick<br />UL class 1 Div2 T4A ou T5<br />Marine<br />UKCA
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
0…85 % without condensation
Operating altitude
<= 6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 60529 rear panel)<br />IP65 IEC 60529 front panel)
NEMA degree of protection
NEMA 4X front panel (indoor use)
Shock resistance
15 gn 11 msIEC 60068-2-27
Vibration resistance
+/- 3.5 mm 5…9 Hz) IEC 60068-2-6<br />1 gn 9…150 Hz) IEC 60068-2-6
Resistance to electromagnetic fields
9.1 V/m (10 V/m) IEC 61000-4-3

Specifications may be subject to change without notice
