Product Model

HMISTW6200

Manufacturer

schneider

Category

HMI (Terminals and Industrial PC)

Product ID

30151

In Stock
Last updated: 2025/4/18
View Specifications

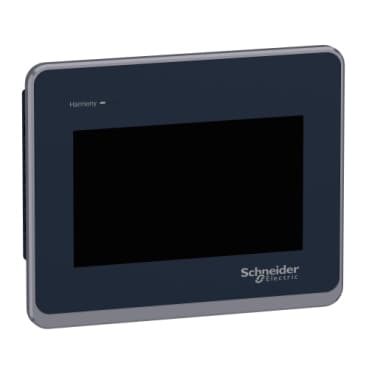

schneider HMISTW6200

Selling Points

  • 1High-resolution 480 x 272 pixel LCD display for clear visibility.
  • 2Equipped with 1 USB 2.0 Type A, 1 USB 2.0 Micro B, and 1 Ethernet port for versatile connectivity.
  • 3Robust cybersecurity features including enhanced application and firmware security.
  • 4Durable design with a polycarbonate enclosure and aluminum front panel.
  • 5Supports web interface for operator software with multi-screen and layout objects functions.
Product Details
HMISTW6200
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony ST6
Product or Component Type
Touch panel screen
Software Designation
Web interface for operator
Processor name
ARM Cortex-A8
Processor frequency
800 MHz
Memory description
512 MB device memory<br />512 MB user data memory<br />128 kB backup memory
Display size
4 inch
Display Type
Colour TFT LCD
Display colour
16 million colours
Display Resolution
480 x 272 pixels
Touch panel
Single touch analogue resistive
Backlight lifespan
50000 hours white
Brightness
16 levels
Character font
ASCII<br />ASCII (European characters)<br />Katakana
[Us] rated supply voltage
24 V DC +/- 20 %)
Power consumption in W
6.9 W
Inrush current
30 A
Local signalling
Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED green, flashing operating<br />Status LED green, faded stand-by<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED red, flashing operating<br />Status LED red, off power supply (OFF)
Port Ethernet
10/100BASE
Integrated connection type
1 USB 2.0 type Aback<br />1 Ethernet - female RJ45bottom
Supply
External supply
Realtime clock
Built-in 0...50 °C<br />Built-in 10...90 % RH
Fixing mode
By 2 screws 1.6...5 mm thick panel UL 61010-2-201<br />By 2 screws IEC 61131-2<br />By 2 screws IEC 61000-6-2
Enclosure Material
PC
Front material
Aluminium
marking
CE
Cut-out dimensions
118.5 x 92.5 mm panel cut dimension
Height
4.3 in (108.5 mm)
Width
5.3 in (134.5 mm)
Depth
1.7 in (43 mm)
Net Weight
0.9 lb(US) (0.4 kg)
Immunity to microbreaks
2 ms
Standards
IEC 61000-6-4<br />IEC 61000-6-2<br />IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201
Product Certifications
CSA<br />CE<br />UKCA
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
10…90 % non-condensing
Operating altitude
6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 61131-2 rear panel)<br />IP65 IEC 61131-2 front panel)
NEMA degree of protection
NEMA 4 front panel (indoor use)<br />NEMA 13 front panel (in enclosure)
Shock resistance
147 m/s² 11 ms X, Y, Z directions for 10 cycles (approx. 100 min))IEC 61131-2
Vibration resistance
+/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2<br />9.8 m/s² 9…150 Hz)
Electromagnetic compatibility
Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge)

Specifications may be subject to change without notice
