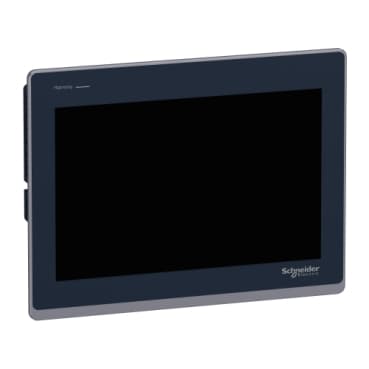

schneider HMISTW6600

Selling Points

  • 112-inch Colour TFT LCD Display: High-resolution 1280 x 800 pixels display for clear visuals.
  • 2Touch Panel Interface: Intuitive touch panel for easy operation and control.
  • 3Environmental Durability: Operates in temperatures from 32 to 122°F, ensuring reliability in various environments.
  • 4Multiple Connectivity Options: Equipped with 2 Ethernet ports and USB host and device ports for seamless connectivity.
  • 5Compact Design: Dimensions of 9.25 in H x 12.32 in W x 1.97 in D, perfect for space-efficient installations.
Product Details
HMISTW6600
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony ST6
Product or Component Type
Touch panel screen
Software Designation
Web interface for operator
Processor name
ARM Cortex-A8
Processor frequency
800 MHz
Memory description
512 MB device memory<br />512 MB backup memory<br />128 kB user data memory
Display size
12 inch
Display Type
Colour TFT LCD
Display colour
16 million colours
Display Resolution
1280 x 800 pixels WXGA
Touch panel
Single touch analogue resistive
Backlight lifespan
50000 hours white
Brightness
16 levels
Character font
ASCII<br />ASCII (European characters)<br />Katakana
[Us] rated supply voltage
24 V DC +/- 20 %)
Power consumption in W
18.4 W
Inrush current
30 A
Local signalling
Status LED green, steady offline<br />Status LED green, steady operating<br />Status LED green, flashing operating<br />Status LED green, faded stand-by<br />Status LED orange, flashing software starting up<br />Status LED red, steady power supply (ON)<br />Status LED red, flashing operating<br />Status LED red, off power supply (OFF)
Port Ethernet
10/100BASE
Integrated connection type
1 USB 2.0 type Aback<br />1 Ethernet - female RJ45bottom
Supply
External supply
Realtime clock
Built-in 0...50 °C<br />Built-in 10...90 % RH
Fixing mode
By 4 screws 1.6...5 mm thick panel UL 61010-2-201<br />By 4 screws IEC 61131-2<br />By 4 screws IEC 61000-6-2
Enclosure Material
PC
Front material
Aluminium
marking
CE
Cut-out dimensions
295 x 217 mm panel cut dimension
Height
9.3 in (235 mm)
Width
12.3 in (313 mm)
Depth
2.0 in (50 mm)
Net Weight
4.0 lb(US) (1.8 kg)
Immunity to microbreaks
10 ms
Standards
IEC 61000-6-4<br />IEC 61000-6-2<br />IEC 61131-2<br />UL 61010-2-201<br />CSA C22.2 No 61010-2-201
Product Certifications
CSA<br />CE<br />UKCA
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility
Ambient Air Temperature for Operation
32…122 °F (0…50 °C)
Ambient Air Temperature for Storage
-4…140 °F (-20…60 °C)
Relative humidity
10…90 % non-condensing
Operating altitude
6561.68 ft (2000 m)
IP degree of protection
IP20 IEC 61131-2 rear panel)<br />IP65 IEC 61131-2 front panel)
NEMA degree of protection
NEMA 4 front panel (indoor use)<br />NEMA 13 front panel (in enclosure)
Shock resistance
147 m/s² 11 ms X, Y, Z directions for 3 times)IEC 61131-2
Vibration resistance
+/- 3.5 mm 5…9 Hz) X, Y, Z directions for 10 cycles (approx. 100 min) IEC 61131-2<br />9.8 m/s² 9…150 Hz)
Electromagnetic compatibility
Electrical fast transient/burst immunity test - test level: 2 kV (power ports) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 1 kV (signal ports)<br />Electrostatic discharge immunity test - test level: 6 kV (contact discharge) conforming to IEC 61000-4-2 level 3<br />Electrostatic discharge immunity test - test level: 8 kV (air discharge)
