Product Model

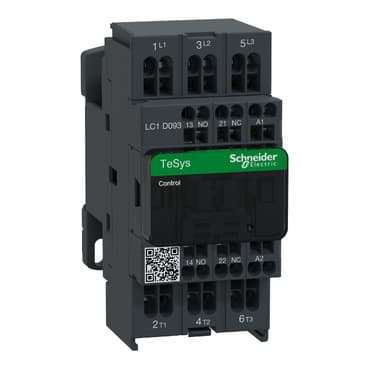

LC1D093N7
Selling Points
- 1High Power Rating: Handles up to 9A maximum load current.
- 2Versatile Voltage Compatibility: Operates on 415V AC coil with 50/60Hz frequency.
- 3Reliable Contact Configuration: Features 3NO contact configuration for precise control.
- 4Durable Construction: Built with IP20 enclosure for robust performance.
- 5Compliant with Industry Standards: Meets IEC 60947-4-1 and CSA/UL standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | TeSys Deca | Product or Component Type | Contactor |
Device short name | LC1D | Contactor application | Resistive load<br />Motor control |
Utilisation category | AC-3<br />AC-1<br />AC-4<br />AC-3e | Poles description | 3P |
[Ue] rated operational voltage | Power circuit <= 690 V AC 25...400 Hz<br />Power circuit <= 300 V DC | [Ie] rated operational current | 9 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit<br />20 A (at <140 °F (60 °C)) at <= 440 V AC AC-1 for power circuit<br />9 A (at <140 °F (60 °C)) at <= 440 V AC AC-3e for power circuit |
[Uc] control circuit voltage | 415 V AC 50/60 Hz | Motor power kW | 2.2 kW at 220...230 V AC 50/60 Hz (AC-3)<br />4 kW at 380...400 V AC 50/60 Hz (AC-3)<br />4 kW at 415...440 V AC 50/60 Hz (AC-3)<br />5.5 kW at 500 V AC 50/60 Hz (AC-3)<br />5.5 kW at 660...690 V AC 50/60 Hz (AC-3)<br />2.2 kW at 400 V AC 50/60 Hz (AC-4)<br />2.2 kW at 220...230 V AC 50/60 Hz (AC-3e)<br />4 kW at 380...400 V AC 50/60 Hz (AC-3e)<br />4 kW at 415...440 V AC 50/60 Hz (AC-3e)<br />5.5 kW at 500 V AC 50/60 Hz (AC-3e)<br />5.5 kW at 660...690 V AC 50/60 Hz (AC-3e) |
Maximum Horse Power Rating | 1 hp at 230/240 V AC 50/60 Hz for 1 phase motors<br />2 hp at 200/208 V AC 50/60 Hz for 3 phase motors<br />2 hp at 230/240 V AC 50/60 Hz for 3 phase motors<br />5 hp at 460/480 V AC 50/60 Hz for 3 phase motors<br />7.5 hp at 575/600 V AC 50/60 Hz for 3 phase motors<br />0.33 hp at 115 V AC 50/60 Hz for 1 phase motors | compatibility code | LC1D |
Pole contact composition | 3 NO | Protective cover | With |
[Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) for signalling circuit<br />16 A (at 140 °F (60 °C)) for power circuit | Irms rated making capacity | 250 A at 440 V for power circuit conforming to IEC 60947<br />140 A AC for signalling circuit conforming to IEC 60947-5-1<br />250 A DC for signalling circuit conforming to IEC 60947-5-1 |
Rated breaking capacity | 250 A at 440 V for power circuit conforming to IEC 60947 | [Icw] rated short-time withstand current | 105 A 104 °F (40 °C) - 10 s for power circuit<br />210 A 104 °F (40 °C) - 1 s for power circuit<br />30 A 104 °F (40 °C) - 10 min for power circuit<br />61 A 104 °F (40 °C) - 1 min for power circuit<br />100 A - 1 s for signalling circuit<br />120 A - 500 ms for signalling circuit<br />140 A - 100 ms for signalling circuit |
Associated fuse rating | 10 A gG for signalling circuit conforming to IEC 60947-5-1<br />25 A gG at <= 690 V coordination type 1 for power circuit<br />20 A gG at <= 690 V coordination type 2 for power circuit | Average impedance | 2.5 mOhm - Ith 16 A 50 Hz for power circuit |
Power dissipation per pole | 1.56 W AC-1<br />0.2 W AC-3<br />0.2 W AC-3e | [Ui] rated insulation voltage | Power circuit 690 V IEC 60947-4-1<br />Power circuit 600 V CSA<br />Power circuit 600 V UL<br />Signalling circuit 690 V IEC 60947-1<br />Signalling circuit 600 V CSA<br />Signalling circuit 600 V UL |
Overvoltage category | III | Pollution degree | 3 |
[Uimp] rated impulse withstand voltage | 6 kV IEC 60947 | Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1<br />B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 |
Mechanical durability | 15 Mcycles | Electrical durability | 0.6 Mcycles 25 A AC-1 <= 440 V<br />2 Mcycles 9 A AC-3 <= 440 V<br />2 Mcycles 9 A AC-3e <= 440 V |
Control circuit type | AC 50/60 Hz | Coil technology | Without built-in suppressor module |
Control circuit voltage limits | 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 50/60 Hz<br />0.8...1.1 Uc -40…140 °F (-40…60 °C) operational AC 50 Hz<br />0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC 60 Hz<br />1...1.1 Uc 140…158 °F (60…70 °C) operational AC 50/60 Hz | Inrush power in VA | 70 VA 60 Hz cos phi 0.75 (at 68 °F (20 °C))<br />70 VA 50 Hz cos phi 0.75 (at 68 °F (20 °C)) |
Hold-in power consumption in VA | 7.5 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C))<br />7 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C)) | Heat dissipation | 2…3 W at 50/60 Hz |
Operating time | 12...22 ms closing<br />4...19 ms opening | Maximum operating rate | 3600 cyc/h at 60 °C |
Connections - terminals | Power circuit: spring terminals 1 0.004 in² (2.5 mm²) - cable stiffness: flexible without cable end<br />Power circuit: spring terminals 2 0.004 in² (2.5 mm²) - cable stiffness: flexible without cable end<br />Control circuit: spring terminals 1 0.004 in² (2.5 mm²) - cable stiffness: flexible without cable end<br />Control circuit: spring terminals 2 0.004 in² (2.5 mm²) - cable stiffness: flexible without cable end | Auxiliary contact composition | 1 NO + 1 NC |
Auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1<br />Mirror contact 1 NC IEC 60947-4-1 | Signalling circuit frequency | 25...400 Hz |
Minimum switching voltage | 17 V for signalling circuit | Minimum switching current | 5 mA for signalling circuit |
Insulation resistance | > 10 MOhm for signalling circuit | Non-overlap time | 1.5 ms on de-energisation between NC and NO contact<br />1.5 ms on energisation between NC and NO contact |
Mounting Support | Plate<br />Rail | Standards | CSA C22.2 No 14<br />EN 60947-4-1<br />EN 60947-5-1<br />IEC 60947-4-1<br />IEC 60947-5-1<br />UL 60947-4-1<br />IEC 60335-1:Clause 30.2<br />IEC 60335-2-40:Annex JJ<br />UL 60335-2-40:Annex JJ<br />CSA C22.2 No 60947-4-1 |
Product Certifications | UL<br />CCC<br />CSA<br />Marine<br />UKCA<br />EAC<br />CB Scheme | IP degree of protection | IP20 front face IEC 60529 |
Protective treatment | THIEC 60068-2-30 | Climatic withstand | IACS E10 exposure to damp heat<br /> IEC 60947-1 Annex Q category D exposure to damp heat |
Permissible ambient air temperature around the device | -40…140 °F (-40…60 °C)<br />140…158 °F (60…70 °C) with derating | Operating altitude | 0...9842.52 ft (0...3000 m) |
Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 | Flame retardance | V1 conforming to UL 94 |
Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) <br />Vibrations contactor closed 4 Gn, 5...300 Hz) <br />Shocks contactor open 10 Gn for 11 ms) <br />Shocks contactor closed 15 Gn for 11 ms) | Height | 3.1 in (80 mm) |
Width | 1.8 in (45 mm) | Depth | 3.4 in (86 mm) |
Net Weight | 0.71 lb(US) (0.32 kg) |
Specifications may be subject to change without notice
