Product Model

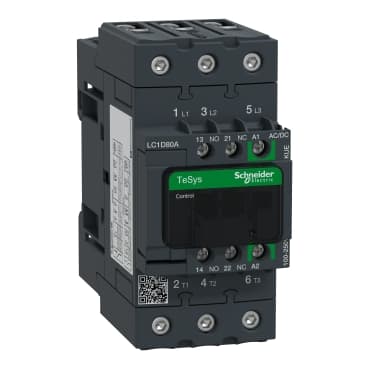

LC1D80AKUE
Selling Points
- 1Low Consumption Coils: Ultra-efficient 100-250V AC/DC coil reduces energy consumption by up to 80%.
- 2Robust Industrial Applications: Designed for motor control and resistive loads, suitable for industrial and HVAC applications.
- 3Built-in Auxiliary Contacts: Includes 1NO+1NC built-in auxiliary contacts for added functionality.
- 4Multi-Standard Screws: Easier to install with multi-standard screws, ensuring compatibility across various systems.
- 5Comprehensive Certifications: Meets international standards including EN/IEC 60947-4-1, UL 60947-4-1, and CSA C22.2 No 60947-4-1.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range | TeSys<br />TeSys Deca | Range of Product | TeSys Deca |
Product or Component Type | Contactor | Device short name | LC1D |
Contactor application | Resistive load<br />Motor control | Utilisation category | AC-3<br />AC-1<br />AC-3e |
Poles description | 3P | [Ue] rated operational voltage | Power circuit <= 690 V AC 25...400 Hz |
[Ie] rated operational current | 80 A (at <140 °F (60 °C)) at <= 440 V AC-1 for power circuit<br />66 A (at <140 °F (60 °C)) at <= 440 V AC-3 for power circuit<br />66 A (at <140 °F (60 °C)) at <= 440 V AC-3e for power circuit | [Uc] control circuit voltage | 100...250 V AC 50/60 Hz<br />100...250 V DC |
Motor power kW | 22 kW at 220...230 V AC 50/60 Hz (AC-3)<br />37 kW at 380...400 V AC 50/60 Hz (AC-3)<br />37 kW at 415 V AC 50/60 Hz (AC-3)<br />37 kW at 440 V AC 50/60 Hz (AC-3)<br />37 kW at 500 V AC 50/60 Hz (AC-3)<br />37 kW at 660...690 V AC 50/60 Hz (AC-3)<br />22 kW at 220...230 V AC 50/60 Hz (AC-3e)<br />37 kW at 380...400 V AC 50/60 Hz (AC-3e)<br />37 kW at 415 V AC 50/60 Hz (AC-3e)<br />37 kW at 440 V AC 50/60 Hz (AC-3e)<br />37 kW at 500 V AC 50/60 Hz (AC-3e)<br />37 kW at 660...690 V AC 50/60 Hz (AC-3e) | Maximum Horse Power Rating | 5 hp at 115 V AC 60 Hz for 1 phase motors<br />10 hp at 230/240 V AC 60 Hz for 1 phase motors<br />20 hp at 200/208 V AC 60 Hz for 3 phase motors<br />20 hp at 230/240 V AC 60 Hz for 3 phase motors<br />40 hp at 460/480 V AC 60 Hz for 3 phase motors<br />50 hp at 575/600 V AC 60 Hz for 3 phase motors |
compatibility code | LC1D | Pole contact composition | 3 NO |
Protective cover | With | [Ith] conventional free air thermal current | 80 A (at 140 °F (60 °C)) for power circuit<br />10 A (at 140 °F (60 °C)) for signalling circuit |
Irms rated making capacity | 140 A AC for signalling circuit conforming to IEC 60947-5-1<br />250 A DC for signalling circuit conforming to IEC 60947-5-1<br />1000 A at 440 V AC for power circuit conforming to IEC 60947 | Rated breaking capacity | 1000 A at 440 V for power circuit conforming to IEC 60947 |
[Icw] rated short-time withstand current | 110 A 104 °F (40 °C) - 10 min for power circuit<br />260 A 104 °F (40 °C) - 1 min for power circuit<br />640 A 104 °F (40 °C) - 10 s for power circuit<br />900 A 104 °F (40 °C) - 1 s for power circuit<br />100 A - 1 s for signalling circuit<br />120 A - 500 ms for signalling circuit<br />140 A - 100 ms for signalling circuit | Associated fuse rating | 125 A gG at <= 690 V coordination type 1 for power circuit<br />125 A gG at <= 690 V coordination type 2 for power circuit<br />10 A gG for signalling circuit conforming to IEC 60947-5-1 |
Average impedance | 1.5 mOhm - Ith 80 A 50 Hz for power circuit | Power dissipation per pole | 9.6 W AC-1<br />6.3 W AC-3<br />6.3 W AC-3e |
[Ui] rated insulation voltage | Power circuit 690 V IEC 60947-4-1<br />Signalling circuit 690 V IEC 60947-1 | Overvoltage category | III |
Pollution degree | 3 | [Uimp] rated impulse withstand voltage | 6 kV IEC 60947 |
Safety reliability level | B10d = 1369863 cycles contactor with nominal load EN/ISO 13849-1<br />B10d = 20000000 cycles contactor with mechanical load EN/ISO 13849-1 | Mechanical durability | 6 Mcycles |
Electrical durability | 1 Mcycles 66 A AC-3 <= 440 V<br />0.5 Mcycles 80 A AC-1 <= 440 V<br />1 Mcycles 66 A AC-3e <= 440 V | Control circuit type | AC/DC 50/60 Hz AC/DC electronic |
Coil technology | Built-in bidirectional peak limiting | Control circuit voltage limits | <= 0.1 Uc -40…158 °F (-40…70 °C) drop-out AC/DC<br />0.85...1.1 Uc -40…140 °F (-40…60 °C) operational AC/DC<br />1...1.1 Uc 140…158 °F (60…70 °C) operational AC/DC |
Inrush power in VA | 18 VA 50/60 Hz (at 68 °F (20 °C)) | Inrush power in W | 14 W 68 °F (20 °C)) |
Hold-in power consumption in VA | 1.8 VA 50/60 Hz (at 68 °F (20 °C)) | Hold-in power consumption in W | 1.2 W 68 °F (20 °C) |
Heat dissipation | 1.2 W at 50/60 Hz | Operating time | 55...65 ms closing<br />20...80 ms opening |
Maximum operating rate | 3600 cyc/h at 60 °C | Connections - terminals | Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end<br />Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: flexible without cable end<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: flexible with cable end<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: solid<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: flexible without cable end<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: flexible with cable end<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: solid |
Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals flat Ø 6 mm<br />Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals Philips No 2<br />Power circuit 70.8 lbf.in (8 N.m) EverLink BTR screw connectors 0.04…0.05 in² (25…35 mm²) hexagonal 0.2 in (4 mm)<br />Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors 0.002…0.04 in² (1…25 mm²) hexagonal 0.2 in (4 mm)<br />Power circuit 44.3 lbf.in (5 N.m) pozidriv No 2 M4<br />Control circuit 15.05 lbf.in (1.7 N.m) pozidriv No 2 M3.5 | Auxiliary contact composition | 1 NO + 1 NC |
Auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1<br />Mirror contact 1 NC IEC 60947-4-1 | Signalling circuit frequency | 25...400 Hz |
Minimum switching voltage | 17 V for signalling circuit | Minimum switching current | 5 mA for signalling circuit |
Insulation resistance | > 10 MOhm for signalling circuit | Non-overlap time | 1.5 ms on de-energisation between NC and NO contact<br />1.5 ms on energisation between NC and NO contact |
Mounting Support | Rail<br />Plate | Standards | EN/IEC 60947-4-1<br />EN/IEC 60947-5-1<br />UL 60947-4-1<br />CSA C22.2 No 60947-4-1<br />IEC 60335-1 |
Product Certifications | CCC<br />CSA<br />EAC<br />UL<br />KC<br />DNV-GL<br />LROS (Lloyds register of shipping)<br />UKCA | IP degree of protection | IP20 front face IEC 60529 |
Climatic withstand | IACS E10 exposure to damp heat<br /> IEC 60947-1 Annex Q category D exposure to damp heat | Permissible ambient air temperature around the device | -40…140 °F (-40…60 °C)<br />140…158 °F (60…70 °C) with derating |
Operating altitude | 0...9842.52 ft (0...3000 m) | Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 |
Flame retardance | V1 conforming to UL 94 | Mechanical robustness | Vibrations contactor open 2 Gn, 5...300 Hz) <br />Vibrations contactor closed 4 Gn, 5...300 Hz) <br />Shocks contactor open 10 Gn for 11 ms) <br />Shocks contactor closed 15 Gn for 11 ms) |
Height | 4.8 in (122 mm) | Width | 2.2 in (55 mm) |
Depth | 4.7 in (120 mm) | Net Weight | 2.209 lb(US) (1.002 kg) |
Specifications may be subject to change without notice
