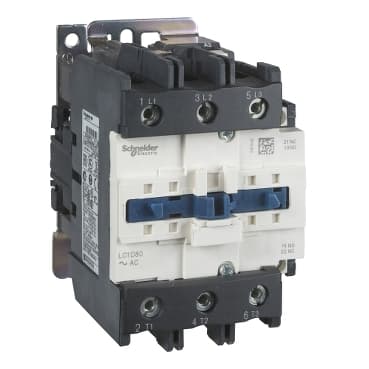

Product Model
LC1D80W6
Selling Points
- 1Rated at 80 AMPS AC-3 (125 AMPS AC-1) for reliable performance.
- 2Features a 480V60Hz AC coil for efficient operation.
- 3Includes 1 normally open (N.O.) and 1 normally closed (N.C.) base-mounted auxiliary contacts.
- 4Compatible with DIN rail or panel mounting for versatile installation options.
- 5Offers enhanced control circuit flexibility with built-in auxiliary contacts.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range | TeSys | Range of Product | TeSys Deca |
Product or Component Type | Contactor | Device short name | LC1D |
Contactor application | Motor control<br />Resistive load | Utilisation category | AC-1<br />AC-3 |
Poles description | 3P | [Ue] rated operational voltage | Power circuit <= 1000 V AC 25...400 Hz |
[Ie] rated operational current | 125 A (at <140 °F (60 °C)) at <= 1000 V AC AC-1 for power circuit<br />80 A (at <140 °F (60 °C)) at <= 440 V AC AC-3 for power circuit | [Uc] control circuit voltage | 277 V AC 60 Hz |
Motor power kW | 37 kW at 380...400 V AC 50 Hz<br />55 kW at 500 V AC 50 Hz<br />45 kW at 660...690 V AC 50 Hz<br />22 kW at 220...230 V AC 50 Hz<br />45 kW at 415 V AC 50 Hz<br />45 kW at 440 V AC 50 Hz | Maximum Horse Power Rating | 7.5 hp at 115 V AC 60 Hz for 1 phase motors<br />15 hp at 230/240 V AC 60 Hz for 1 phase motors<br />25 hp at 200/208 V AC 60 Hz for 3 phase motors<br />30 hp at 230/240 V AC 60 Hz for 3 phase motors<br />60 hp at 460/480 V AC 60 Hz for 3 phase motors<br />60 hp at 575/600 V AC 60 Hz for 3 phase motors |
compatibility code | LC1D | Pole contact composition | 3 NO |
Protective cover | With | [Ith] conventional free air thermal current | 10 A (at 140 °F (60 °C)) for control circuit<br />125 A (at 140 °F (60 °C)) for power circuit |
Irms rated making capacity | 140 A AC for control circuit conforming to IEC 60947-5-1<br />1100 A at 440 V for power circuit conforming to IEC 60947 | Rated breaking capacity | 1100 kA at 440 V for power circuit conforming to IEC 60947 |
[Icw] rated short-time withstand current | 990 A 104 °F (40 °C) - 1 s for power circuit<br />640 A 104 °F (40 °C) - 10 s for power circuit<br />320 A 104 °F (40 °C) - 1 s for power circuit<br />135 A 104 °F (40 °C) - 10 s for power circuit<br />100 A - 1 s for control circuit<br />120 A - 500 s for control circuit<br />140 A - 100 s for control circuit | Associated fuse rating | 10 A gG for control circuit conforming to IEC 60947-5-1<br />160 A gG at <= 690 V coordination type 2 for power circuit<br />200 A gG at <= 690 V coordination type 1 for power circuit |
Average impedance | 0.8 Ohm - Ith 125 A 50 Hz for power circuit | Power dissipation per pole | 5.1 W AC-3<br />12.5 W AC-1 |
[Ui] rated insulation voltage | Control circuit 600 V CSA<br />Control circuit 600 V UL<br />Power circuit 600 V CSA<br />Power circuit 600 V UL<br />Control circuit 690 V IEC 60947-1<br />Power circuit 1000 V IEC 60947-1 | Overvoltage category | III |
[Uimp] rated impulse withstand voltage | 8 kV IEC 60947 | Mechanical durability | 4000000 cycles |
Control circuit type | AC 60 Hz | Coil technology | Without built-in |
Control circuit voltage limits | 0.3...0.6 Uc -40…158 °F (-40…70 °C) drop-out AC 60 Hz<br />0.85...1.1 Uc -40…131 °F (-40…55 °C) operational AC 60 Hz<br />1...1.1 Uc 131…158 °F (55…70 °C) operational AC 60 Hz | Inrush power in VA | 245 VA cos phi 0.75 (at 68 °F (20 °C))<br />200 VA cos phi 0.75 (at 68 °F (20 °C))<br />220 VA cos phi 0.75 (at 68 °F (20 °C)) |
Hold-in power consumption in VA | 26 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))<br />26 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C))<br />20 VA 50 Hz cos phi 0.3 (at 68 °F (20 °C))<br />22 VA 60 Hz cos phi 0.3 (at 68 °F (20 °C)) | Heat dissipation | 6…10 W at 50/60 Hz for control circuit |
Operating time | 20...35 ms closing<br />6...20 ms opening | Maximum operating rate | 3600 cyc/mn 140 °F (60 °C) |
Connections - terminals | Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: rigid<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: rigid<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 1 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end<br />Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end<br />Power circuit: screw terminals 1 0.006…0.08 in² (4…50 mm²) - cable stiffness: rigid<br />Power circuit: screw terminals 2 0.006…0.04 in² (4…25 mm²) - cable stiffness: rigid<br />Power circuit: screw terminals 1 0.006…0.08 in² (4…50 mm²) - cable stiffness: flexible without cable end<br />Power circuit: screw terminals 2 0.006…0.04 in² (4…25 mm²) - cable stiffness: flexible without cable end<br />Power circuit: screw terminals 1 0.006…0.08 in² (4…50 mm²) - cable stiffness: flexible with cable end<br />Power circuit: screw terminals 2 0.006…0.02 in² (4…16 mm²) - cable stiffness: flexible with cable end | Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminal flat Ø 6 mm<br />Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminal Philips No 2<br />Power circuit 106.2 lbf.in (12 N.m) screw terminal flat Ø 6 to Ø 8 mm<br />Power circuit 106.2 lbf.in (12 N.m) screw terminal hex (Allen key) 0.2 in (4 mm)<br />Control circuit 10.6 lbf.in (1.2 N.m) screw clamp terminal pozidriv No 2 |
Auxiliary contact composition | 1 NO + 1 NC | Auxiliary contacts type | Mechanically linked 1 NO + 1 NC IEC 60947-5-1<br />Mirror contact 1 NC IEC 60947-4-1 |
Minimum switching voltage | 17 V for control circuit | Minimum switching current | 5 mA for control circuit |
Insulation resistance | > 10 MOhm for control circuit | Non-overlap time | 1.5 ms on de-energisation between NC and NO contacts<br />1.5 ms on energisation between NC and NO contacts |
Mounting Support | Plate<br />Rail | Standards | IEC 60947-5-1<br />UL 508<br />CSA C22.2 No 14<br />EN 60947-4-1<br />IEC 60947-4-1<br />EN 60947-5-1 |
Product Certifications | GL<br />LROS (Lloyds register of shipping)<br />BV<br />GOST<br />CSA<br />RINA<br />DNV<br />UL<br />CCC | IP degree of protection | IP2X IEC 60529<br />IP2X VDE 0106 |
Protective treatment | TH 3)IEC 60068-2-30 | Climatic withstand | IACS E10 exposure to damp heat |
Permissible ambient air temperature around the device | -76…176 °F (-60…80 °C) storage<br />-40…140 °F (-40…60 °C) operation<br />140…158 °F (60…70 °C) with derating | Operating altitude | 0...9842.52 ft (0...3000 m) |
Fire resistance | 1562 °F (850 °C) IEC 60695-2-1 | Flame retardance | V1 conforming to UL 94 |
Mechanical robustness | Shocks contactor opened 8 gn) <br />Shocks contactor closed 10 Gn) <br />Vibrations contactor opened 2 Gn, 5...300 Hz) <br />Vibrations contactor closed 3 Gn, 5...300 Hz) | Height | 5.0000000000 in (127 mm) |
Width | 3.8 in (96 mm) | Depth | 7.1 in (181 mm) |
Net Weight | 5.71 lb(US) (2.59 kg) | Quantity per Set | Set of 1 |
Specifications may be subject to change without notice
