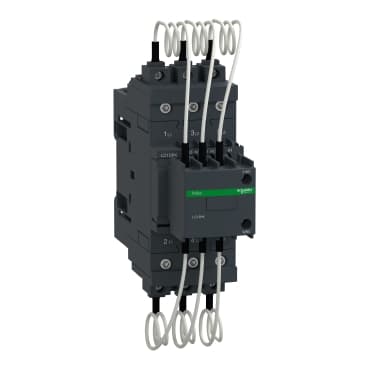

Schneider LC1DPKM7 Capacitor Contactor

Selling Points

1High Reactive Power Rating: The LC1DPKM7 supports up to 30 kVAR at 400 V/50 Hz, ensuring efficient power factor correction.
2Compact and Durable Design: Built with high-quality materials, it offers a robust and compact design suitable for challenging industrial environments.
3Versatile Mounting Options: Compatible with DIN rail and panel mounting, providing flexibility in installation for various control system setups.
4Reliable Switching Performance: Ensures smooth and reliable operation across various load conditions while minimizing voltage drops and current surges.
5Comprehensive Certifications: Meets international standards including IEC 60947-1, IEC 60947-4-1, and UL 60947-4-1 for enhanced safety and reliability.

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

Parameter	Value	Parameter	Value
Range	TeSys<br />TeSys Deca	Product name	TeSys LC1D.K<br />TeSys Deca
Product or Component Type	Capacitor duty contactor	Device short name	LC1DPK
Device Application	Control	Contactor application	Power factor correction
Utilisation category	AC-6b	Poles description	3P
power pole contact composition	3 NO	Device location in system	Inside delta interruption<br />Line interruption
[Ue] rated operational voltage	Power circuit 690 V AC 50/60 Hz	Reactive power rating	17 kvar 230 V AC 50 Hz 140 °F (60 °C)<br />30 kvar 400 V AC 50 Hz 140 °F (60 °C)<br />32 kvar 440 V AC 50 Hz 140 °F (60 °C)<br />50 kvar 690 V AC 50 Hz 140 °F (60 °C)<br />16.5 kvar 230 V AC 60 Hz 140 °F (60 °C)<br />33.3 kvar 460 V AC 60 Hz 140 °F (60 °C)<br />40 kvar 575 V AC 60 Hz 140 °F (60 °C)
Control circuit type	AC 50/60 Hz	[Uc] control circuit voltage	220 V AC 50/60 Hz
Auxiliary contact composition	1 NO + 2 NC instantaneous	Electrical durability	300000 cycles 400 V<br />200000 cycles 690 V
Mounting Support	DIN rail<br />Plate	Standards	EN/IEC 60947-1<br />EN/IEC 60947-4-1<br />UL 60947-4-1<br />CSA C22.2 No 60947-4-1<br />IEC 60335-1
Product Certifications	IECEE CB Scheme<br />UL<br />CSA<br />UKCA	Connections - terminals	Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end<br />Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: solid<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: solid<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: flexible with or without cable end<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: flexible with or without cable end
Tightening torque	Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals<br />Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors 0.002…0.04 in² (1…25 mm²)<br />Power circuit 70.8 lbf.in (8 N.m) EverLink BTR screw connectors 0.05 in² (35 mm²)	Maximum operating rate	240 cyc/h
Auxiliary contacts type	Mechanically linked 1 NO + 2 NC IEC 60947-5-1	IP degree of protection	IP20 front face IEC 60529
Ambient Air Temperature for Operation	23…140 °F (-5…60 °C)	Ambient Air Temperature for Storage	-76…176 °F (-60…80 °C)
Operating altitude	0...9842.52 ft (0...3000 m)	Height	6.5 in (166 mm)
Width	2.2 in (55 mm)	Depth	6.1 in (156 mm)
Net Weight	2.9 lb(US) (1.3 kg)

Specifications may be subject to change without notice
