Product Model

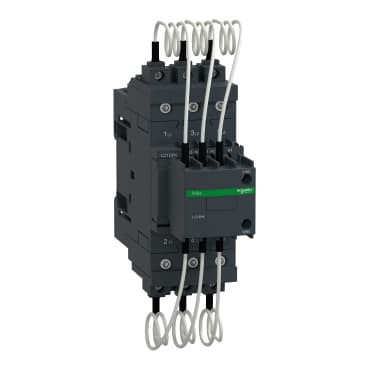

LC1DPKU7
Selling Points
- 1High Power Rating: Switches up to 30 kVAR at 400 V/50 Hz.
- 2Compact Design: Compact size with a width of 55 mm, ideal for DIN-rail mounting.
- 3Multi-Standard Certified: Compliant with IEC, UL, CSA standards for global compatibility.
- 4Reliable Operation: Operates at 240 cycles/hour and withstands ambient temperatures up to 60°C.
- 5Green Premium Product: Meets RoHS/REACh regulations, ensuring environmental sustainability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range | TeSys<br />TeSys Deca | Product name | TeSys LC1D.K<br />TeSys Deca |
Product or Component Type | Capacitor duty contactor | Device short name | LC1DPK |
Device Application | Control | Contactor application | Power factor correction |
Utilisation category | AC-6b | Poles description | 3P |
power pole contact composition | 3 NO | Device location in system | Line interruption<br />Inside delta interruption |
[Ue] rated operational voltage | Power circuit 690 V AC 50/60 Hz | Reactive power rating | 17 kvar 230 V AC 50 Hz 140 °F (60 °C)<br />30 kvar 400 V AC 50 Hz 140 °F (60 °C)<br />32 kvar 440 V AC 50 Hz 140 °F (60 °C)<br />50 kvar 690 V AC 50 Hz 140 °F (60 °C)<br />16.5 kvar 230 V AC 60 Hz 140 °F (60 °C)<br />33.3 kvar 460 V AC 60 Hz 140 °F (60 °C)<br />40 kvar 575 V AC 60 Hz 140 °F (60 °C) |
Control circuit type | AC 50/60 Hz | [Uc] control circuit voltage | 240 V AC 50/60 Hz |
Auxiliary contact composition | 1 NO + 2 NC instantaneous | Electrical durability | 300000 cycles 400 V<br />200000 cycles 690 V |
Mounting Support | DIN rail<br />Plate | Standards | EN/IEC 60947-1<br />EN/IEC 60947-4-1<br />UL 60947-4-1<br />CSA C22.2 No 60947-4-1<br />IEC 60335-1 |
Product Certifications | IECEE CB Scheme<br />UL<br />CSA<br />UKCA | Connections - terminals | Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: solid<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 2 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible without cable end<br />Control circuit: screw clamp terminals 1 0.002…0.006 in² (1…4 mm²) - cable stiffness: flexible with cable end<br />Control circuit: screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²) - cable stiffness: flexible with cable end<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: solid<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: solid<br />Power circuit: EverLink BTR screw connectors 1 0.002…0.05 in² (1…35 mm²) - cable stiffness: flexible with or without cable end<br />Power circuit: EverLink BTR screw connectors 2 0.002…0.04 in² (1…25 mm²) - cable stiffness: flexible with or without cable end |
Tightening torque | Control circuit 15.05 lbf.in (1.7 N.m) screw clamp terminals<br />Power circuit 44.3 lbf.in (5 N.m) EverLink BTR screw connectors 0.002…0.04 in² (1…25 mm²)<br />Power circuit 70.8 lbf.in (8 N.m) EverLink BTR screw connectors 0.05 in² (35 mm²) | Maximum operating rate | 240 cyc/h |
Auxiliary contacts type | Mechanically linked 1 NO + 2 NC IEC 60947-5-1 | IP degree of protection | IP20 front face IEC 60529 |
Ambient Air Temperature for Operation | 23…140 °F (-5…60 °C) | Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
Operating altitude | 0...9842.52 ft (0...3000 m) | Height | 6.5 in (166 mm) |
Width | 2.2 in (55 mm) | Depth | 6.1 in (156 mm) |
Net Weight | 2.9 lb(US) (1.3 kg) |
