Product Model

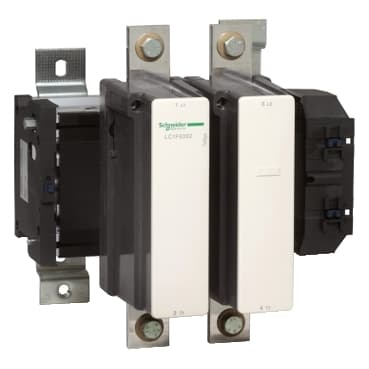

LC1F6302M7
Selling Points
- 1High-performance contactor for industrial use.
- 2Rated for 2P (2 NO) AC-1, <= 440 V 1000 A.
- 3Easy installation with drawer-mounted coil.
- 4Multi-standard certification for wide application fields.
- 5Durable design with high operating rate under high temperature.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range | TeSys | Range of Product | TeSys F |
Product or Component Type | Contactor | Device short name | LC1F |
Contactor application | Resistive load | Utilisation category | AC-1 |
Poles description | 2P | [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz<br /><= 460 V DC |
[Uc] control circuit voltage | 220 V AC 40...400 Hz | [Ie] rated operational current | 1000 A (at <104 °F (40 °C)) at <= 440 V AC AC-1 |
[Uimp] rated impulse withstand voltage | 8 kV | [Ith] conventional free air thermal current | 1000 A (at 104 °F (40 °C))<br />1250 A |
Rated breaking capacity | 5040 A conforming to IEC 60947-4-1 | [Icw] rated short-time withstand current | 5050 A 104 °F (40 °C) - 10 s<br />4400 A 104 °F (40 °C) - 30 s<br />3400 A 104 °F (40 °C) - 1 min<br />2200 A 104 °F (40 °C) - 3 min<br />1600 A 104 °F (40 °C) - 10 min |
Associated fuse rating | 1000 A gG at <= 440 V<br />630 A aM at <= 440 V | Average impedance | 0.12 mOhm - Ith 1000 A 50 Hz |
[Ui] rated insulation voltage | 1000 V IEC 60947-4-1<br /> 1500 V VDE 0110 group C | Power dissipation per pole | 120 W AC-1 |
Overvoltage category | III | power pole contact composition | 2 NO |
Control circuit voltage limits | Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C))<br />Drop-out 0.25...0.5 Uc 40...400 Hz 131 °F (55 °C)) | Mechanical durability | 5 Mcycles |
Inrush power in VA | 1650 VA, 40...400 Hz 0.9 68 °F (20 °C)) | Hold-in power consumption in VA | 22 VA, 40...400 Hz 0.9 68 °F (20 °C)) |
Maximum operating rate | 1200 cyc/h 131 °F (55 °C) | Operating time | 40...80 ms closing<br />100...200 ms opening |
Connections - terminals | Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end<br />Control circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end<br />Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end<br />Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end<br />Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)solid without cable end<br />Control circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)solid without cable end<br />Power circuit bar 2 60 x 5 mm<br />Power circuit bolted connection | Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m)<br />Power circuit 513.3 lbf.in (58 N.m) |
Mounting Support | Plate | Heat dissipation | 20 W |
Standards | EN 60947-1<br />IEC 60947-1<br />EN 60947-4-1<br />JIS C8201-4-1<br />IEC 60947-4-1 | Product Certifications | LROS (Lloyds register of shipping)<br />UL<br />DNV<br />CB<br />RINA<br />ABS<br />BV<br />RMRoS<br />CCC |
compatibility code | LC1F | Control circuit type | AC 40...400 Hz |
IP degree of protection | IP20 front face with shrouds IEC 60529<br />IP20 front face with shrouds VDE 0106 | Protective treatment | TH |
Ambient Air Temperature for Operation | 23…131 °F (-5…55 °C) | Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) |
Permissible ambient air temperature around the device | -40…158 °F (-40…70 °C) | Height | 12.0 in (304 mm) |
Width | 12.2 in (309 mm) | Depth | 10.04 in (255 mm) |
Operating altitude | 9842.52 ft (3000 m) without derating | Net Weight | 34.2 lb(US) (15.5 kg) |
Specifications may be subject to change without notice
