schneiderContactors and Protection Relays
Product Model

LC1F6309

Manufacturer

schneider

Category

Contactors and Protection Relays

Product ID

33040

In Stock
Last updated: 2025/4/20
View Specifications

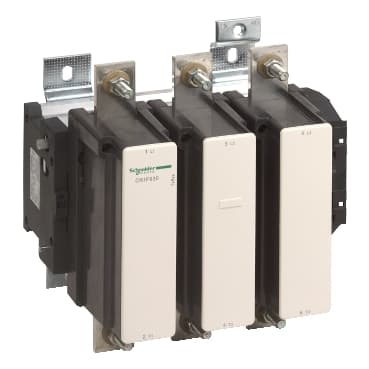

schneider LC1F6309

Selling Points

  • 1High Power Capability: Handles up to 1000V and 1000A without coil.
  • 2Reliable Motor Control: Designed for efficient and reliable motor control in industrial settings.
  • 3Compact Design: Compact size for easy integration into control panels.
  • 4Versatile Applications: Suitable for a wide range of industrial applications including HVAC and manufacturing.
  • 5Durable Construction: Built with high-quality materials for long-lasting performance.
Product Details
LC1F6309
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range
TeSys
Product name
TeSys F
Product or Component Type
Contactor
Device short name
LC1F
Contactor application
Resistive load
Utilisation category
AC-1
Poles description
3P
power pole contact composition
3 NO
[Ue] rated operational voltage
<= 1000 V AC 50/60 Hz<br /> <= 460 V DC
[Ie] rated operational current
1000 A 104 °F (40 °C)) <= 440 V AC AC-1
[Uimp] rated impulse withstand voltage
8 kV
Overvoltage category
III
[Ith] conventional free air thermal current
1000 A (at 104 °F (40 °C))<br />1250 A
Irms rated making capacity
6300 A AC conforming to IEC 60947-4-1
Rated breaking capacity
5040 A conforming to IEC 60947-4-1
[Icw] rated short-time withstand current
5050 A 104 °F (40 °C) - 10 s<br />4400 A 104 °F (40 °C) - 30 s<br />3400 A 104 °F (40 °C) - 1 min<br />2200 A 104 °F (40 °C) - 3 min<br />1600 A 104 °F (40 °C) - 10 min
Associated fuse rating
630 A aM at <= 440 V<br />1000 A gG at <= 440 V
Average impedance
0.12 mOhm - Ith 1000 A 50 Hz
[Ui] rated insulation voltage
1000 V IEC 60947-4-1<br /> 1500 V VDE 0110 group C
Power dissipation per pole
120 W AC-1<br />48 W AC-3
Mounting Support
Plate
Standards
EN 60947-4-1<br />JIS C8201-4-1<br />IEC 60947-4-1<br />EN 60947-1<br />IEC 60947-1
Product Certifications
RMRoS<br />RINA<br />DNV<br />CB<br />ABS<br />CSA<br />LROS (Lloyds register of shipping)<br />UL<br />BV
Connections - terminals
Power circuit bar 2 60 x 5 mm
Tightening torque
Power circuit 513.3 lbf.in (58 N.m)
Mechanical durability
5 Mcycles
compatibility code
LC1F
IP degree of protection
IP20 front face with shrouds IEC 60529<br />IP20 front face with shrouds VDE 0106
Protective treatment
TH
Ambient Air Temperature for Operation
23…131 °F (-5…55 °C)
Ambient Air Temperature for Storage
-76…176 °F (-60…80 °C)
Permissible ambient air temperature around the device
-40…158 °F (-40…70 °C) at Uc
Operating altitude
9842.52 ft (3000 m) without derating
Mechanical robustness
Vibrations contactor open2 Gn, 5...300 Hz<br />Vibrations contactor closed4 Gn, 5...300 Hz<br />Shocks contactor open6 Gn for 1/2 sine wave (11 ms)<br />Shocks contactor closed15 Gn for 1/2 sine wave (11 ms)
Height
12.0 in (304 mm)
Width
12.2 in (309 mm)
Depth
10.04 in (255 mm)
Net Weight
41.006 lb(US) (18.6 kg)

Specifications may be subject to change without notice
