Product Model

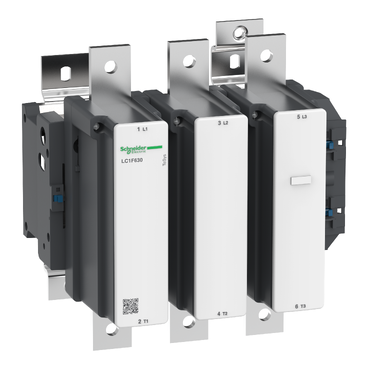

LC1F630L7
Selling Points
- 1High-performance motor control for resistive loads and motor applications.
- 23P (3 NO) configuration with AC-3 rating for robust operation.
- 3630 A current capacity at 440 V AC, suitable for demanding applications.
- 4Compatible with 208 V AC coil for efficient control circuit operation.
- 5Durable design with 5 million cycles and 1200 cycles/h operating rate.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range | TeSys | Range of Product | TeSys F |
Product or Component Type | Contactor | Device short name | LC1F |
Contactor application | Resistive load<br />Motor control | Utilisation category | AC-3<br />AC-1<br />AC-4 |
Poles description | 3P | [Ue] rated operational voltage | <= 1000 V AC 50/60 Hz<br /><= 460 V DC |
[Uc] control circuit voltage | 208 V AC 40...400 Hz | [Ie] rated operational current | 1000 A (at <104 °F (40 °C)) at <= 440 V AC AC-1<br />630 A (at <131 °F (55 °C)) at <= 440 V AC AC-3 |
[Uimp] rated impulse withstand voltage | 8 kV | [Ith] conventional free air thermal current | 1000 A (at 104 °F (40 °C))<br />1250 A |
Rated breaking capacity | 5040 A conforming to IEC 60947-4-1 | [Icw] rated short-time withstand current | 5050 A 104 °F (40 °C) - 10 s<br />4400 A 104 °F (40 °C) - 30 s<br />3400 A 104 °F (40 °C) - 1 min<br />2200 A 104 °F (40 °C) - 3 min<br />1600 A 104 °F (40 °C) - 10 min |
Associated fuse rating | 1000 A gG at <= 440 V<br />630 A aM at <= 440 V | Average impedance | 0.12 mOhm - Ith 1000 A 50 Hz |
[Ui] rated insulation voltage | 1000 V IEC 60947-4-1<br /> 1500 V VDE 0110 group C | Power dissipation per pole | 120 W AC-1<br />48 W AC-3 |
Overvoltage category | III | power pole contact composition | 3 NO |
Motor power kW | 335 kW at 380...400 V AC 50/60 Hz (AC-3)<br />375 kW at 415 V AC 50/60 Hz (AC-3)<br />400 kW at 440 V AC 50/60 Hz (AC-3)<br />400 kW at 500 V AC 50/60 Hz (AC-3)<br />450 kW at 660...690 V AC 50/60 Hz (AC-3)<br />450 kW at 1000 V AC 50/60 Hz (AC-3)<br />200 kW at 220...230 V AC 50/60 Hz (AC-3)<br />100 kW at 400 V AC 50/60 Hz (AC-4) | Control circuit voltage limits | Operational 0.85...1.1 Uc 40...400 Hz 131 °F (55 °C))<br />Drop-out 0.25...0.5 Uc 40...400 Hz 131 °F (55 °C)) |
Mechanical durability | 5 Mcycles | Inrush power in VA | 1650 VA, 40...400 Hz 0.9 68 °F (20 °C)) |
Hold-in power consumption in VA | 22 VA, 40...400 Hz 0.9 68 °F (20 °C)) | Maximum operating rate | 1200 cyc/h 131 °F (55 °C) |
Operating time | 40...80 ms closing<br />100...200 ms opening | Connections - terminals | Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible without cable end<br />Control circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)flexible without cable end<br />Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)flexible with cable end<br />Control circuit screw clamp terminals 2 0.002…0.004 in² (1…2.5 mm²)flexible with cable end<br />Control circuit screw clamp terminals 1 0.002…0.006 in² (1…4 mm²)solid without cable end<br />Control circuit screw clamp terminals 2 0.002…0.006 in² (1…4 mm²)solid without cable end<br />Power circuit bar 2 60 x 5 mm<br />Power circuit bolted connection |
Tightening torque | Control circuit 10.6 lbf.in (1.2 N.m)<br />Power circuit 513.3 lbf.in (58 N.m) | Mounting Support | Plate |
Heat dissipation | 20 W | Standards | IEC 60947-1<br />EN 60947-4-1<br />JIS C8201-4-1<br />EN 60947-1<br />IEC 60947-4-1 |
Product Certifications | CB<br />UL<br />ABS<br />RMRoS<br />CCC<br />DNV<br />LROS (Lloyds register of shipping)<br />RINA<br />BV<br />UKCA | compatibility code | LC1F |
Control circuit type | AC 40...400 Hz | IP degree of protection | IP20 front face with shrouds IEC 60529<br />IP20 front face with shrouds VDE 0106 |
Protective treatment | TH | Ambient Air Temperature for Operation | 23…131 °F (-5…55 °C) |
Ambient Air Temperature for Storage | -76…176 °F (-60…80 °C) | Permissible ambient air temperature around the device | -40…158 °F (-40…70 °C) |
Height | 12.0 in (304 mm) | Width | 12.2 in (309 mm) |
Depth | 10.04 in (255 mm) | Operating altitude | 9842.52 ft (3000 m) without derating |
Net Weight | 41.006 lb(US) (18.6 kg) |
