Product Model

PMEPXM0100H

Manufacturer

schneider

Category

PLC/PAC and Controllers

Product ID

33327

In Stock
Last updated: 2025/4/27
View Specifications

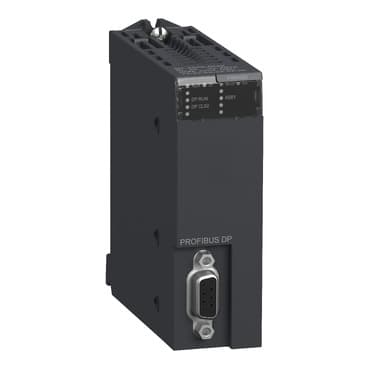

schneider PMEPXM0100H

Selling Points

  • 1Robust Design for Severe Environments: Built to withstand extreme temperatures and humidity, ensuring reliable operation in harsh industrial settings.
  • 2High Transmission Rates: Supports transmission rates up to 12 Mbit/s over 100 meters, ensuring efficient data exchange.
  • 3Profibus DP Compatibility: Compatible with Profibus DP, a widely used industrial communication protocol, for seamless integration.
  • 4Conformal Coating for Protection: Equipped with conformal coating for enhanced protection against environmental factors like dust and moisture.
  • 5Compliance with International Standards: Meets IEC standards for electromagnetic compatibility and low voltage directives, ensuring safety and reliability.
Product Details
PMEPXM0100H
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M580
Product or Component Type
Profibus communication module
Range Compatibility
Modicon M580
Physical interface
DB9 connector
Bus type
Profibus DP
Transmission support medium
Profibus DP twisted shielded pairs cable
Transmission rate
9.6 kbit/s, 3937.008 ft (1200 m)<br />19.2 kbit/s, 3937.008 ft (1200 m)<br />93.75 kbit/s, 3937.008 ft (1200 m)<br />187.5 kbit/s, 3280.8 ft (1000 m)<br />500 kbit/s, 1312.3 ft (400 m)<br />1.5 Mbit/s, 656.2 ft (200 m)<br />3 Mbit/s, 328.08 ft (100 m)<br />12 Mbit/s, 328.08 ft (100 m)
Number of server device(s)
125
Communication service
Implicit exchange of process data
Integrated connection type
Profibus DP - 1 SUB-D 9-pin female
[Us] rated supply voltage
24 V DC internal power supply via rack
Current consumption
43 mA 24 V typical<br />70 mA 24 V maximum
Power consumption in W
1040 mW 24 V typical<br />1690 mW 24 V maximum
Isolation voltage
1500 V 1 min 50/60 Hz
Module format
Standard
Net Weight
0.595 lb(US) (0.270 kg)
Ambient Air Temperature for Operation
-4…158 °F (-20…70 °C)
Ambient Air Temperature for Storage
-40…185 °F (-40…85 °C)
Relative Humidity
10…95 %
Operating altitude
<= 6561.68 ft (2000 m)
Protective treatment
Conformal coating
Directives
2014/35/EU - low voltage directive<br />2014/30/EU - electromagnetic compatibility

Specifications may be subject to change without notice
