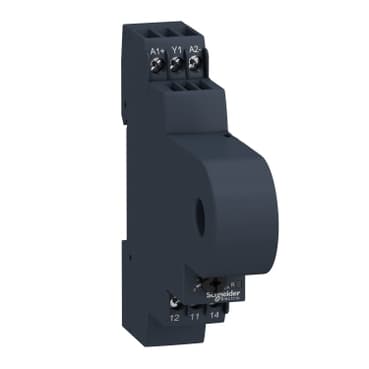

Product Model
RM17JC00MW
Selling Points
- 1Overcurrent Detection: Detects overcurrent conditions to ensure safe operation.
- 2DIN Rail Mounting: Easily mountable on DIN rail for compact installations.
- 3Wide Voltage Range: Compatible with 24-240VAC/VDC coil voltage.
- 4High Reliability: Self-extinguishing plastic housing for enhanced safety.
- 5LED Display: Features an LED display for clear operational status indication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Control Relays | Relay Type | Current control relay |
Product or Component Type | Current control relay | Relay name | RM17JC |
Relay monitored parameters | Overcurrent detection | time delay | Without |
Switching capacity in VA | 1250 VA | Minimum switching current | 10 mA 5 V DC |
Maximum power consumption in VA | 3 VA | Measurement range | 2...20 A AC |
Utilisation category | AC-12 IEC 60947-5-1<br />AC-13 IEC 60947-5-1<br />AC-14 IEC 60947-5-1<br />AC-15 IEC 60947-5-1<br />DC-12 IEC 60947-5-1<br />DC-13 IEC 60947-5-1<br />DC-14 IEC 60947-5-1 | Contacts type and composition | 1 C/O |
Maximum switching voltage | 250 V AC/DC | [Us] Rated Supply Voltage | AC/DC |
Supply voltage limits | 20.4…264 V AC/DC | operating voltage tolerance | - 15 % + 10 % Un |
Maximum power consumption in W | 1 W | Control circuit frequency | 40...70 Hz sinusoidal |
Output contacts | 1 C/O | Nominal output current | 5 A |
Maximum measuring cycle | 30 ms measurement cycle as true rms value | Hysteresis | 15 % fixed threshold setting |
delay at power up | 0.5 s | Measurement accuracy | +/- 10 % of the full scale value |
Repeat accuracy | +/- 0.5 % input and measurement circuit | Measurement error | +/- 0.05 %/°C with temperature variation<br />< 1 % over the whole range with voltage variation |
Response time | < 200 ms (in the event of a fault) | Polarity | Yes DC |
Threshold setting | 10...100 % | Input current | 100000 mA permanent at 25 °C<br />300000 mA non repetitive < 3 s at 25 °C |
marking | CE : 73/23/EEC<br />CE : EMC 89/336/EEC | Overvoltage category | III IEC 60664-1 |
Insulation resistance | > 500 MOhm 500 V DC IEC 60255-5<br />> 500 MOhm 500 V DC IEC 60664-1 | [Ui] rated insulation voltage | 400 V IEC 60664-1 |
Insulation | Between supply and measurement | Operating position | Any position without derating |
Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end<br />Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end<br />Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end | Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 |
Housing material | Self-extinguishing plastic | Local signalling | for power ON LED (green)<br /> for relay ON LED (yellow) |
Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 | Electrical durability | 100000 cycles |
Mechanical durability | 30000000 cycles | Operating rate | <= 360 operations/hour full load |
[Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered | Contacts material | Cadmium free |
Width | 0.7 in (17.5 mm) | Control Type | Without test button |
Net Weight | 0.29 lb(US) (0.13 kg) | Immunity to microbreaks | 10 ms |
Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4<br />Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3<br />Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 | Standards | IEC 60255-6 |
Product Certifications | GL<br />C-tick<br />GOST<br />UL<br />CSA | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient air temperature for operation | -4…122 °F (-20…50 °C) | Relative humidity | 95 % 131 °F (55 °C) IEC 60068-2-30 |
Vibration resistance | 0.35 mm 5…57.6 Hz)IEC 60068-2-6<br />1 gn 57.6…150 Hz)IEC 60255-21-1 | Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
IP degree of protection | IP20 IEC 60529 terminals)<br />IP30 IEC 60529 casing) | Pollution degree | 3 IEC 60664-1 |
Dielectric test voltage | 2 kV AC 50 Hz | Non-dissipating shock wave | 4 kV |
Specifications may be subject to change without notice
