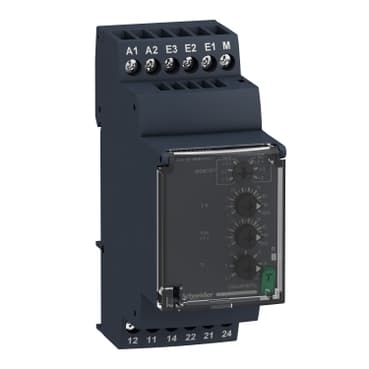

Product Model
RM35JA32MRSP01
Selling Points
- 1High Accuracy & Reliability: Designed for precise control and long-lasting performance.
- 2Versatile Voltage Range: Compatible with 24VDC and 240VAC, ensuring broad application flexibility.
- 3DIN Rail Mounting: Easy installation on standard DIN rails for streamlined panel design.
- 4Advanced Contact Form: Features 2C/O contacts for reliable switching and monitoring.
- 5LED Display & IP Protection: Includes an LED display and IP20/IP30/IP50 enclosures for enhanced visibility and protection.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Relay | Relay Type | Current control relay |
Product or Component Type | Modular measurement and control relays | Relay name | RM35JA |
Relay monitored parameters | Overcurrent or undercurrent in window mode<br />Overcurrent or undercurrent detection | time delay | Adjustable 0.1...30 s, +/- 10 % of the full scale value on crossing the threshold Tt |
Switching capacity in VA | 2000 VA | Minimum switching current | 10 mA 5 V DC |
Maximum switching current | 8 A AC | Maximum power consumption in VA | 3.5 VA |
Measurement range | 0.15...1.5 A E1-M terminals<br />0.5...5 A E2-M terminals<br />1.5...15 A E3-M terminals<br />150 mA...15 A current AC/DC 50/60 Hz | Utilisation category | AC-15 IEC 60947-5-1<br />DC-13 IEC 60947-5-1<br />AC-1 IEC 60947-4-1<br />DC-1 IEC 60947-4-1 |
Reset time | 1500 ms at maximum voltage | Maximum switching voltage | 250 V AC |
Supply voltage limits | 20.4…264 V AC/DC | operating voltage tolerance | - 15 % + 10 % Un |
Maximum power consumption in W | 1.5 W DC | Resistance across terminals | 0.005 Ohm E3-M terminals<br />0.015 Ohm E2-M terminals<br />0.05 Ohm E1-M terminals |
Output contacts | 2 C/O | Nominal output current | 8 A |
Maximum measuring cycle | 100 ms measurement cycle as true rms value | Internal input resistance | 0.015 Ohm<br />0.005 Ohm<br />0.05 Ohm |
Setting accuracy of the switching threshold | +/- 10 % of the full scale | Switching threshold drift | <= 0.05 % per degree centigrade depending permissible ambient air temperature<br /><= 1 % within the supply voltage range |
Setting accuracy of time delay | 10 P | Time delay drift | <= 0.05 % per degree centigrade depending permissible ambient air temperature<br /><= 1 % within the supply voltage range |
Hysteresis | 5…50 % adjustable threshold setting<br />3 % fixed full scale for window mode | delay at power up | 0.3 s |
Repeat accuracy | +/- 0.5 % input and measurement circuit<br />+/- 2 % time delay | Measurement error | < 1 % over the whole range with voltage variation<br />0.05 %/°C with temperature variation |
Response time | <= 500 ms (on crossing the threshold) | Threshold setting | 10...100 % |
Overvoltage category | III IEC 60664-1<br />III UL 508 | Insulation resistance | > 100 MOhm 500 V DC IEC 60255-27 |
Insulation | Between supply and measurement | Connections - terminals | Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end<br />Screw terminals, 1 x 0.5...1 x 3.3 mm² AWG 20...AWG 12) solid without cable end<br />Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end |
Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 | Housing material | Self-extinguishing plastic |
Local signalling | for relay ON LED (yellow)<br /> for power ON LED (green) | Mounting support | 35 mm DIN rail conforming to IEC 60715 |
Electrical durability | 100000 cycles | Mechanical durability | 10000000 cycles |
Safety reliability data | MTTFd = 296.8 years<br />B10d = 270000 | Contacts material | Cadmium free |
Width | 1.4 in (35 mm) | Net Weight | 0.26 lb(US) (0.12 kg) |
Immunity to microbreaks | 50 ms | Electromagnetic compatibility | Immunity for residential, commercial and light-industrial environments conforming to IEC 61000-6-1<br />Immunity for industrial environments conforming to IEC 61000-6-2<br />Emission standard for industrial environments conforming to IEC 61000-6-4<br />Electrostatic discharge - test level: 6 kV level 3 (contact discharge) conforming to IEC 61000-4-2<br />Electrostatic discharge - test level: 8 kV level 3 (air discharge) conforming to IEC 61000-4-2<br />Radiated radio-frequency electromagnetic field immunity test - test level: 10 V/m level 3 conforming to IEC 61000-4-3<br />Electrical fast transient/burst immunity test - test level: 4 kV level 4 (direct) conforming to IEC 61000-4-4<br />Electrical fast transient/burst immunity test - test level: 2 kV level 4 (capacitive coupling) conforming to IEC 61000-4-4<br />Surge immunity test - test level: 4 kV level 4 (common mode) conforming to IEC 61000-4-5<br />Surge immunity test - test level: 2 kV level 4 (differential mode) conforming to IEC 61000-4-5<br />Conducted and radiated emissions class B group 1 conforming to CISPR 11<br />Conducted and radiated emissions class B conforming to CISPR 22<br />Emission standard for residential, commercial and light-industrial environments (except radiated emission) conforming to IEC 61000-6-3 |
Standards | IEC 60255-1 | Product Certifications | CE<br />UL<br />CSA |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient air temperature for operation | -4…122 °F (-20…50 °C) 60 Hz<br /> -4…140 °F (-20…60 °C) 50 Hz |
Environmental characteristic | 3K3 C | Relative humidity | 93…97 % 77…131 °F (25…55 °C) IEC 60068-2-30 |
Vibration resistance | 0.075 mm 10…58.1 Hz) not in operation IEC 60068-2-6<br />1 gn 10…58.1 Hz) not in operation IEC 60068-2-6<br />0.035 mm 58.1…150 Hz) in operation IEC 60068-2-6<br />0.5 gn 58.1…150 Hz) in operation IEC 60068-2-6 | Shock resistance | 15 gn 11 ms) not in operation IEC 60068-2-27<br />5 gn 11 ms) in operation IEC 60068-2-27 |
IP degree of protection | IP20 IEC 60529 terminals)<br />IP50 IEC 60529 front panel)<br />IP30 IEC 60529 housing) | Pollution degree | 3 IEC 60664-1<br />3 UL 508 |
Dielectric test voltage | 2.5 kV AC 50 Hz, 1 min IEC 60255-27 |
Specifications may be subject to change without notice
