Product Model

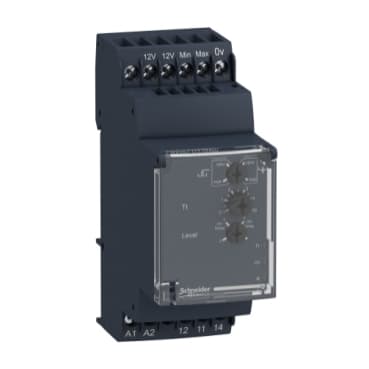

RM35LV14MW
Selling Points
- 1Flexible Installation: 35mm width for easy installation on DIN rail.
- 2Adjustable Time Delay: 0.1-5 seconds with ±10% accuracy.
- 3High Switching Capacity: 1250 VA with a maximum switching current of 5 A AC/DC.
- 4Multi-Functional Control: Ideal for monitoring electrical values in various industrial applications.
- 5Reliable Operation: 100,000 electrical durability cycles and 30 million mechanical durability cycles.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Control Relays | Relay Type | Level control relay |
Product or Component Type | Level control relay | Relay name | RM35L |
Relay monitored parameters | Detection by discrete sensors | time delay | Adjustable 0.1...5 s, +/- 10 % Tt- time delay upon fault |
Switching capacity in VA | 1250 VA | Minimum switching current | 10 mA 5 V DC |
Maximum switching current | 5 A AC/DC | power consumption | 1.5 W DC |
Utilisation category | AC-12 IEC 60947-5-1<br />AC-13 IEC 60947-5-1<br />AC-14 IEC 60947-5-1<br />AC-15 IEC 60947-5-1<br />DC-12 IEC 60947-5-1<br />DC-13 IEC 60947-5-1 | Contacts type and composition | 2 C/O |
Reset time | 1000 ms<br />4000 ms | Maximum switching voltage | 250 V AC/DC |
[Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered | Supply voltage limits | 20.4…264 V AC/DC |
operating voltage tolerance | - 15 % + 10 % Un | Output contacts | 1 C/O |
Nominal output current | 5 A | delay at power up | 0.5 s |
Measurement accuracy | +/- 10 % of the full scale value<br />+/- 20 % for the HS range | Repeat accuracy | +/- 2 % time delay |
Measurement error | 0.5 %/°C with temperature variation | Sensitivity adjustment | 5…100 % |
Maximum supply current for sensors | 40 mA | Cable capacitance | 10 nF probe cable |
marking | CE : EMC 89/336/EEC<br />CE : 73/23/EEC | Overvoltage category | III IEC 60664-1 |
Insulation resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5<br />> 500 MOhm 500 V DC between measurement and relay output IEC 60664-1<br />> 1 MOhm 500 V DC between supply and measurement IEC 60255-5<br />> 500 MOhm 500 V DC between supply and relay output IEC 60664-1<br />> 500 MOhm 500 V DC between measurement and relay output IEC 60255-5<br />> 1 MOhm 500 V DC between supply and measurement IEC 60664-1 | [Ui] rated insulation voltage | 250 V IEC 60664-1 |
Operating position | Any position without derating | Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end<br />Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end<br />Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end |
Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 | Housing material | Self-extinguishing plastic |
Local signalling | for relay ON LED (yellow)<br /> for power ON LED (green)<br /> for timer ON LED (yellow) | Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
Electrical durability | 100000 cycles | Mechanical durability | 30000000 cycles |
Operating rate | <= 360 operations/hour full load | Safety reliability data | B10d = 170000<br />MTTFd = 182.6 years |
Width | 1.4 in (35 mm) | Control Type | Without test button |
Immunity to microbreaks | 100 ms DC<br />90 ms AC | Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4<br />Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3<br />Immunity for industrial environments conforming to NF EN/IEC 61000-6-2 |
Standards | IEC 60255-6 | Product Certifications | GOST<br />CSA<br />UL<br />GL<br />C-tick |
Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) | Ambient air temperature for operation | -4…122 °F (-20…50 °C) |
Relative humidity | 95 % 131 °F (55 °C) IEC 60068-2-30 | IP degree of protection | IP20 IEC 60529 terminals)<br />IP30 IEC 60529 casing) |
Pollution degree | 3 IEC 60664-1 | Dielectric test voltage | 2 kV AC 50 Hz, 1 min IEC 60255-5<br />2 kV AC 50 Hz, 1 min IEC 60664-1 |
Specifications may be subject to change without notice
