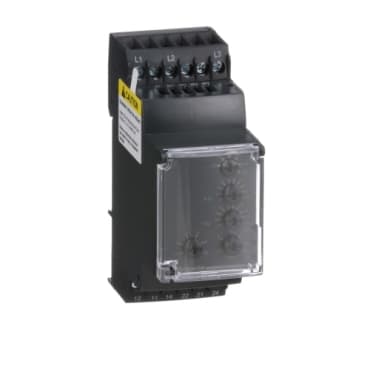

schneider RM35TF30

Selling Points

  • 1Multi-Function Monitoring: The RM35TF30 monitors phase sequence, phase failure, asymmetry, overvoltage, and undervoltage.
  • 2DIN Rail Mounting: Compact design for easy DIN Rail mounting.
  • 3Wide Voltage Range: Operates between 220V to 480V AC.
  • 4Adjustable Time Delay: Adjustable time delay from 0.1 to 10 seconds.
  • 5Compliance with Standards: Meets CE, CSA, RoHS Compliant, UL standards for reliability and safety.
Product Details
RM35TF30
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Harmony Control Relays
Relay Type
Multifunction control relay
Product Specific Application
For 3-phase supply
Relay name
RM35TF
Relay monitored parameters
Undervoltage and overvoltage in window mode<br />Phase sequence<br />Phase failure detection<br />Asymmetry
Measurement range
220...480 V AC
time delay
Adjustable 0.1...10 s, +/- 10 % of the full scale value Tt- time delay upon fault
Output contacts
2 C/O
Nominal output current
5 A
Contacts type and composition
2 C/O
[Uc] control circuit voltage
220...480 V
[Un] rated nominal voltage
, self-powered
Supply voltage limits
194…528 V AC, 3 phase
Reset time
1500 ms at 480 V
Maximum switching voltage
250 V AC<br />250 V DC
Switching capacity in VA
1250 VA
Minimum switching current
10 mA 5 V DC
Maximum switching current
5 A AC<br />5 A DC
Control circuit voltage limits
- 12 % + 10 % Un
Power consumption in VA
0…22 VA 400 V AC 50 Hz
Voltage detection threshold
< 194 V
Control circuit frequency
50...60 Hz +/- 10 %
Measurement voltage limits
176…528 V AC
Hysteresis
2 %
delay at power up
650 ms
Maximum measuring cycle
140 ms measurement cycle as true rms value
Threshold adjustment voltage
2...20 % of Un selected<br />-12...-2 % in the range 220 V AC<br />+2...+10 % in the range 480 V AC
Voltage range
220...480 V phase to phase
Adjustment of asymmetry threshold
5...15 % of Un selected
Repeat accuracy
0.3 % time delay<br />0.5 % input and measurement circuit
Measurement error
< 1 % over the whole range with voltage variation<br />0.05 %/°C with temperature variation
Response time
< 200 ms (in the event of a fault)
Insulation resistance
> 500 MOhm 500 V DC IEC 60255-5<br />> 500 MOhm 500 V DC IEC 60664-1
[Ui] rated insulation voltage
400 V IEC 60664-1
Supply frequency
50/60 Hz +/- 10 %
Operating position
Any position without derating
Connections - terminals
Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end<br />Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end<br />Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Tightening torque
5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1
Housing material
Self-extinguishing plastic
Local signalling
for power ON LED (green)<br /> for relay ON LED (yellow)<br /> for fault LED (yellow)
Mounting support
35 mm symmetrical DIN rail conforming to IEC 60715
Electrical durability
100000 cycles
Mechanical durability
30000000 cycles
Operating rate
<= 360 operations/hour full load
Utilisation category
AC-12 IEC 60947-5-1<br />AC-13 IEC 60947-5-1<br />AC-14 IEC 60947-5-1<br />AC-15 IEC 60947-5-1<br />DC-12 IEC 60947-5-1<br />DC-13 IEC 60947-5-1
Safety reliability data
MTTFd = 399.5 years<br />B10d = 360000
Width
1.4 in (35 mm)
Net Weight
0.29 lb(US) (0.13 kg)
Control Type
Without test button
Electromagnetic compatibility
Emission standard for industrial environments conforming to IEC 61000-6-4<br />Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3<br />Immunity for industrial environments conforming to IEC 61000-6-2
Standards
IEC 60255-1
Product Certifications
GL<br />UL<br />CSA<br />GOST<br />C-tick
marking
CE
Directives
89/336/EEC - electromagnetic compatibility<br />73/23/EEC - low voltage directive
Ambient Air Temperature for Storage
-40…158 °F (-40…70 °C)
Ambient air temperature for operation
-4…122 °F (-20…50 °C)
Relative humidity
95 % 131 °F (55 °C) IEC 60068-2-30
Vibration resistance
0.35 mm 5…57.6 Hz)IEC 60068-2-6<br />1 gn 57.6…150 Hz)IEC 60255-21-1
Shock resistance
15 gn 11 ms IEC 60255-21-1
IP degree of protection
IP20 IEC 60529 terminals)<br />IP30 IEC 60529 casing)
Pollution degree
3 IEC 60664-1
Overvoltage category
III IEC 60664-1
Dielectric test voltage
2 kV AC 50 Hz, 1 min
Non-dissipating shock wave
4 kV

Specifications may be subject to change without notice
