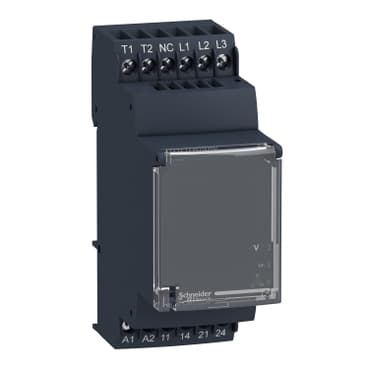

Product Model
RM35TM50MW
Selling Points
- 1Compatible with 24-240V AC/DC, suitable for various system requirements.
- 2Features 2NO contacts for independent control of two devices or motors.
- 3Includes temperature monitoring capability to prevent operation at undesirable temperature levels.
- 4Known for its high quality and reliability from Schneider Electric, a globally recognized leader in automation and electrical solutions.
- 5Modular design with 35mm width, allowing easy installation on DIN rail, ideal for flexible and precise settings in industrial automation applications.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Control Relays | Relay Type | Motor temperature control relay |
Product or Component Type | Motor temperature control relay | Product Specific Application | For 3-phase supply |
Relay name | RM35TM | Relay monitored parameters | Phase sequence<br />Motor temperature via PTC probe<br />Phase failure detection |
Measurement range | 208...480 V AC<br />15...3100 Ohm | time delay | Without |
Output contacts | 2 NO | Nominal output current | 5 A |
Contacts type and composition | 2 NO | [Uc] control circuit voltage | <= 3.6 V temperature control circuit T1-T2 terminals open) |
[Un] rated nominal voltage | 24...240 V AC/DC 50/60 Hz, non self-powered | Supply voltage limits | 20.4…264 V AC<br />20.4…264 V DC |
Reset time | 10000 ms output | Maximum switching voltage | 250 V AC<br />250 V DC |
Switching capacity in VA | 1250 VA | Minimum switching current | 10 mA 5 V DC |
Maximum switching current | 5 A AC<br />5 A DC | Power consumption in VA | 0…4 VA 24...240 V AC |
power consumption | 0.5 W DC | Control circuit frequency | 50...60 Hz +/- 10 % |
Resistance across terminals | 602 mOhm | Measurement voltage limits | 176…528 V AC |
delay at power up | 500 ms | Voltage range | 176...528 V |
Response time | > 50 ms (input Y1 (contact Y1-T1) and push-button) | Short-circuit current | 0.007 A temperature sensing circuit T1-T2 terminals short circuited) |
Maximum resistance | 1500 Ohm temperature sensor 68 °F (20 °C) | Tripping threshold | 3100 Ohm +/- 10 % temperature control circuit |
Reset threshold | 1650 Ohm +/- 10 % temperature control circuit | Insulation resistance | > 500 MOhm 500 V DC between supply and relay output IEC 60255-5<br />> 500 MOhm 500 V DC between measurement and relay output IEC 60664-1<br />> 1 MOhm 500 V DC between supply and measurement IEC 60255-5<br />> 500 MOhm 500 V DC between supply and relay output IEC 60664-1<br />> 500 MOhm 500 V DC between measurement and relay output IEC 60255-5<br />> 1 MOhm 500 V DC between supply and measurement IEC 60664-1 |
[Ui] rated insulation voltage | 400 V IEC 60664-1 | Supply frequency | 50/60 Hz +/- 10 % |
Operating position | Any position without derating | Connections - terminals | Screw terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end<br />Screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end<br />Screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end |
Tightening torque | 5.3…8.9 lbf.in (0.6…1 N.m) IEC 60947-1 | Housing material | Self-extinguishing plastic |
Local signalling | for power ON LED (green)<br /> for phase of relay (R2) LED (yellow)<br /> for temperature of relay (R1) LED (yellow) | Mounting support | 35 mm symmetrical DIN rail conforming to IEC 60715 |
Electrical durability | 10000 cycles | Mechanical durability | 30000000 cycles |
Operating rate | <= 360 operations/hour full load | Utilisation category | AC-12 IEC 60947-5-1<br />AC-13 IEC 60947-5-1<br />AC-14 IEC 60947-5-1<br />AC-15 IEC 60947-5-1<br />DC-12 IEC 60947-5-1<br />DC-13 IEC 60947-5-1 |
Width | 1.4 in (35 mm) | Net Weight | 0.29 lb(US) (0.13 kg) |
Control Type | Without test button | Immunity to microbreaks | 20 ms 20.4 V |
Electromagnetic compatibility | Emission standard for industrial environments conforming to IEC 61000-6-4<br />Emission standard for residential, commercial and light-industrial environments conforming to IEC 61000-6-3<br />Immunity for industrial environments conforming to IEC 61000-6-2 | Standards | IEC 60255-6<br />IEC 60034-11-2 |
Product Certifications | GL<br />UL<br />GOST<br />C-tick<br />CSA | marking | CE |
Directives | 73/23/EEC - low voltage directive<br />89/336/EEC - electromagnetic compatibility | Ambient Air Temperature for Storage | -40…158 °F (-40…70 °C) |
Ambient air temperature for operation | -4…122 °F (-20…50 °C) | Relative humidity | 95 % 131 °F (55 °C) IEC 60068-2-30 |
Vibration resistance | 0.35 mm 5…57.6 Hz)IEC 60068-2-6<br />1 gn 57.6…150 Hz)IEC 60255-21-1 | Shock resistance | 15 gn 11 ms IEC 60255-21-1 |
IP degree of protection | IP20 IEC 60529 terminals)<br />IP30 IEC 60529 casing) | Pollution degree | 3 IEC 60664-1 |
Overvoltage category | III IEC 60664-1 | Dielectric test voltage | 2 kV AC 50 Hz, 1 min |
Non-dissipating shock wave | 4 kV |
Specifications may be subject to change without notice
