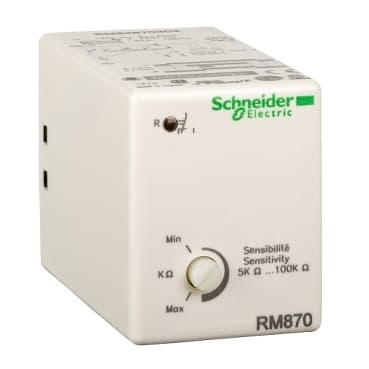

Product Model
RM84870403
Selling Points
- 1Industrial-grade reliability: Designed for demanding industrial environments.
- 2Easy installation: Plug-in design with 11 pins for straightforward setup.
- 3Accurate detection: Uses resistive probes for precise liquid level monitoring.
- 4Compact size: Measures 1.54 inches wide, perfect for space-constrained installations.
- 5Compliance certifications: Meets CSA and cULus standards for safety and performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Zelio Control | Relay Type | Plug-in liquid level control relay |
Product or Component Type | Industrial measurement and control relays | Relay name | RM84870 |
Relay monitored parameters | Detection by resistive probes | power consumption | 3 VA |
Pin number | 11 | Voltage range | 0.85...1.15 x Un |
Maximum electrode voltage | 24 V AC 50/60 Hz | Maximum electrode current | 1 mA 50/60 Hz |
Measurement accuracy | 0...30 % | Maximum cable capacity | 0 mF |
Response time | 300 ms high level<br />500 ms low level | Contacts type and composition | 1 C/O relay output, AgCdO |
Maximum output current | 8 mA AC AC-1 resistive | Isolation voltage | 2500 V AC contacts and electrodes from the supply |
Sensitivity scale | 5...100 kOhm | Width | 1.5 in (39 mm) |
Product Certifications | CSA<br />cULus | Ambient Air Temperature for Storage | -22…158 °F (-30…70 °C) |
Ambient air temperature for operation | -4…140 °F (-20…60 °C) |
Specifications may be subject to change without notice
