Product Model
RM84873299
Selling Points

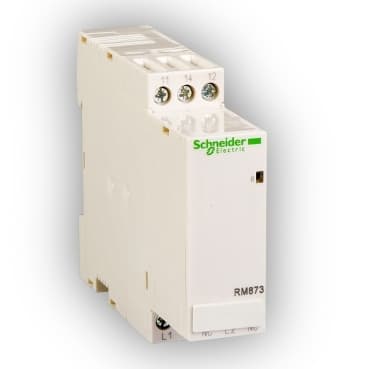

- 1New NFP Phase Control Relay: Precise control for industrial applications.
- 2Factory Packing: Ensures the product is sealed and ready for use.
- 3Worldwide Delivery: Convenient shipping from the Netherlands.
- 4Technical Specifications: Includes manufacturer details and SKU for easy identification.
- 530-Day Returns Policy: Risk-free purchase with a 30-day return option.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Zelio Control | Relay Type | Control relay |
Product or Component Type | Industrial measurement and control relays | Product Specific Application | For 3-phase supply |
Relay name | RM84873 | Relay monitored parameters | Phase failure detection<br />Phase sequence |
Contacts type and composition | 1 C/O | Maximum switching voltage | 250 V AC<br />400 V AC |
Minimum switching current | 10 mA 5 V DC | Control circuit frequency | 50...60 Hz +/- 10 % |
Output contacts | 1 C/O | Nominal output current | 8 A |
delay at power up | 250 ms | marking | CE |
Connections - terminals | Screw terminals, 2 x 2.5 mm² AWG 14) without cable end<br />Screw terminals, 2 x 1.5 mm² AWG 16) with cable end<br />Screw terminals, 1 x 4 mm² AWG 12) with cable end | Tightening torque | 8.9 lbf.in (1 N.m) IEC 60947-1 |
Housing material | Self-extinguishing | Local signalling | for relay ON LED (yellow) |
Electrical durability | 100000 cycles | Mechanical durability | 20000000 cycles |
Height | 3.9 in (99.3 mm) | Width | 0.9 in (22.5 mm) |
Depth | 3.9 in (100 mm) | Net Weight | 0.2 lb(US) (0.1 kg) |
Directives | 89/336/EEC - electromagnetic compatibility<br />73/23/EEC - low voltage directive | Ambient Air Temperature for Storage | -22…158 °F (-30…70 °C) |
Ambient air temperature for operation | -4…122 °F (-20…50 °C) | IP degree of protection | IP20 IEC 60529 terminals)<br />IP40 IEC 60529 enclosure) |
Dielectric test voltage | 2.5 kV 50 Hz, 1 min IEC 60255-5 |
Specifications may be subject to change without notice
