Product Model

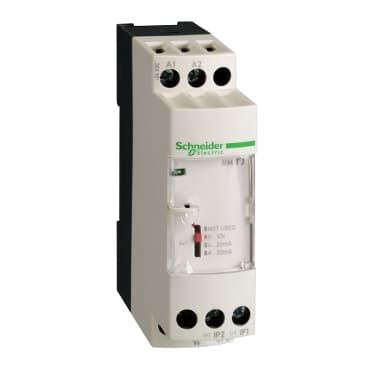

RMTJ60BD
Selling Points
- 1High Accuracy: Measures temperature with an accuracy of +/- 1% of full scale at 20°C.
- 2Versatile Signal Range: Supports 0 to 20 mA and 4 to 20 mA signal ranges.
- 3Robust Protection: Equipped with reverse polarity protection, short circuit protection, and overvoltage protection.
- 4Wide Temperature Range: Operates from 0 to 50°C or 0 to 60°C, depending on the configuration.
- 5Compact Design: Dimensions are 30.7 in H x 3.15 in W x 2.01 in D, making it easy to integrate into various systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Analog | Product or Component Type | Converter for thermocouples |
Analogue input type | Thermocouple 0...300 °C/32...572 °F thermocouple J IEC 60584 | Analogue output type | Current 0...20 mA <= 500 Ohm<br />Current 4...20 mA <= 500 Ohm<br />Voltage 0...10 V >= 100 kOhm |
Protection Type | Overvoltage protection on output (+/- 30 V)<br />Reverse polarity protection on output<br />Short-circuit protection on output | abnormal analogue output voltage | -15...-11 V no input or input wire broken<br />11...15 V no input or input wire broken |
abnormal analogue output current | -30…0 mA no input or input wire broken | [Us] rated supply voltage | 24 V DC +/- 20 %, non isolated |
Current consumption | <= 40 mA voltage output<br /><= 60 mA current output | Local signalling | for power ON LED (green) |
Measurement error | +/- 1 % of full scale 20 °C temporary performance degradation when subject to electromagnetic interference) | Repeat accuracy | +/- 0.25 % full scale 20 °C<br />+/- 0.8 % full scale 60 °C |
Temperature Coefficient | 200 ppm/°C | Cold junction compensation | Built-in between 0 and 60 °C |
clamping connection capacity | 2 x 1.5 mm²<br />1 x 2.5 mm² | Tightening torque | 5.3…9.7 lbf.in (0.6…1.1 N.m) |
marking | CE | Surge withstand | 0.5 kV 1.2/50 µs IEC 61000-4-5 |
[Ui] Rated Insulation Voltage | 2 kV | Fixing mode | By screws (mounting plate)<br />Clip-on (35 mm symmetrical DIN rail) |
Safety reliability data | B10d = 45447<br />MTTFd = 49.2 years | Net Weight | 0.26 lb(US) (0.12 kg) |
Standards | IEC 60584-1<br />IEC 60947-1 | Product Certifications | CSA<br />GL<br />UL |
IP degree of protection | IP20 terminal block)<br />IP50 housing) | Fire resistance | 1562 °F (850 °C) IEC 60695-2-1<br />1562 °F (850 °C) UL |
Shock resistance | 50 gn 11 ms IEC 60068-2-27 | Vibration resistance | 5 gn 10…100 Hz)IEC 60068-2-6 |
Resistance to electrostatic discharge | 6 kV in contact)IEC 61000-4-2 level 3<br />8 kV in air)IEC 61000-4-2 level 3 | Resistance to fast transients | 1 kV IEC 61000-4-4 on input-output)<br />2 kV IEC 61000-4-4 on power supply) |
Disturbance radiated/conducted | CISPR 22 group 1 - class B<br />CISPR 11 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | 32…122 °F (0…50 °C) mounting side by side<br />32…140 °F (0…60 °C) 2 cm spacing | Pollution degree | 2 IEC 60664-1 |
Specifications may be subject to change without notice
