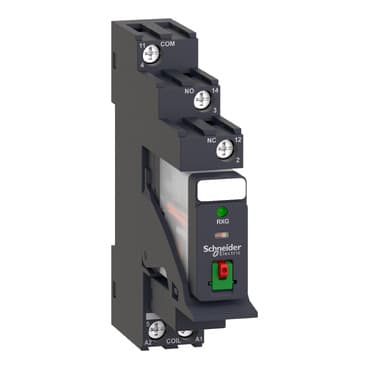

Product Model
RXG12P7PV
Selling Points
- 1High Reliability: Designed with 10 million mechanical cycles and 100,000 electrical cycles for durability.
- 2Space-Saving Design: Compact 16mm width for easy integration into various industrial settings.
- 3Versatile Connectivity: Supports flexible and solid connectors for different cable sizes (AWG 22-14).
- 4Energy Efficiency: Low average coil consumption of 0.96 VA AC at 50-60 Hz.
- 5Compliance and Certifications: Meets international standards including IEC, UL, EAC, CSA, and ROHS/REACH.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Electromechanical Relays | Series name | Interface relay |
Product or Component Type | Pre-assembled plug-in relay with socket | Device short name | RXG |
Contacts type and composition | 1 C/O | [Ithe] conventional enclosed thermal current | 10 A |
Status LED | With | [Ie] rated operational current | 10 A 30 V DC) UL<br />10 A 30 V DC) IEC<br />10 A 250 V AC) IEC<br />10 A 250 V AC) UL |
Electrical durability | 100000 cycles resistive | Coil resistance | 23500 Ohm +/- 15 % |
Shock resistance | 20 gn in operation<br />100 gn not in operation | Mounting position | Any position |
Average coil consumption | 0.96 VA AC 50-60 Hz | [Uc] control circuit voltage | 230 V AC 50/60 Hz |
Colour of cover | Transparent | Drop-out voltage threshold | >= 0.3 Uc AC |
Load current | 10 A | Minimum switching capacity | 500 mW at 100 mA, 5 V DC |
Maximum switching capacity | 2500 VA AC<br />300 W DC | Control Type | Lockable test button |
Torque Value | 7.08 lbf.in (0.8 N.m)<br />7.0 lbf.in (0.8 N.m) | Contact resistance | 100 mOhm |
Insulation resistance | 1000 MOhm at 500 V DC | Electrical Insulation Class | Class F |
Mechanical durability | 10000000 cycles | Safety reliability data | B10d = 100000 |
Operating time | 20 ms | Reset time | 20 ms |
Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end<br />Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end<br />Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end | Overvoltage category | III |
Maximum switching voltage | 250 V | Protection category | RT I |
Operating rate | <= 1800 cycles/hour under load<br /><= 18000 cycles/hour no-load | Pollution degree | 2 |
Utilisation coefficient | 20 % | [Ui] rated insulation voltage | 250 V IEC |
Dielectric strength | 1000 V AC between contacts with micro disconnection<br />1300 V between terminals and base with basic insulation<br />3000 V between terminals and LTB area with basic insulation<br />5000 V AC between coil and contact with reinforced insulation | Test levels | Level A group mounting |
Device presentation | Complete product | Contacts material | Silver alloy (AgSnO2In2O3) |
Net Weight | 0.128 lb(US) (0.058 kg) | Standards | IEC 61810-1<br />CSA C22.2 No 14<br />UL 508<br />IEC 61984 |
Product Certifications | EAC<br />CSA<br />UL<br />CE<br />DNV-GL | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP Degree of Protection | IP20 |
Relative humidity | 10…85 % | Vibration resistance | 3 gn +/- 1.5 mm 10…150 Hz)in operation<br />5 gn +/- 1.5 mm 10…150 Hz)not in operation |
Specifications may be subject to change without notice
