Product Model

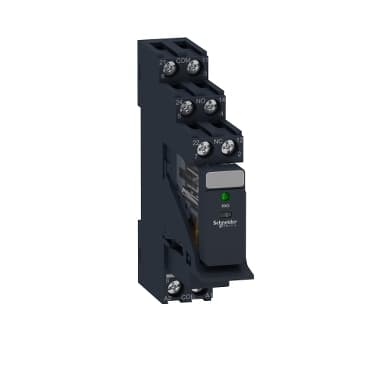

RXG23BDPV
Selling Points
- 1High Reliability: Designed for millions of switching cycles, ensuring long-lasting performance.
- 2Space-Saving Design: Flexible and compact, perfect for reducing enclosure size.
- 3Economical Solution: Provides an economical way to implement multiple switching functions.
- 4LED Indication: Includes an LED indicator for easy status monitoring.
- 5Compliant with Standards: Meets UL and IEC standards for safety and reliability.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Electromechanical Relays | Series name | Interface relay |
Product or Component Type | Pre-assembled plug-in relay with socket | Device short name | RXG |
Contacts type and composition | 2 C/O | [Ithe] conventional enclosed thermal current | 5 A |
Status LED | With | [Ie] rated operational current | 5 A 30 V DC) UL<br />5 A 30 V DC) IEC<br />5 A 250 V AC) IEC<br />5 A 250 V AC) UL |
Electrical durability | 100000 cycles resistive | Coil resistance | 1100 Ohm +/- 10 % |
Shock resistance | 20 gn in operation<br />100 gn not in operation | Mounting position | Any position |
Average coil consumption | 0.53 W DC | [Uc] control circuit voltage | 24 V DC |
Colour of cover | Transparent | Drop-out voltage threshold | >= 0.1 Uc DC |
Load current | 5 A | Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
Maximum switching capacity | 1250 VA AC<br />150 W DC | Torque Value | 7.08 lbf.in (0.8 N.m)<br />7.0 lbf.in (0.8 N.m) |
Contact resistance | 100 mOhm | Insulation resistance | 1000 MOhm at 500 V DC |
Electrical Insulation Class | Class F | Mechanical durability | 10000000 cycles |
Safety reliability data | B10d = 100000 | Operating time | 20 ms |
Reset time | 20 ms | Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end<br />Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end<br />Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end |
Overvoltage category | III | Maximum switching voltage | 250 V |
Protection category | RT I | Operating rate | <= 1800 cycles/hour under load<br /><= 18000 cycles/hour no-load |
Pollution degree | 2 | Utilisation coefficient | 20 % |
[Ui] rated insulation voltage | 250 V IEC | Dielectric strength | 1000 V AC between contacts with micro disconnection<br />1300 V between terminals and base with basic insulation<br />3000 V between terminals and LTB area with basic insulation<br />3000 V AC between poles with basic insulation<br />5000 V AC between coil and contact with reinforced insulation |
Test levels | Level A group mounting | Device presentation | Complete product |
Contacts material | Silver alloy (AgSnO2In2O3) | Net Weight | 0.143 lb(US) (0.065 kg) |
Standards | IEC 61810-1<br />CSA C22.2 No 14<br />UL 508<br />IEC 61984 | Product Certifications | CSA<br />CE<br />EAC<br />UL<br />DNV-GL |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) |
IP Degree of Protection | IP20 | Relative humidity | 10…85 % |
Vibration resistance | 3 gn +/- 1.5 mm 10…150 Hz)in operation<br />5 gn +/- 1.5 mm 10…150 Hz)not in operation |
Specifications may be subject to change without notice
