Product Model

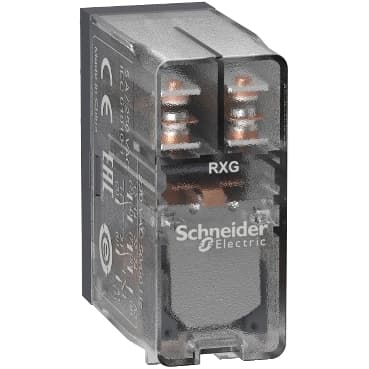

RXG25M7
Selling Points
- 1Reliable installation and easy maintenance.
- 25A current rating and 2 changeover contacts (DPDT).
- 3Compatible with 220V AC and 30V DC.
- 4Silver alloy contacts for high durability.
- 5Meets CE, CSA, and UL standards for safety.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Electromechanical Relays | Series name | Interface relay |
Product or Component Type | Plug-in relay | Device short name | RXG |
Contacts type and composition | 2 C/O | [Ithe] conventional enclosed thermal current | 5 A -40…131 °F (-40…55 °C) |
[Ie] rated operational current | 5 A 30 V DC) UL<br />5 A 30 V DC) IEC<br />5 A 250 V AC) IEC<br />5 A 250 V AC) UL | Electrical durability | 100000 cycles NO resistive at 55 °C<br />100000 cycles NC resistive at 55 °C |
Coil resistance | 21000 Ohm +/- 15 % | Shock resistance | 20 gn in operation<br />100 gn not in operation |
Mounting position | Any position | Average consumption in VA | 0.82 VA 60 Hz |
Control circuit voltage limits | 0.8...1.1 Uc AC | [Uc] control circuit voltage | 220 V AC 50/60 Hz |
Colour of cover | Transparent | Drop-out voltage threshold | >= 0.3 Uc AC |
Load current | 5 A 250 V AC | Minimum switching capacity | 50 mW at 10 mA, 5 V DC |
Maximum switching capacity | 1250 VA | Torque Value | 7.08 lbf.in (0.8 N.m) |
Contact resistance | 100 mOhm | Insulation resistance | 1000 MOhm at 500 V DC |
Electrical Insulation Class | Class F | Mechanical durability | 10000000 cycles |
Safety reliability data | B10d = 100000 | Operating time | 20 ms |
Reset time | 20 ms | Overvoltage category | III |
Maximum switching voltage | 250 V AC<br />30 V DC | Protection category | RT I |
Operating rate | <= 1800 cycles/hour under load<br /><= 18000 cycles/hour no-load | Pollution degree | 2 |
Utilisation coefficient | 20 % | [Ui] rated insulation voltage | 250 V IEC<br />300 V CSA<br />300 V UL |
Dielectric strength | 1000 V AC between contacts with micro disconnection<br />5000 V AC between coil and contact with reinforced insulation<br />3000 V AC between poles with basic insulation | Test levels | Level A group mounting |
Device presentation | Complete product | Contacts material | Silver alloy (AgSnO2In2O3) |
Net Weight | 0.042 lb(US) (0.019 kg) | Standards | UL 508<br />CSA C22.2 No 14<br />IEC 61810-1 |
Product Certifications | CSA<br />CE<br />UL<br />EAC<br />DNV-GL | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -40…158 °F (-40…70 °C) | IP Degree of Protection | IP40 |
Relative humidity | 10…85 % | Vibration resistance | 3 gn +/- 0.75 mm 10…150 Hz)in operation<br />5 gn +/- 0.75 mm 10…150 Hz)not in operation |
Specifications may be subject to change without notice
