Product Model

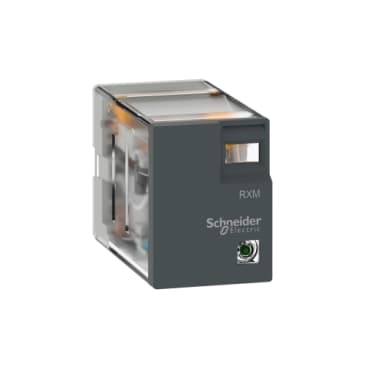

RXM2LB2ED
Selling Points
- 1High reliability and durability for demanding industrial environments.
- 2Compact design with minimal footprint for space-saving installations.
- 3Wide range of output voltages and currents to meet diverse application needs.
- 4Advanced thermal management for optimal performance under load.
- 5Compliance with international safety standards for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Electromechanical Relays | Coil interference suppression | Without |
Series name | Miniature | Product or Component Type | Plug-in relay |
Device short name | RXM | Contacts type and composition | 2 C/O |
[Ithe] conventional enclosed thermal current | 5 A -40…131 °F (-40…55 °C) | Contact operation | Standard |
[Uc] control circuit voltage | 48 V DC | Status LED | With |
Control Type | Without push-button | [Uimp] rated impulse withstand voltage | 4 kV 1.2/50 µs IEC 61810-7 |
[Ie] rated operational current | 5 A AC-1/DC-1) NO IEC<br />2.5 A AC-1/DC-1) NC IEC<br />1 A 28 V DC-13) NO | Minimum switching capacity | 25 mW subject to switching frequency, environment or expected reliability level etc |
Operating time | 20 ms between coil de-energisation and making of the Off-delay contact<br />20 ms between coil energisation and making of the On-delay contact | CAD overall width | 0.8 in (21 mm) |
CAD overall height | 1.06 in (27 mm) | CAD overall depth | 1.8 in (46 mm) |
Minimum switching current | 5 mA subject to switching frequency, environment or expected reliability level etc | Minimum switching voltage | 5 V subject to switching frequency, environment or expected reliability level etc |
Rated operational voltage limits | 38.4...52.8 V DC | [Ui] rated insulation voltage | 250 V IEC |
Maximum switching voltage | 250 V AC<br />28 V DC | Drop-out voltage threshold | >= 0.1 Uc DC |
Load current | 5 A 250 V AC<br />5 A 28 V DC | Maximum switching capacity | 1250 VA AC<br />140 W DC |
Average resistance | 2600 Ohm at 73 °F (23 °C) +/- 10 % | Average coil consumption | 0.9 W, DC |
Mechanical durability | 10000000 cycles | Electrical durability | 100000 cycles for resistive load<br />50000 cycles, 1 A at 28 V, DC-13 NO |
Safety reliability data | B10d = 100000 | Operating rate | <= 1200 cycles/hour under load<br /><= 18000 cycles/hour no-load |
Utilisation coefficient | 20 % | Dielectric strength | 2000 V AC between coil and contact with basic insulation<br />2000 V AC between poles with basic insulation<br />1000 V AC between contacts with micro disconnection |
Protection category | RT I | Pollution degree | 3 |
Operating position | Any position | Test levels | Level A group mounting |
Sale per indivisible quantity | 10 | Contacts material | Silver alloy (Ag/Ni) |
Net Weight | 0.073 lb(US) (0.033 kg) | IP degree of protection | IP40 conforming to IEC 60529 |
Standards | CE<br />IEC 61810-1 (iss. 2) | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Vibration resistance | 3 gn +/- 1 mm 10…50 Hz)operating IEC 60068-2-6<br />6 gn +/- 1 mm 10…50 Hz)not operating IEC 60068-2-6 | Shock resistance | 30 gnnot operating IEC 60068-2-27<br />10 gnin operation IEC 60068-2-27 |
Specifications may be subject to change without notice
