Product Model

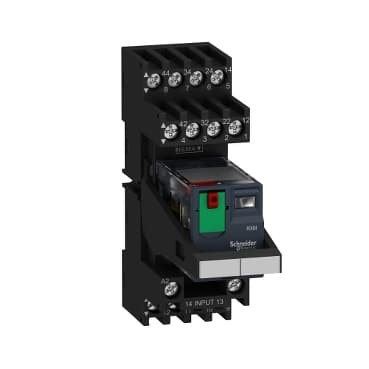

RXM4AB2B7PVM
Selling Points
- 1High reliability and robust performance for demanding industrial environments.
- 2Compact design with minimal footprint, ideal for space-constrained installations.
- 3Wide input voltage range (36-72VDC) for flexibility in various applications.
- 4High efficiency (up to 95%) to reduce energy costs and heat generation.
- 5Compliance with international safety standards (e.g., UL, CE, IEC) for global deployment.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Electromechanical Relays | Series name | Miniature |
Product or Component Type | Pre-assembled plug-in relay with socket | Device short name | RXM |
Contacts type and composition | 4 C/O | [Uc] control circuit voltage | 24 V AC 50/60 Hz |
Status LED | With | Control Type | Lockable test button |
Utilisation coefficient | 20 % | [Ui] rated insulation voltage | 250 V IEC |
[Uimp] rated impulse withstand voltage | 2.5 kV 1.2/50 µs | Contacts material | AgNi |
[Ie] rated operational current | 3 A 28 V DC) NC IEC<br />3 A 250 V AC) NC IEC<br />6 A 28 V DC) NO IEC<br />6 A 250 V AC) NO IEC<br />6 A 277 V AC) UL<br />8 A 30 V DC) UL | Minimum switching current | 10 mA |
Continuous output current | 5 A | Maximum switching voltage | 250 V |
Minimum switching voltage | 17 V | resistive rated load | 6 A 250 V AC<br />6 A 28 V DC |
Maximum switching capacity | 1500 VA/168 W AC/DC | Minimum switching capacity | 170 mW 10 mA, 17 V |
Operating rate | <= 1200 cycles/hour under load<br /><= 18000 cycles/hour no-load | Mechanical durability | 10000000 cycles |
Electrical durability | 100000 cycles resistive | average coil consumption | 1.2 W, AC |
Drop-out voltage threshold | >= 0.3 Uc AC | operate time | 20 ms |
release time | 20 ms | average coil resistance | 180 Ohm 20 °C +/- 10 % |
Rated operational voltage limits | 19.2...26.4 V AC | Safety reliability data | B10d = 100000 |
Protection category | RT I | Test levels | Level A group mounting |
Operating position | Any position | Sale per indivisible quantity | 30 |
CAD overall width | 1.06 in (26.9 mm) | CAD overall height | 3.1 in (79 mm) |
CAD overall depth | 3.09 in (78.45 mm) | Connections - terminals | Connector, 1 x 0.25...1 x 2.5 mm² AWG 22...AWG 14) flexible with cable end<br />Connector, 2 x 0.25...2 x 1 mm² AWG 22...AWG 17) flexible with cable end<br />Connector, 1 x 0.5...1 x 2.5 mm² AWG 20...AWG 14) solid without cable end<br />Connector, 2 x 0.5...2 x 1.5 mm² AWG 20...AWG 16) solid without cable end |
Torque Value | 8.9 lbf.in (1 N.m) | Net Weight | 0.212 lb(US) (0.096 kg) |
Device presentation | Complete product | Dielectric strength | 1300 V AC between contacts with micro disconnection<br />2000 V AC between coil and contact with basic insulation<br />2000 V AC between poles with basic insulation |
Product Certifications | UL<br />Lloyd's<br />CE<br />CSA<br />GOST<br />IECEE CB Scheme | Standards | UL 508<br />IEC 61810-1<br />CSA C22.2 No 14<br />IEC 61984 |
Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) | Ambient air temperature for operation | -40…131 °F (-40…55 °C) |
Vibration resistance | 3 gn +/- 1 mm 10…150 Hz)5 cycles in operation<br />5 gn +/- 1 mm 10…150 Hz)5 cycles not operating | IP degree of protection | IP20 conforming to IEC 60529 |
Shock resistance | 10 gnin operation<br />30 gnnot operating | Pollution degree | 2 |
Specifications may be subject to change without notice
