Product Model

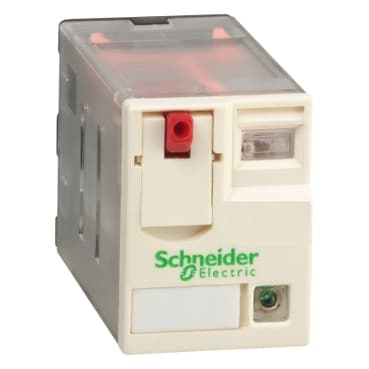

RXM4SOC120A
Selling Points
- 1High power density for compact designs
- 2Advanced thermal management for reliable operation
- 3Wide input voltage range for flexibility
- 4High efficiency for reduced energy costs
- 5Compact footprint with easy integration
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Relay | Series name | Miniature |
Product or Component Type | Plug-in relay | Device short name | RXM |
Contacts type and composition | 4 C/O | [Uc] control circuit voltage | 120 V AC 50/60 Hz |
[Ithe] conventional enclosed thermal current | 6 A -40…131 °F (-40…55 °C) | Status LED | With |
Control Type | Lockable test button | Utilisation coefficient | 20 % |
Shape of pin | Flat | [Ui] rated insulation voltage | 250 V IEC<br />300 V CSA<br />300 V UL |
[Uimp] rated impulse withstand voltage | 2.5 kV 1.2/50 µs | Contacts material | AgNi |
[Ie] rated operational current | 3 A 28 V DC) NC IEC<br />3 A 250 V AC) NC IEC<br />6 A 28 V DC) NO IEC<br />6 A 250 V AC) NO IEC<br />6 A 277 V AC) UL<br />8 A 30 V DC) UL | Maximum switching voltage | 250 V IEC |
resistive rated load | 10 A 250 V AC<br />10 A 28 V DC | Maximum switching capacity | 1500 VA/168 W |
Minimum switching capacity | 170 mW 10 mA, 17 V | Operating rate | <= 1200 cycles/hour under load<br /><= 18000 cycles/hour no-load |
Mechanical durability | 10000000 cycles | Electrical durability | 100000 cycles resistive |
average coil consumption in VA | 1.2 60 Hz | Average consumption | 1.2 VA 60 Hz |
Drop-out voltage threshold | >= 0.15 Uc | operate time | 20 ms |
release time | 20 ms | average coil resistance | 3630 Ohm 20 °C +/- 15 % |
Rated operational voltage limits | 96...132 V AC | Safety reliability data | B10d = 100000 |
Protection category | RT I | Operating position | Any position |
Net Weight | 0.082 lb(US) (0.037 kg) | Device presentation | Complete product |
Dielectric strength | 1300 V AC between contacts with micro disconnection<br />2000 V AC between coil and contact<br />2000 V AC between poles | Product Certifications | UL<br />GOST<br />CSA<br />CE<br />Lloyd's |
Standards | UL 508<br />CSA C22.2 No 14<br />EN/IEC 61810-1 | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient air temperature for operation | -40…131 °F (-40…55 °C) | Vibration resistance | 3 gn +/- 1 mm 10…55 Hz)5 cycles in operation<br />5 gn +/- 1 mm 10…55 Hz)5 cycles not operating |
IP degree of protection | IP40 conforming to EN/IEC 60529 | Shock resistance | 10 gnin operation<br />30 gnnot operating |
Pollution degree | 2 |
Specifications may be subject to change without notice
