Product Model

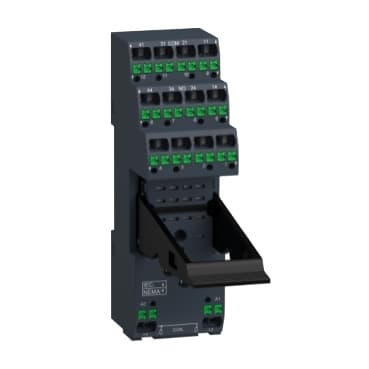

RXZE14P
Selling Points
- 1High power density for compact installations.
- 2Advanced protection features for reliable operation.
- 3Wide input voltage range for flexible integration.
- 4High efficiency for reduced energy consumption.
- 5Durable construction for long-lasting performance.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Harmony Electromechanical Relays<br />Harmony Timer Relays | Product compatibility | Plug-in relay RXM 2 C/O<br />Plug-in relay RXM 4 C/O |
Device short name | RXZ | [Ith] conventional free air thermal current | 12 A 2 C/O relays<br />6 A 4 C/O relays |
Product or Component Type | Socket | Contacts type and composition | 4 C/O |
[Ui] Rated Insulation Voltage | 250 V | [Ue] rated operational voltage | 250 V IEC<br />300 V UL |
Connections - terminals | Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) flexible with cable end<br />Spring clamp terminals (push 'n stay), 1 x 0.5...1 x 1.5 mm² AWG 20...AWG 16) solid without cable end | Shape of pin | Flat |
Fixing mode | Clip-on (35 mm symmetrical DIN rail) | Length | 3.9 in (98 mm) |
Contact terminal arrangement | Separate | [Uimp] rated impulse withstand voltage | 4 kV |
Overvoltage category | III | Pollution degree | 3 |
Sale per indivisible quantity | 10 | Width | 1.2 in (31 mm) |
Height | 3.3 in (85 mm) | Net Weight | 0.176 lb(US) (0.080 kg) |
IP degree of protection | IP20 | Dielectric strength | 2500 V |
Standards | IEC 61984 | Product Certifications | CSA<br />Lloyd's<br />UL<br />EAC |
marking | CE | Ambient Air Temperature for Storage | -40…185 °F (-40…85 °C) |
Ambient Air Temperature for Operation | -40…131 °F (-40…55 °C) |
Specifications may be subject to change without notice
