Product Model

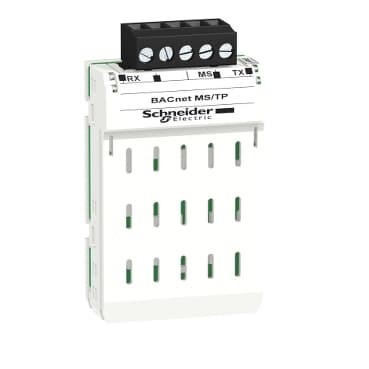

TM168BACS
Selling Points
- 1High reliability and durability for critical applications.
- 2Advanced safety features with built-in protection mechanisms.
- 3Efficient power distribution with minimal energy loss.
- 4Compact design for easy installation in various environments.
- 5Compliant with international safety standards for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M168 logic controller | Product or Component Type | Communication module |
communication port protocol | BACnet MS/TP | Integrated connection type | RS485 5-pin removable terminal block - 2 twisted pairs |
Transmission rate | 9.6, 19.2, 38.4, 76.8 kbit/s | Communication service | AV, BV, MSV, BACnet MS/TP<br />COV notification |
Physical interface | Open style connector | Local signalling | for transmission activity 1 LED<br /> for reception activity (RX) 1 LED<br /> for module status 1 LED<br /> for error 1 LED |
Product Compatibility | M168 logic controller | Net Weight | 0.077 lb(US) (0.035 kg) |
Product Certifications | UL 508<br />CSA<br />UL 873<br />BTL | Electromagnetic compatibility | EMC immunity EN/IEC 61000-6-1<br />EMC immunity level 2 EN/IEC 60730-1<br />Electrostatic discharge level 3B IEC 61000-4-2<br />Radiated RF fields level 3A IEC 61000-4-3<br />Electrical fast transient/burst immunity test level 4B IEC 61000-4-4<br />Surge immunity test level 3 IEC 61000-4-5<br />Conducted RF disturbances level 3A IEC 61000-4-6<br />Conducted EMC level 2 EN/IEC 60730-1<br />Conducted EMC EN/IEC 61000-6-3 |
marking | CE | IP Degree of Protection | IP20 |
Ambient Air Temperature for Operation | -4…149 °F (-20…65 °C) | Ambient Air Temperature for Storage | -13…158 °F (-25…70 °C) |
Relative Humidity | 5…95 % without condensation | Pollution degree | 2 |
Operating altitude | 0...6561.68 ft (0...2000 m) | Storage altitude | 0.0000000000…10000.0000000000 ft (0…3048 m) |
Vibration resistance | 1.5 mm 3…13 Hz)<br />1 mm 13…23 Hz)<br />2 gn 13…150 Hz) | Shock resistance | 15 gn 11 ms |
