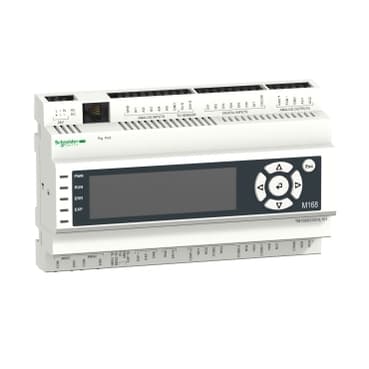

schneider TM168D23CHL101

Selling Points

  • 1High reliability and durability for continuous operation.
  • 2Efficient performance with reduced energy consumption.
  • 3Robust design for harsh environments and extreme temperatures.
  • 4Compact size for easy integration into various applications.
  • 5Compliance with international safety standards for peace of mind.
Product Details
TM168D23CHL101
schneider

Technical Specifications

Detailed engineering parameters based on manufacturer documentation

ParameterValueParameterValue
Range of Product
Modicon M168 logic controller
Product or Component Type
Base controller
Product Specific Application
Air cooled chiller
Variant
Ready to use without PC
Communication port protocol
Modbus
Input/output number
7 discrete input<br />5 configurable analog input<br />8 discrete output<br />1 dedicated PWM output<br />2 configurable analog output
Discrete input number
7
Discrete input logic
Sink or source (positive/negative)
Discrete input voltage
24 V
Discrete input voltage type
AC/DC
Sensor power supply
4.4…5 V DC<br />18…36 V DC
Voltage state 1 guaranteed
> 15 V discrete input
Voltage state 0 guaranteed
<= 10 V discrete input
Input impedance
Discrete input <= 10 kOhm
Network frequency
50-60 Hz +/- 3 Hz discrete input
Discrete output number
5 8 mA)<br />3 5 mA)
Contacts type and composition
7 NO discrete output<br />1 C/O discrete output
Minimum load
10 mA 12 V
Discrete output current
8 mA relay output<br />5 mA relay output
Load current
8 A 5...30 V DC<br />8 A 24...250 V AC<br />5 A 5...30 V DC<br />5 A 24...250 V AC
Mechanical durability
10000000 cycles relay output
Electrical durability
120000 cycles DC-12 8 A 30 V, 2 A<br />6000 cycles DC-13 8 A 24 V, 2 A 300 ms<br />300000 cycles AC-12 8 A 250 V, 2.5 A<br />6000 cycles AC-15 8 A 250 V, 3 A, cos phi = 0.3<br />120000 cycles DC-12 5 A 30 V, 2 A<br />200000 cycles DC-13 5 A 24 V, 1 A 48 ms<br />300000 cycles AC-12 5 A 250 V, 2.5 A<br />50000 cycles AC-15 5 A 250 V, 3 A, cos phi = 0.4
Operating rate in Hz
10 Hz - off load discrete output 8 mA<br />0.1 Hz - operating current discrete output 8 mA<br />20 Hz - off load discrete output 5 mA<br />0.1 Hz - operating current discrete output 5 mA
Response time
10 ms closing discrete output 8 mA<br />5 ms opening discrete output 8 mA<br />8 ms closing discrete output 5 mA<br />4 ms opening discrete output 5 mA
Analogue input number
5
Analogue input type
Voltage 0...10 V or 0...5 V ratio 0.01 V<br />Current 0...20 mA/4...20 mA 0.01 mA<br />Temperature probe -50...+120 °C 0.1 °CNTC<br />Temperature probe -50...+150 °C 0.1 °CPTC<br />Temperature probe -100...+200 °C 0.5 °CPt 1000
Analogue output number
2
Analogue output type
Voltage 0...10 V 0.01 V<br />Current 0-20 mA or 4-20 mA 0.05 mA
Load impedance ohmic
>= 1000 Ohm voltage<br />40...300 Ohm current
Absolute accuracy error
-5 %...+2 % of full scale 1...5 kOhm analog output voltage<br />+/- 2 % of full scale > 5 kOhm analog output voltage<br />+/- 3 % of full scale analog output current<br />+/- 0.5 % of full scale analog input
LSB value
10 mV analog output voltage<br />0.02 mA analog output current<br />0.07 °C analog input NTC<br />0.5 °C analog input Pt 1000<br />5 mV analog input voltage<br />0.01 mA analog input current
Communication Service
Open collector synchro on AC power supply
Protection type
Reverse polarity protection analog input voltage<br />Overload protection analog output voltage<br />Reverse polarity protection power supply
[Us] rated supply voltage
20...40 V DC<br />24 V AC
Supply voltage limits
20.4…27.6 V
Network Frequency
50/60 Hz
Network frequency limits
47…63 Hz
Immunity to microbreaks
10 ms
Maximum power consumption in W
22 W
Power consumption in VA
30 VA 24 V
Memory capacity
544 kB
Realtime clock
With clock, clock drift <= 30 s/month
Data backed up
Date and hour internal battery, 3 days
Number of port
1 Modbus RJ45 slave 1.2...57.6 kbit/s<br />1 Modbus RJ45 master/slave 1.2...57.6 kbit/s<br />1 expansion bus terminal block master/slave
Electrical connection
Analog input AI1 to AI5, GND, +5 V, 24 V) 9 1 removable screw terminal block<br />Discrete input DI1 to DI7, COM) 8 1 removable screw terminal block<br />Fan output FAN+, FAN-) 2 1 removable screw terminal block<br />Expansion bus +24 V, GND, CAN-, CAN+) 5 1 removable screw terminal block<br />Power supply L/+, N/-) 2 1 removable screw terminal block<br />Discrete output NO1 to NO3, COM 1-2, COM 3) 5 1 removable screw terminal block<br />Discrete output NO4 to NO7, COM 6-7, COM 4-5) 6 1 removable screw terminal block<br />Discrete output NO8, NC8, COM8) 3 1 removable screw terminal block<br />Analog output AO1, AO2, GND) 3 1 removable screw terminal block
Maximum cable distance between devices
2 twisted pair cables <3280.8 ft (1000 m) expansion bus<br /> <98.4 ft (30 m) power supply<br /> <328.08 ft (100 m) embedded sensor PS<br /> <328.08 ft (100 m) analog input<br /> <328.08 ft (100 m) relay digital output<br /> <98.4 ft (30 m) configurable analog output<br /> <3.3 ft (1 m) PWM analog output<br /> <3280.8 ft (1000 m) SL1 bus<br /> <3280.8 ft (1000 m) SL2 bus<br /> <328.08 ft (100 m) isolated digital input<br /> <328.08 ft (100 m) no isolated digital input<br />USB <9.8 ft (3 m) PC programming tool<br />TTL <9.8 ft (3 m) PC programming tool<br /> <98.4 ft (30 m) supply for remote display
Display Type
Integrated LCD display
Local signalling
for PWR 1 LED (green)<br /> for RUN 1 LED (green)<br /> for alarm status 1 LED (red)<br /> for expansion bus 1 LED (red)<br /> for user 1 LED (red)
Mounting Support
35 mm symmetrical DIN rail
Width
7.05 in (179 mm)
Height
5.09 in (129.19 mm)
Depth
2.4 in (61.5 mm)
Net Weight
1.270 lb(US) (0.576 kg)
Standards
EN/IEC 60730-1<br />EN/IEC 61000-6-1<br />EN/IEC 61000-6-3
Product Certifications
CSA 60730-1<br />UL 60730-1A
marking
CE
Ambient air temperature for operation
14…131 °F (-10…55 °C) UL<br />14…140 °F (-10…60 °C)
Ambient Air Temperature for Storage
-22…158 °F (-30…70 °C)
Relative humidity
5…95 % without condensation
IP degree of protection
IP20<br />IP40 front face:
Pollution degree
2
Overvoltage category
III
Operating altitude
0...6561.68 ft (0...2000 m)
Storage altitude
0.0000000000…10000.0000000000 ft (0…3048 m)
Vibration resistance
3.5 mm constant amplitude 5…8.4 Hz)<br />1 gn constant amplitude 8.4…150 Hz)
Shock resistance
15 gn 11 ms

Specifications may be subject to change without notice
