Product Model

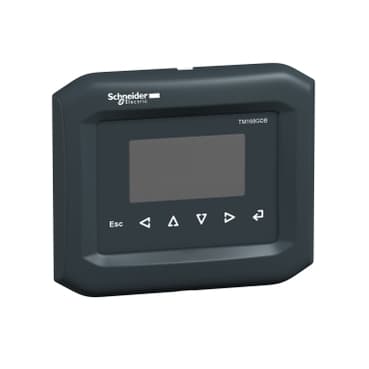

TM168GDB
Selling Points
- 1Compact design for easy installation and space-saving.
- 2High current capacity for heavy-duty applications.
- 3Advanced thermal management for extended lifespan.
- 4Modular design for flexible configuration options.
- 5Compliance with international safety standards for peace of mind.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M168 logic controller | Product or Component Type | Graphic display |
Power Consumption in W | 5 W | Display Type | LCD |
Display colour | Monochrome | Display Resolution | 128 x 64 pixels |
[Us] rated supply voltage | 24 V AC/DC non isolated | Number of key | 6 |
Supply | External source | Standards | UL 60730-1<br />CSA 60730-1<br />EN 61000-6-1<br />EN 60730-1<br />EN 61000-6-3 |
marking | CE | Realtime clock | With <= 30 s/month 2 days |
Local signalling | for power supply 1 LED (green)<br /> for bus activity RX (reception) 1 LED (red)<br /> for bus activity TX (transmission) 1 LED (red) | Memory type | Internal |
Backup Time | 10 years | Number of read/write cycles | 1000000 |
Supply voltage limits | 18…30 V | Immunity to microbreaks | 10 ms |
Height | 5.2 in (133 mm) | Width | 4.4 in (112 mm) |
Depth | 1.4 in (36 mm) | Net Weight | 0.53 lb(US) (0.24 kg) |
Ambient Air Temperature for Operation | 32…131 °F (0…55 °C) | Ambient Air Temperature for Storage | -4…158 °F (-20…70 °C) |
IP degree of protection | IP40 front face: | Pollution degree | 2 |
Overvoltage category | III | Vibration resistance | 3.5 mm 5…8.4 Hz)EN/IEC 60028-2-6<br />1 gn 8.4…150 Hz)EN/IEC 60028-2-6 |
Shock resistance | 15 gn 11 ms |
Specifications may be subject to change without notice
