Product Model

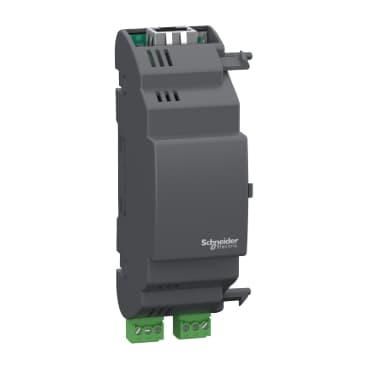

TM171AETHRS485
Selling Points
- 1High-speed data transmission up to 1.5 Mbps.
- 2Robust RS-485 transceiver for reliable communication.
- 3Compact design for easy integration into industrial systems.
- 4Wide operating temperature range from -40°C to 85°C.
- 5Compliant with international standards for industrial communication.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M171 | Product or Component Type | Communication module |
communication port protocol | BACnet IP<br />SMTP<br />HTTP<br />Ethernet<br />Modbus TCP<br />Modbus RTU<br />RS485<br />BACnet MS/TP | Integrated connection type | Ethernet RJ45 - twisted pair<br />RS485 wire crimp - twisted pair |
Adjustment | Pitch 3.81 mm | Electrical connection | removable screw terminal block |
Physical interface | 90° insertion - 0.004 in² (2.5 mm²) cable<br />RJ45 | Supply | Via base board EVD/EVC |
Product Compatibility | Logic controller M171 performance | Net Weight | 0.170 lb(US) (0.077 kg) |
Product Certifications | CE<br />CSA<br />cURus<br />EAC | marking | CE |
IP Degree of Protection | IP20 | Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) |
Ambient Air Temperature for Storage | -4…185 °F (-20…85 °C) | Relative Humidity | 10…90 % without condensation |
Specifications may be subject to change without notice
