Product Model

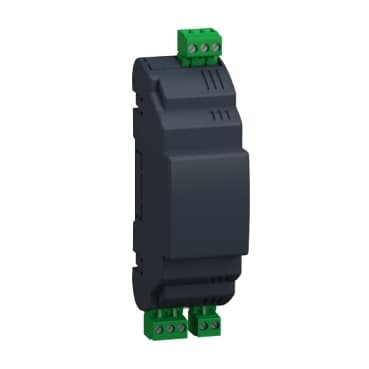

TM171ALAN
Selling Points
- 1High reliability for critical applications
- 2Efficient power distribution with minimal losses
- 3Advanced safety features for secure operation
- 4Compact design for easy installation in tight spaces
- 5Compatible with a wide range of industrial systems
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M171/M172 | accessory / separate part category | Adaptation accessory |
accessory / separate part type | Adaptor | Product compatibility | Modicon M171O |
Accessory / separate part destination | Base controller | Power consumption in W | 1 W |
[Us] rated supply voltage | 24 V AC/DC | Electrical connection | 3 screw terminals RS485<br />3 screw terminals LAN |
Overvoltage category | I | Width | 1.4 in (35 mm) |
Depth | 2.4 in (60 mm) | Height | 4.3 in (110 mm) |
Net Weight | 1.3 lb(US) (0.6 kg) | IP Degree of Protection | IP20 |
Ambient Air Temperature for Operation | 14…131 °F (-10…55 °C) | Ambient Air Temperature for Storage | -22…185 °F (-30…85 °C) |
Relative Humidity | 5…95 % non-condensing | Pollution degree | 2 |
Product Certifications | CE<br />CSA<br />cURus | Standards | IEC 60730-1<br />IEC 60730-2-9<br />UL 60730-1 |
Specifications may be subject to change without notice
