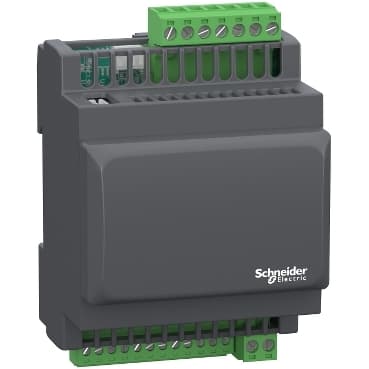

Product Model
TM171EO14R
Selling Points
- 1High efficiency up to 95% for reduced energy consumption.
- 2Compact design with a small footprint for space-saving installations.
- 3Advanced safety features including overcurrent protection and short-circuit protection.
- 4Wide input voltage range for flexibility in various applications.
- 5Long lifespan with minimal maintenance requirements for reduced downtime.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M171/M172 | Product or Component Type | Additional I/O module |
Product Specific Application | HVAC and pumping solution | Total inputs/outputs | 14 |
Discrete input number | 2 | Discrete output number | 1 relay outputs SPDT with independent common<br />3 relay outputs SPST with same common |
Discrete output current | 2 A relay | Analogue input number | 3 analog input NTC/Pt 1000<br />2 configurable |
Analogue output number | 2 voltage 0...10 V<br />2 PWM/PPM 20 kHz, 12 V, 35 mA<br />1 current 0...20 mA/4...20 mA | Number of port | 1 LAN expansion bus |
Input/output number | 5 analog output<br />4 digital output<br />5 analog input | Discrete input logic | Sink or source (positive/negative) |
Contacts usage | Volt-free contacts | Analogue input type | voltage 0...5 V ratiometric)<br /> voltage 0...10 V<br />NTC temperature probe - 50...100 °C 0.1 °C<br />Pt 1000 temperature probe - 50...400 °C 0.1 °C<br /> current 0...20 mA/4...20 mA<br /> voltage 0...1 V |
Sensor power supply | 12 V DC 85 mA | [Us] rated supply voltage | 100...240 V +/- 10 % AC/DC |
Power consumption in W | 7 W | Realtime clock | Built-in clock at 14…131 °F (-10…55 °C) |
Display type | Without Display | Overvoltage category | II |
Local signalling | for programmable 1 LED (red)<br /> for programmable 1 LED (yellow)<br /> for programmable 1 LED (green) | Mounting Support | DIN rail |
Width | 2.8 in (70.2 mm) | Height | 3.4 in (87 mm) |
Depth | 2.4 in (61.6 mm) | Net Weight | 0.849 lb(US) (0.385 kg) |
Directives | 86/188/EEC - physical agents (noise) directive<br />2006/95/EC - low voltage directive | Standards | EN/IEC 60730 |
Product Certifications | EAC<br />cURus<br />CSA<br />CE | Ambient air temperature for operation | 14…131 °F (-10…55 °C) UL 60730-1 |
Ambient Air Temperature for Storage | -4…185 °F (-20…85 °C) | Relative humidity | 10…90 % non-condensing |
IP degree of protection | IP20 | Pollution degree | 2 |
Specifications may be subject to change without notice
