Product Model

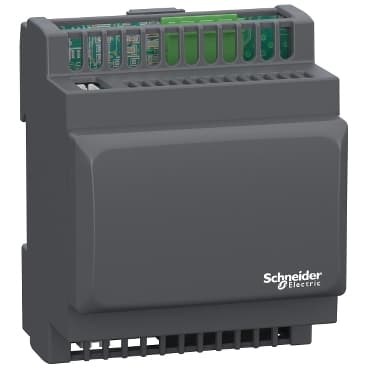

TM171EO15R
Selling Points
- 1High-performance AC drive for precise motor control.
- 2Compact design with reduced footprint for space-saving installations.
- 3Advanced control algorithms for improved efficiency and reliability.
- 4Compatible with a wide range of motor types, including induction and synchronous motors.
- 5Easy integration with existing automation systems for seamless operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M171/M172 | Product or Component Type | Additional I/O module |
Product Specific Application | HVAC and pumping solution | Total inputs/outputs | 15 |
Discrete input number | 6 | Discrete output number | 1 open collector<br />3 relay outputs SPST with same common |
Discrete output current | 2 A relay | Analogue input number | 3 analog input NTC |
Analogue output number | 1 PWM/PPM 20 kHz, 12 V, 35 mA<br />2 | Number of port | 1 LAN expansion bus |
Input/output number | 3 analog input<br />2 analog output<br />6 digital input<br />4 digital output | Discrete input logic | Sink or source (positive/negative) |
Contacts usage | Volt-free contacts | Analogue input type | voltage 0...5 V ratiometric)<br /> voltage 0...10 V<br />NTC temperature probe - 50...100 °C 0.1 °C<br /> current 0...20 mA/4...20 mA<br /> voltage 0...1 V |
Sensor power supply | 12 V DC 85 mA | [Us] rated supply voltage | 12...24 V +/- 20 % AC/DC<br />24 V +/- 20 % DC |
Power consumption in W | 18 W 24...48 V AC/DC | Realtime clock | Built-in clock at 14…131 °F (-10…55 °C) |
Display type | Without Display | Overvoltage category | II |
Local signalling | for programmable 1 LED (red)<br /> for programmable 1 LED (yellow)<br /> for programmable 1 LED (green) | Width | 5.5 in (140 mm) |
Height | 4.3 in (110 mm) | Depth | 2.4 in (61.6 mm) |
Net Weight | 0.849 lb(US) (0.385 kg) | Directives | 2006/95/EC - low voltage directive<br />86/188/EEC - physical agents (noise) directive |
Standards | EN/IEC 60730 | Product Certifications | cURus<br />EAC<br />CSA<br />CE |
Ambient air temperature for operation | 14…131 °F (-10…55 °C) UL 60730-1 | Ambient Air Temperature for Storage | -4…185 °F (-20…85 °C) |
Relative humidity | 10…90 % non-condensing | IP degree of protection | IP20 |
Pollution degree | 2 |
Specifications may be subject to change without notice
