Product Model

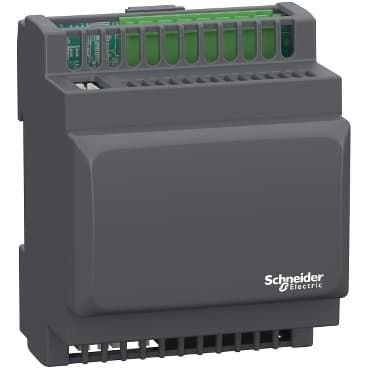

TM171EO22R
Selling Points
- 1High-performance power module designed for industrial applications.
- 2Enhanced reliability with advanced thermal management.
- 3Optimized for high current and voltage requirements.
- 4Compact design for space-saving installations.
- 5Compatible with a wide range of industrial control systems.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M171/M172 | Product or Component Type | Additional I/O module |
Product Specific Application | HVAC and pumping solution | Total inputs/outputs | 22 |
Discrete input number | 6 | Discrete output number | 1 open collector<br />3 relay outputs SPST with same common<br />2 relay outputs SPST with independent common |
Discrete output current | 2 A relay | Analogue input number | 3 analog input NTC<br />2 configurable |
Analogue output number | 3 voltage 0...10 V<br />2 PWM/PPM 20 kHz, 12 V, 35 mA | Number of port | 1 LAN expansion bus |
Input/output number | 5 analog output<br />6 digital input<br />5 analog input<br />6 digital output | Discrete input logic | Sink or source (positive/negative) |
Contacts usage | Volt-free contacts | Analogue input type | voltage 0...5 V ratiometric)<br /> voltage 0...10 V<br />NTC temperature probe - 50...100 °C 0.1 °C<br /> current 0...20 mA/4...20 mA<br /> voltage 0...1 V |
Sensor power supply | 12 V DC 85 mA<br />5 V DC 20 mA | [Us] rated supply voltage | 12...24 V<br />24 V |
Width | 2.8 in (70.2 mm) | Height | 3.4 in (87 mm) |
Depth | 2.4 in (61.6 mm) | Net Weight | 0.42 lb(US) (0.19 kg) |
Specifications may be subject to change without notice
