Product Model

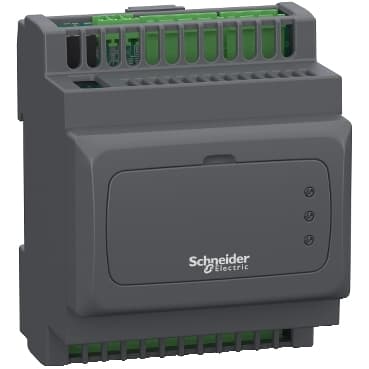

TM171EP14R
Selling Points
- 1High-performance power module with 14A current rating.
- 2Compact design for easy integration into industrial systems.
- 3High reliability and long lifespan due to robust construction.
- 4Suitable for a wide range of industrial applications including automation and control systems.
- 5Compliant with international safety standards for secure operation.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M171/M172 | Product or Component Type | Additional I/O module |
Product Specific Application | HVAC and pumping solution | Total inputs/outputs | 14 |
Discrete input number | 4 | Discrete output number | 1 relay outputs SPDT with independent common<br />3 relay outputs SPST with same common |
Discrete output current | 3 A relay | Analogue input number | 4 configurable by pair |
Analogue output number | 2 voltage 0...10 V | Number of port | 1 CAN port - screw terminal block |
Input/output number | 2 analog output<br />4 digital output<br />4 analog input<br />4 digital input | Discrete input logic | Sink or source (positive/negative) |
Discrete input voltage | 24 V AC/DC | Discrete input current | 2.5 mA |
input impedance | 20 kOhm | Analogue input type | voltage 0...5 V ratiometric)<br /> current 4...20 mA<br /> voltage 0...10 V<br />NTC temperature probe - 50...110 °C 0.1 °C<br />NTC temperature probe - 40...137 °C 0.1 °C extended)<br />PTC temperature probe - 50...150 °C 0.1 °C |
Sensor power supply | 12 V DC 85 mA | [Us] rated supply voltage | 24 V |
Specifications may be subject to change without notice
