Product Model

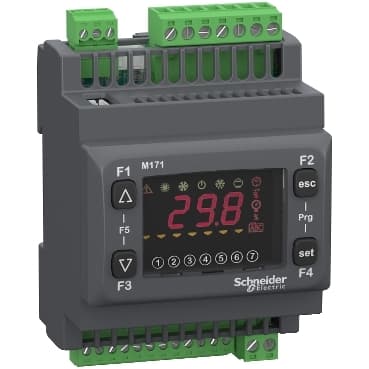

TM171OD14R
Selling Points
- 1High-performance power module for demanding industrial applications.
- 2Reliable operation with advanced thermal management.
- 3Compact design for easy integration into existing systems.
- 4Compatible with a wide range of voltage and current requirements.
- 5Enhanced safety features for reduced risk of electrical shock.
Technical Specifications
Detailed engineering parameters based on manufacturer documentation
| Parameter | Value | Parameter | Value |
|---|---|---|---|
Range of Product | Modicon M171/M172 | Product or Component Type | Controller |
Product Specific Application | HVAC and pumping solution | Variant | Programmable |
Total inputs/outputs | 14 | Discrete input number | 2 |
Discrete output number | 3 relay outputs SPST with same common<br />1 relay outputs SPDT with same common | Discrete output current | 2 A relay |
Analogue input number | 2 configurable<br />3 analog input NTC | Analogue output number | 2 voltage 0...10 V<br />2 PWM/PPM 20 kHz, 12 V, 35 mA<br />1 current 0...20 mA/4...20 mA |
Number of port | 1 LAN expansion bus | Input/output number | 5 analog output<br />4 digital output<br />5 analog input |
Discrete input logic | Sink or source (positive/negative) | Contacts usage | Volt-free contacts |
Analogue input type | voltage 0...5 V ratiometric)<br /> voltage 0...10 V<br />NTC temperature probe - 50...100 °C 0.1 °C<br />Pt 1000 temperature probe - 50...400 °C 0.1 °C<br /> current 0...20 mA/4...20 mA<br /> voltage 0...1 V | Sensor power supply | 12 V DC 85 mA |
[Us] rated supply voltage | 100...240 V | Width | 2.8 in (70.2 mm) |
Height | 3.4 in (87 mm) | Depth | 2.4 in (61.6 mm) |
Net Weight | 0.42 lb(US) (0.19 kg) |
Specifications may be subject to change without notice
